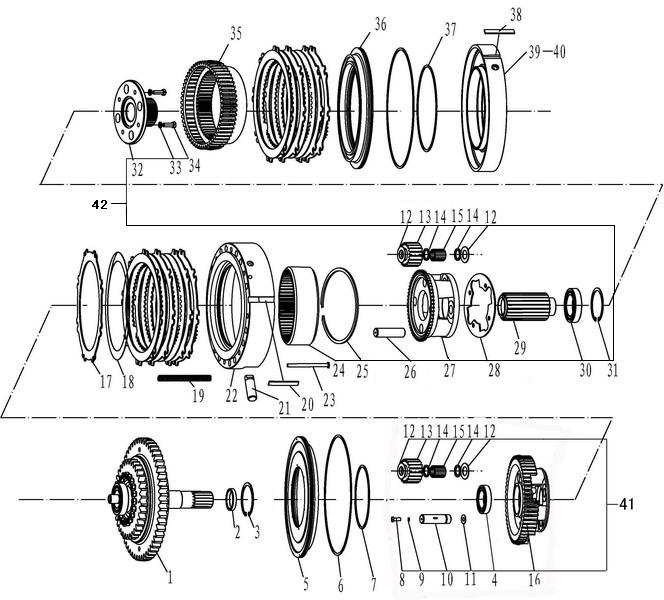

| Key | Part No. | Description | Spare parts Y/N | Qty |
| 1 | 7200000462 | AXIS ASSEMBLY | Y | 1 |
| 2 | 3030900168 | ISOLATED BUSHING | Y | 1 |
| 3 | 4015000017 | RIONG SNAP GB893.1-90-65Mn | N | 1 |
| 4 | 4021000011 | BALL BEARIN GB276-6010 | Y | 2 |
| 5 | 3030900139 | PISTION | Y | 1 |
| 6 | 3030900143 | EXTERNAL SEAL RING | Y | 2 |
| 7 | 3030900163 | INTERNAI SEAL RING | Y | 1 |
| 8 | 3030900170 | BOLT M8*14 | Y | 4 |
| 9 | 4015000036 | WASHER GB93-8-65Mn | N | 4 |
| 10 | 3030900160 | REVERSE PLANET SPINDLE | Y | 4 |
| 11 | 3030900162 | STOP WASHER | Y | 4 |
| 12 | 3030900147 | SPACER | Y | 16 |
| 13 | 3030900148 | PLANET | Y | 8 |
| 14 | 3030900154 | RIONG SNAP | Y | 16 |
| 15 | 4090000001 | ROLLER GB309-4*35-GCr15 | Y | 176 |
| 16 | 3030900171 | CARRIER OF REVERSE ASS’Y | Y | 1 |
| 17 | 3030900140 | REVERSE FIRST SPEED DRIVEN DISK | Y | 8 |
| 18 | 2030900028 | REVERSE FIRST SPEED DRIVE DISK | Y | 8 |
| 19 | 3030900141 | SPRING | Y | 15 |
| 20 | 3030900176 | PIN | Y | 8 |
| 21 | 3030900161 | ROUND PIN | Y | 1 |
| 22 | 2030900029 | ISOLATED BRACKET | Y | 1 |
| 23 | 3030900142 | SPRING PIN | Y | 15 |
| 24 | 3030900158 | REVERSE RANGE GEAR-RING | Y | 1 |
| 25 | 3030900156 | RIONG SNAP | Y | 1 |
| 26 | 3030900149 | FIRST SPEED PLANET SPINDLE | Y | 4 |
| 27 | 3030900151 | CARRIER OF THE FIRST RANGE PLANET GEAR | Y | 1 |
| 28 | 3030900150 | LOCK PLATE | Y | 1 |
| 29 | 3030900153 | GEAR-SUN | Y | 1 |
| 30 | 4021000019 | BEARING GB276-6210N | Y | 1 |
| 31 | 4015000024 | RETAINNER RING GB894.1-90-65Mn | N | 1 |
| 32 | 3030900152 | CONNECTING DISH FOR THE DIRECT RANGE | Y | 1 |
| 33 | 4015000026 | WASHER GB93-12-65Mn | N | 4 |
| 34 | 4011000125 | BOLT GB5786-M12*1.25*35EpZn-8.8 | N | 4 |
| 35 | 3030900172 | INTERNAL GEAR-RING ASSEMBLY FOR FIRST RANGE | Y | 1 |
| 36 | 3030900144 | FIRST RANGE PISTION | Y | 1 |
| 37 | 3030900113 | SEALING RING | Y | 1 |
| 38 | 3030900159 | MOUNTING PLATE | Y | 1 |
| 39 | 3030900145 | CYLINDER-HOUSING FOR THE FIRST RANGE | Y | 1 |
| 40 | 3030900146 | SQUARE SEAL | Y | 1 |
| 41 | 7200000115 | REVERSING PLANET CARRIER ASSENBLY | Y | 1 |
| 42 | 7200000114 | ONE STEP PLANET CARRIER ASSENBLY | Y | 1 |
