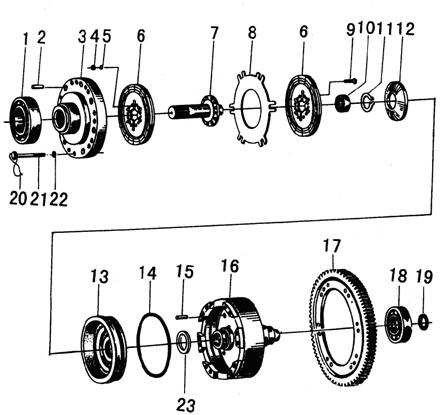

| Key |
Part No. |
Description |
Spare parts Y/N |
Qty |
| 1 |
4021000015 |
BALL BEARING GB276-6022 |
Y |
1 |
| 2 |
3030900112 |
PIN |
Y |
6 |
| 3 |
3030900103 |
BACK DISK FOR THE SECOND SPEED |
Y |
1 |
| 4 |
4013000162 |
NUT GB6170-M8-8 |
N |
12 |
| 5 |
4015000036 |
WASHER GB93-8-65Mn |
N |
12 |
| 6 |
2030900020 |
DRIVE DISK ASS’Y FOR THE SECOND SPEED |
Y |
2 |
| 7 |
3030900104 |
SHAFT FOR THE SECOND SPEED |
Y |
1 |
| 8 |
3030900106 |
DRIVEN DISK FOR THE SECOND SPEED |
Y |
1 |
| 9 |
4011000105 |
BOLT GB5783-M8*20EpZn-8.8 |
N |
12 |
| 10 |
4021000016 |
BALL BEARING GB276-6204 |
Y |
1 |
| 11 |
4015000023 |
RIONG SNAP GB894.1-65-65Mn |
N |
1 |
| 12 |
3030900114 |
DISH SPRING |
Y |
1 |
| 13 |
3030900107 |
PISTION |
Y |
1 |
| 14 |
3030900113 |
SEALING RING |
Y |
1 |
| 15 |
3030900115 |
PIN |
Y |
3 |
| 16 |
3030900109 |
CYLINDER ASS’Y FOR THE SECOND SPEED |
Y |
1 |
| 17 |
3030900108 |
OUTPUT GEAR OF THE INTER-SHAFT |
Y |
1 |
| 18 |
4021000024 |
BALL BEARING GB276-6312 |
Y |
1 |
| 19 |
3030900111 |
SEAL |
Y |
1 |
| 20 |
4090000011 |
STEEL WIRE GB343-1.2*1200-SZ |
Y |
1 |
| 21 |
3030900105 |
BOLT M12X1.25X100 |
Y |
12 |
| 22 |
4015000026 |
WASHER GB93-12-65Mn |
N |
12 |
| 23 |
3030900110 |
SEAL |
Y |
1 |
