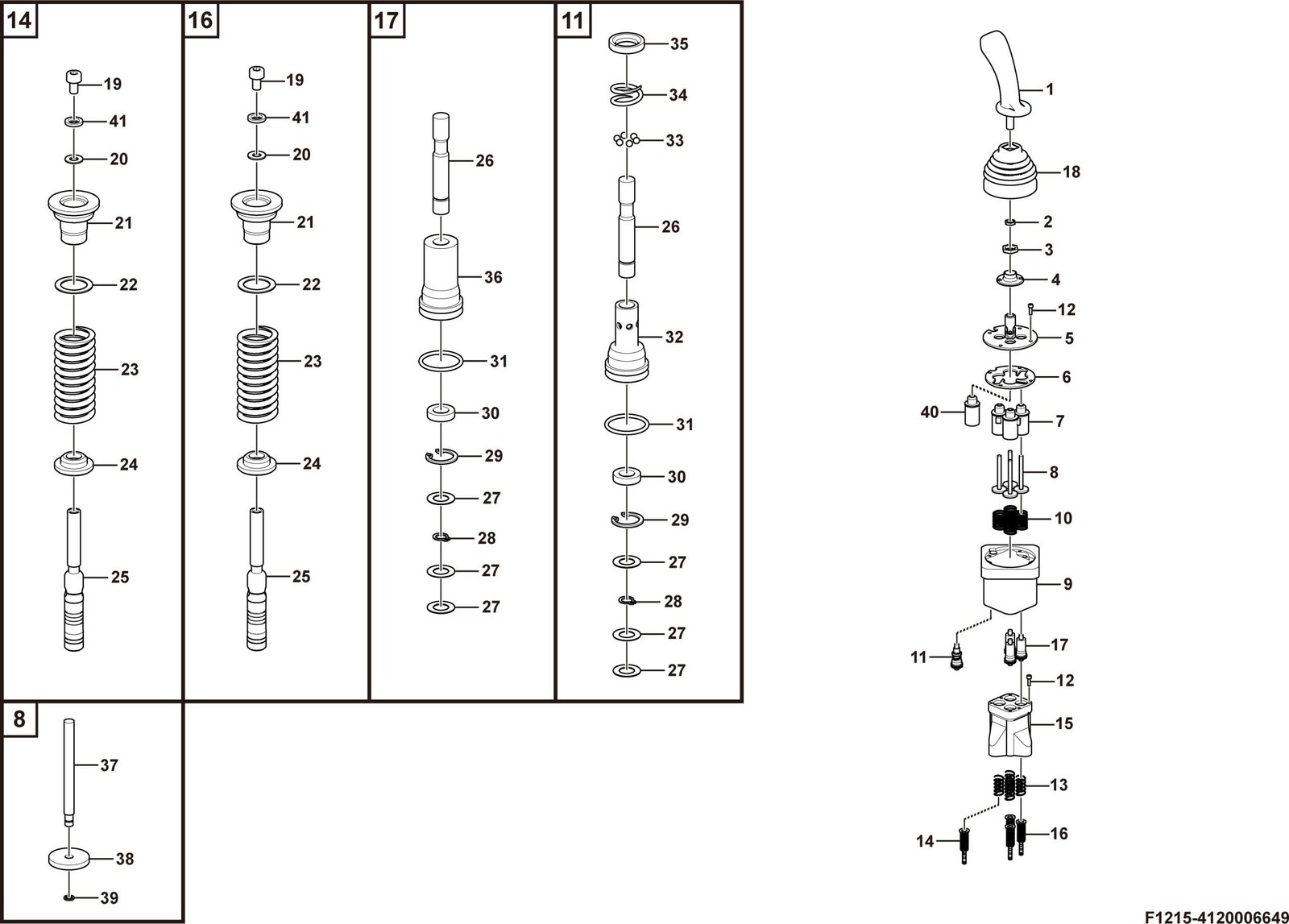

LG958F Implement hydraulic system PCL403-35-B（370142） Control lever assembly

Key	Part No.	名称	Description	Spare parts Y/N	Qty
1	4120006649001	手柄总成2022000203	Control handle	N	1
2	4013000271	P-螺母GB6172.1-M14EpZn-05	Nut gb6172.1-m14epzn-05	Y	1
3	4120006649002	螺母M202022000209	Nua	Y	1
4	4120006649003	压盘2022000205	Press plate	Y	1
5	4120006649004	枢轴总成2022000210	Pivot attachment	Y	1
6	4120006649005	托板2022000217	Plate	Y	1
7	4120006649006	螺线管总成2022000218	Solenoid	N	3
8	4120006649007	顶杆总成2022000223	Roof member	Y	4
9	4120006649008	上阀体2022000227	Valve body	Y	1
10	4120006649009	复位弹簧Ⅰ2022000228	Spring	Y	4
11	4120006649010	柱塞总成A2022000229	Tubular stay	N	1
12	4014000170	螺钉GB70.1-M5*16EpZn-8.8	Screw	Y	8
13	4120006649011	复位弹簧Ⅱ2022000236	Spring	Y	4
14	4120006649012	阀杆总成A2022000237	Valve spindle	N	1
15	4120006649013	下阀体2022000201	Valve body	Y	1
16	4120006649014	阀杆总成BCD2022000202	Valve spindle	N	3
17	4120006649015	柱塞总成BCD2022000247	Tubular stay	N	3
18	4120006649016	防尘套2022000207	Casing	N	1
19	4014000324	P-螺钉GB70.1-M3*5EpZn-10.9	Screw gb70.1-m3*5epzn-10.9	Y	4
20	4120006649017	调整垫圈2022000241	Adjusting washer	Y	4
21	4120006649018	弹簧座2022000238	Spring seat	Y	4
22	4120006649019	调整垫圈2022000239	Adjusting washer	Y	4
23	4120006649020	调压弹簧2022000242	Spring	Y	4
24	4120006649021	弹簧座2022000243	Spring seat	Y	4
25	4120006649022	阀芯2022000244	Valve spindle	Y	4
26	4120006649023	推杆2022000230	Push rod	Y	4
27	4120006649024	调整垫片2022000235	Adjusting washer	Y	4
28	4015000342	挡圈GB896-6-65Mn	Retaining ring	N	4
29	4015000341	P-挡圈GB893.1-15-65Mn	Check ring gb893.1-15-65mn	Y	4
30	4120003968	密封圈C1 0074 N3571	Lock ring c1 0074 n3571	N	4
31	4030000360	O形圈GB3452.1-19.0*1.80G	O-ring	Y	4
32	4120006649025	浮动联套筒2022000231	Valve housing	Y	1
33	4021000242	钢球GB308-3.175-GCr15	Steel ball gb308-3.175-gcr15	Y	6
34	4120006649026	定位弹簧2022000233	Spring	Y	4
35	4120006649027	卡环2022000232	Lock ring	Y	4
36	4120006649028	套筒2022000248	Valve housing	Y	3
37	4120006649029	滑杆2022000224	Push rod	Y	4
38	4120006649030	衔铁2022000225	Round iron	Y	4
39	4120006649031	轴用钢丝挡圈2022000226	Lock ring	Y	4
40	4120006649032	螺线管2022000245	Solenoid	N	1
41	4120006649033	垫片2022000240	Washer	Y	4
