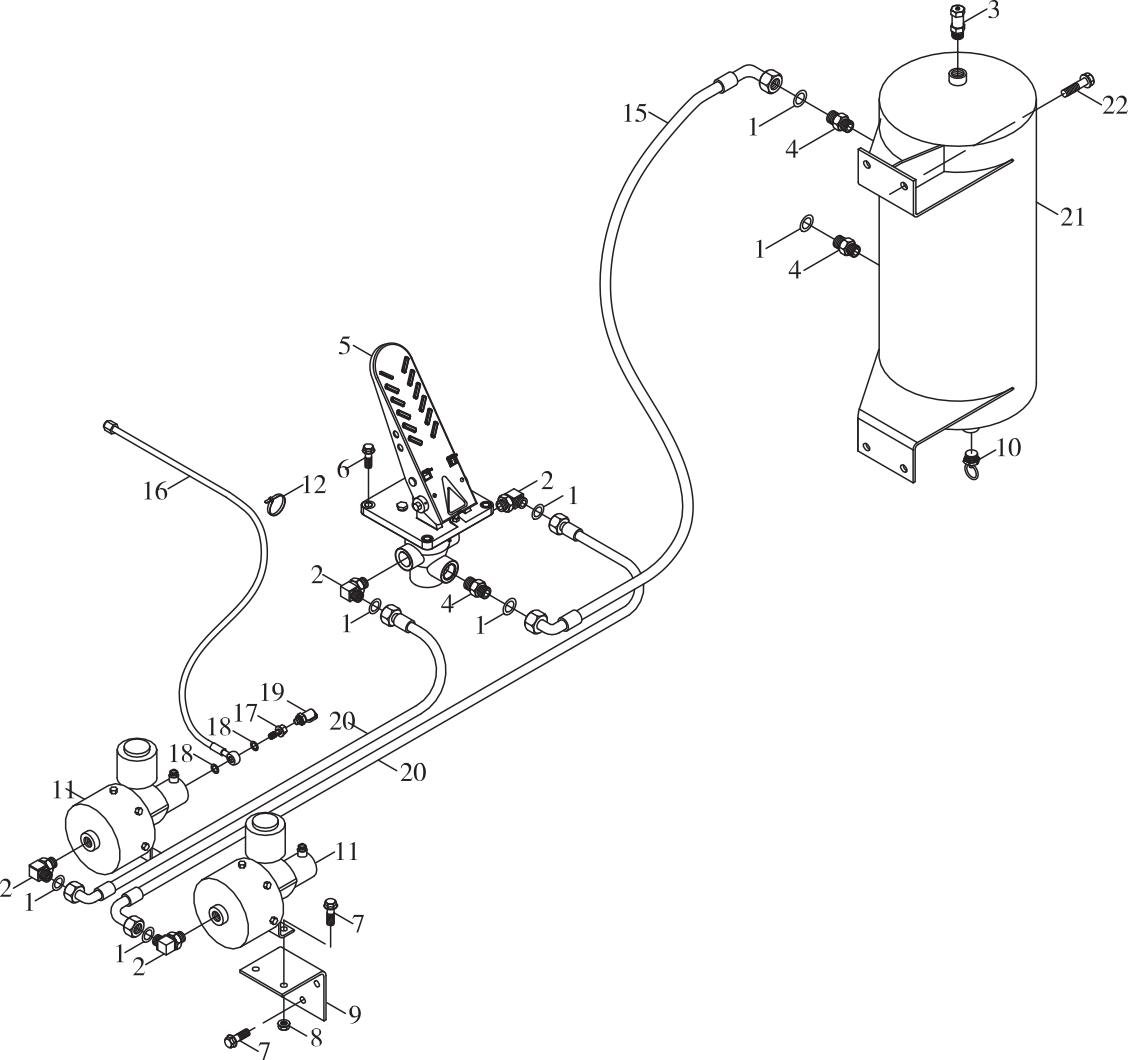

FL360F 9D650–36A000000B0 Brake control system

No.	Code	Description	Quantity
1	GBT3452.1–13.2X1.80G–70	Hydraulic pneumatic O–ring	7
2	9F850–36A100000A0	Adjustable joint	4
3	9F850–36A030000A0	Safety valve	1
4	9F850–36A000001A0	Transit joint	3
5	9F550–36A050000B0	Foot brahe valve	1
6	GBT16674.1–M8X25–8.8–A2L	Hex flange bolt	4
7	GBT16674.1–M12X25–8.8–A2L	Hex flange bolt	10
8	GBT6177.1–M12–8–A3L	Hex flange nut	4
9	9D650–36A030000A0	Compressor brachet	2
10	9F850–36A040000A0	Uater bleeding valve	1
11	9D650–36A020000A0	Air compressor	2
12	9F850–62A000001A0	Loch cable ties ZD200X5	2
15	QLUZG070.2–0061300	Hose assembly	1
16	9D650–36A070000A0	Front compressor brahe pipe	1
17	9D652–36A000001A0	Articulation joint	1
18	9D550–36B000001A0	Compound seal wasker	2
19	9F653–36A130000A0	Pressure measuring joint	1
20	QLUZG070.3–0061080	Hose assembly	2
21	9D650–36A010000A0	Air kolder	1
22	GBT16674.1–M12X20–8.8–A2L	Hex flange bolt	4
