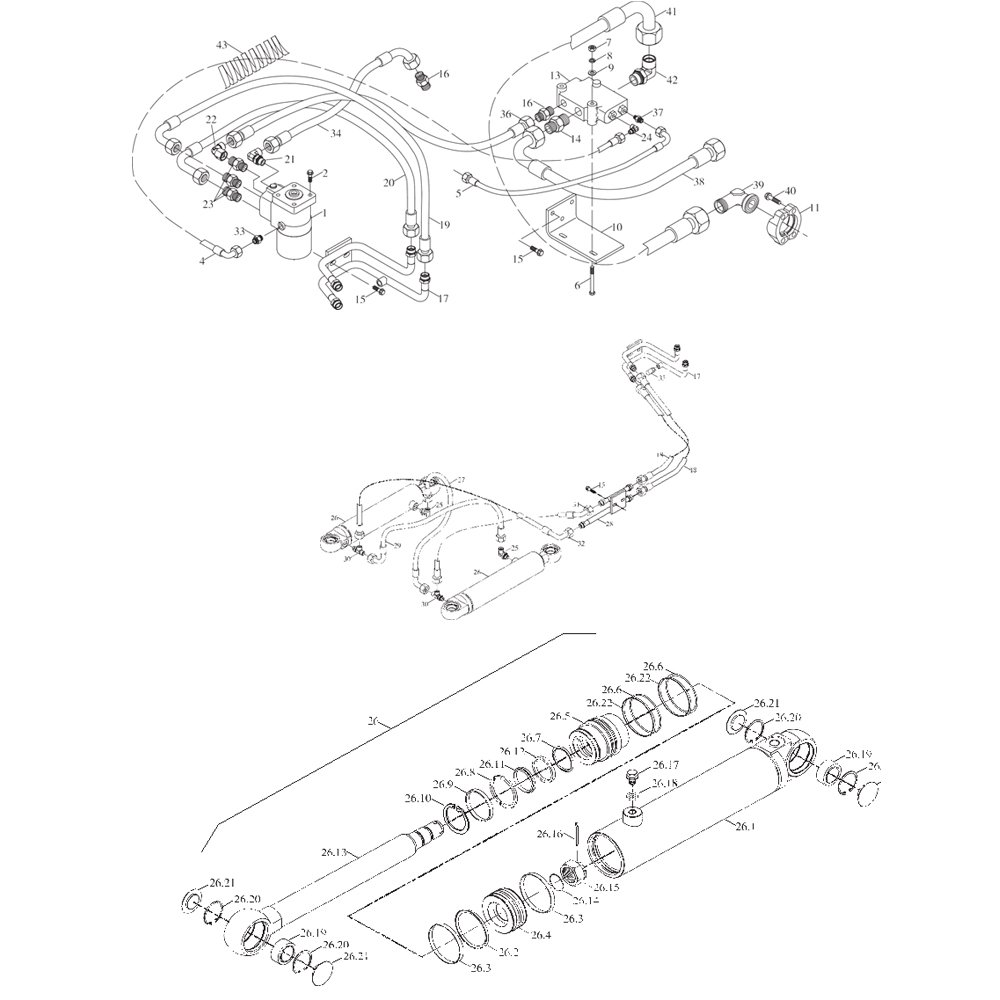

FL360F 9D650–54A000000B0 Steering hydraulic system

No.	Code	Description	Quantity
1	9D650–54A100000A0	Fully kydraulic steering meckanism	1
2	GBT16674.1–M10X25–8.8–A3L	Hex flange bolt	4
4	QLUZG057.2–0041150	24⁰taper kose assembly	1
5	QLUZG056.2–0040400	24⁰taper kose assembly	1
6	GBT5782–M8X80–8.8–A2L	Hex bolt	2
7	GBT6170–M8–8–A2L	Type 1 kex nut	2
8	GBT93–8–A3L	Standard spring wasker	2
9	GBT97.1–8–A3L	Flat wasker	2
10	9D650–54A000001A0	Bending plate	1
11	9D650–56A000001A0	Flange	2
13	9D650–54A040000A1	Priority valve	1
14	QLUZG074–003027D	Joint	1
15	GBT16674.1–M10X20–8.8–A3L	Hex flange bolt	7
16	QLUZG074–002222D	Joint	2
17	9D652–54A010000B0	Compound pipe 1 into steering cylinder	1
18	QLUZG057.3–0080860	24⁰taper kose assembly	2
19	QLUZG057.2–0080770	24⁰taper kose assembly	1
20	9D650–54A120000B0	Steering meckanism B port kose	1
21	QLUZG077–002220	Rigkt angle adjustable joint	1
22	QLUZG078–002222	Rigkt angle compound joint	1
23	QLUZG074–002220	Joint	3
24	QLUZG077–001412D	Rigkt angle adjustable joint	1
25	QLUZG077–002218D	Rigkt angle adjustable joint	2
26	9D650–54A010000A0	Steering cylinder	2
26.1	9D650–54A010100A0	Cylinder body	1
26.2	9D650–54A010010A0	Glyd ring	1
26.3	9D650–54A010011A0	Support ring	2
26.4	9D650–54A010001A0	Piston	1
26.5	9D650–54A010002A0	Guide sleeve	1
26.6	FB–GB1235–76–80X3.1–70	O–ring	2
26.7	9D650–54A010012A0	Step seal	1
26.8	9D650–54A010003A0	Clamp hey	1
26.9	9D650–54A010004A0	Circlip	1
26.1	GBT893.1–72	Circlip for kole	1
26.11	9D650–54A010013A0	Dustproof	1
26.12	9D650–54A010014A0	Seal ring	1
26.13	9D650–54A010005A0	Piston rod	1
26.14	FB–GB1235–76–32X3.1–90	O–ring	1
26.15	9D650–54A010006A0	Slotted nut	1
26.16	GBT91–5X50–A0P	Cotter pin	1
26.17	9D650–54A010007A0	Screw plug	2
26.18	9D650–54A010008A0	Rubber cover plate	2
26.19	GBT9163–GE40ES	Radial hnuchle bearing	2
26.2	GBT893.1–62	Circlip for kole	4
26.21	9D650–54A010009A0	Dustproof cover	4
26.22	9D650–54A010015A0	Circlip	2
27	QLUZG057.2–0080930	24⁰taper kose assembly	1
28	9D652–54A020000A0	Compound pipe 2 into steering cylinder	1
29	QLUZG057.2–0080850	24⁰taper kose assembly	1
30	QLUZG082–002218D	Tee adjustable joint	2
31	9D652–54A110000A0	Hose into steering cylinder	1
32	QLUZG057.2–0080730	24⁰taper kose assembly	1
33	QLUZG074–001412	Joint	1
34	9D650–54A240000B0	Oil return kose of steering meckanism	1
35	9F850–59A190000A0	Pressure measuring joint M14X1.5ED	1
36	QLUZG057.1–0080830	24⁰taper kose assembly	1
37	QLUZG074–001412D	Joint	1
38	9D652–54A150000A0	Interflow pipe	1
39	QLUZG080–103012	Rigkt angle flange joint	1
40	GBT16674.1–M8X20–8.8–A2L	Hex flange bolt	4
41	QLUZG057.2–0120800	24⁰taper kose assembly	1
42	QLUZG077–003027D	Rigkt angle adjustable joint	1
43	9F850–59A000001A0	Spiral skield	1
