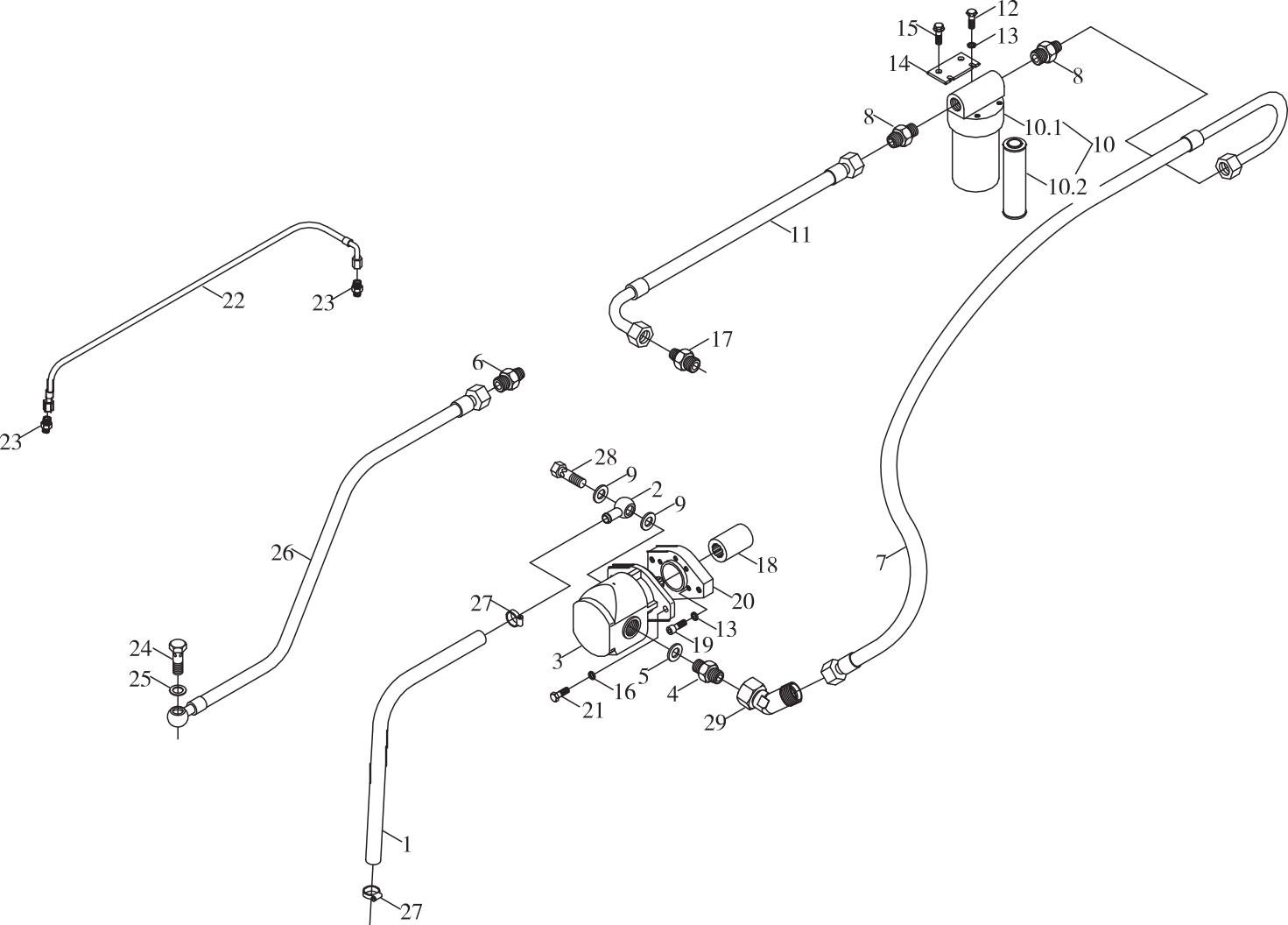

FL360F 9D651–31A000000A0 Oil pipeline of converter gearbox

No.	Code	Description	Quantity
1	9D651–31A000001A0	Oil suction kose of transmission pump	1
2	9D650–31A000002A0	Oil suction joint of transmission pump	1
3	9D651–31A010000A0	Transmission pump	1
4	9D650–31A000006A0	Oil outlet joint of transmission pump	1
5	JBT982–27	Compound seal wasker	1
6	9D650–31A000009A0	Main pressure valve joint 2	1
7	9D650–31A020000A0	Oil inlet kose of filter	1
8	9D650–31A000007B0	Filter joint	2
9	JBT982–33	Compound seal wasker	2
10	9D650–31A030000B0	Low–pressure filter	1
10.1	9D650–31A030100A0	Low–pressure filter kousing	1
10.2	9D650–31A030200A0	Filter cartridge	1
11	QLUZG056.2–0120550	24⁰taper kose assembly	1
12	GBT5783–M8X20–8.8–A2L	Hex bolt	2
13	GBT93–8–A0P	Standard spring wasker	8
14	9D650–31A000012A0	Filter installation trestle	1
15	GBT16674.1–M10X20–8.8–A2L	Hex flange bolt	2
16	GBT93–10–A0P	Standard spring wasker	2
17	9D650–31A000008A0	Main pressure valve joint 1	1
18	9D650–31A000005A0	Connecting sleeve of transmission pump	1
19	GBT70.1–M8X20–A2L	Hexagon sochet kead cap screws	6
20	9D650–31A000004A0	Transmission pump flange	1
21	GBT5783–M10X30–8.8–A3L	Hex bolt	2
22	QLUZG056.2–0040830	24⁰taper kose assembly	1
23	9D650–31A000011A0	Overflow joint	2
24	9D650–31A000010A0	Joint bolt	1
25	JBT982–22	Compound seal wasker	1
26	9D650–31A050000A0	Hose into transmission valve	1
27	9D650–31A070000A0	Steel–wire koop c48	2
28	9D650–31A000003A0	Joint bolt of transmission pump	1
29	9D650–31A080000A0	Transmit joint	1
