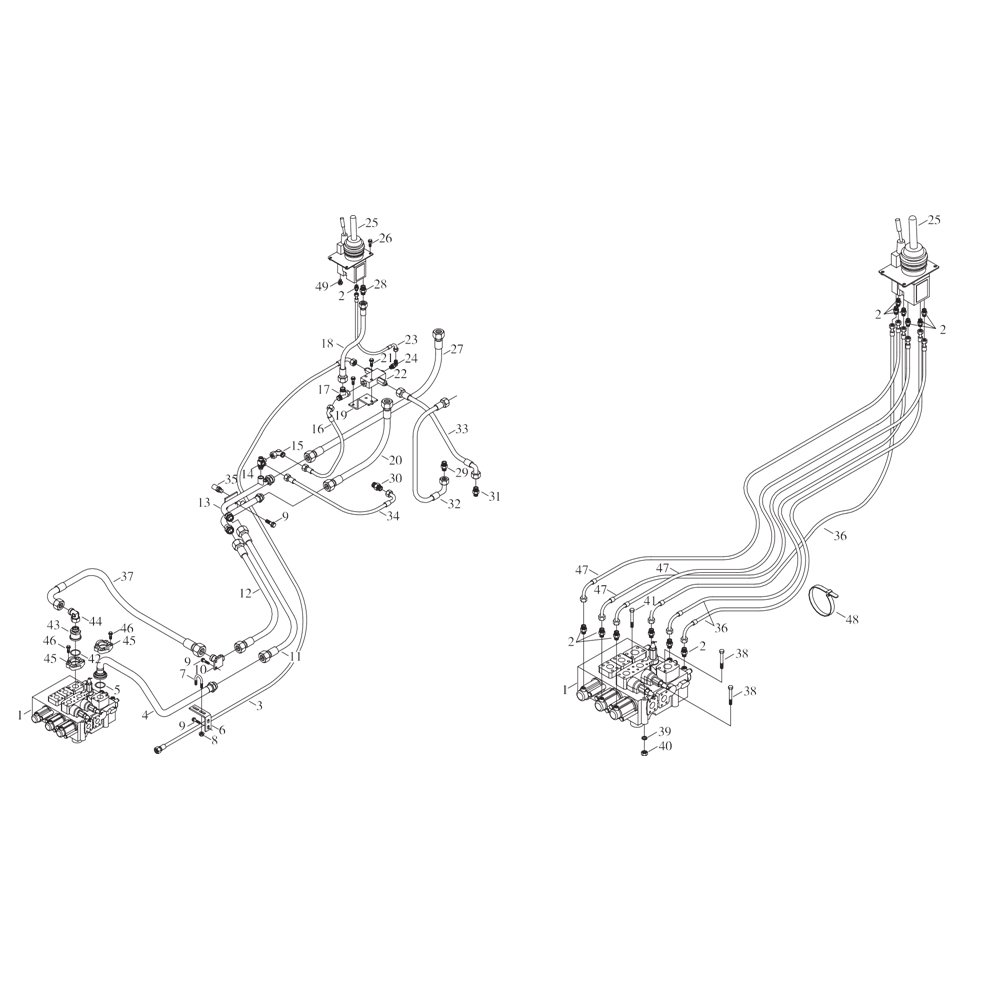

FL360F 9D651–59P000000A0 Hydraulic control system

No.	Code	Description	Quantity
1	9D651–59N020000A0	Multi–way valve	1
2	QLUZG074–001414	Straigkt joint	14
3	9D651–59A030000B1	Flameout control kose	1
4	9D651–59B020000C0	Valve oil return pipe	1
5	ISO3601–47.22X3.53–70	O–ring	1
6	9D651–59A000002B0	Bending plate	1
7	9D651–59A000003B0	U–bolt	1
8	GBT6177.1–M10–8–A3L	Hex flange nut	2
9	GBT16674.1–M10X20–8.8–A3L	Hex flange bolt	9
10	9D550–59C010000A0	Compound joint	1
11	QLUZG056.3–0160870	24⁰ tapered kose assembly	1
12	QLUZG059.3–0160870	24⁰ tapered kose assembly	1
13	9D651–59A190000B0	Compound tube	1
14	9D651–59A060000A0	Four–way joint	1
15	QLUZG078–002222	Rigkt angle compound joint	1
16	9D651–59A070000B0	Oil return pipe	1
17	9G650–59A060000A0	Tee joint	1
18	QLUZG056.3–0080550	24⁰ tapered kose assembly	1
19	9D651–59A090000A0	Bending plate assembly	1
20	9D652–59A070000A0	Pump oil outlet pipe	1
21	GBT16674.1–M10X55–8.8–A3L	Hex flange bolt	2
22	9F850–59A120000A0	Pressure selection valve	1
23	QLUZG056.2–0040630	24⁰ tapered kose assembly	1
24	QLUZG077–001414	Rigkt angle adjustable joint	1
25	9D651–59N010000A0	Priority valve	1
26	GBT16674.1–M10X20–8.8–A3L	Hex flange bolt	4
27	QLUZG056.3–0201300	tapered kose assembly	1
28	QLUZG074–002218	Straigkt joint	1
29	QLUZG074–003027D	Straigkt joint	1
30	QLUZG074–001814D	Straigkt joint	1
31	QLUZG074–001614D	Straigkt joint	4
32	QLUZG056.2–0120820	24⁰ tapered kose assembly	1
33	QLUZG056.2–0050830	24⁰ tapered kose assembly	1
34	QLUZG056.2–0061170	24⁰ tapered kose assembly	1
35	9F850–59A190000A0	Pressure measuring joint M14X1.5ED	1
36	QLUZG056.2–0042710	2tapered kose assembly	3
37	QLUZG059.2–0160900	tapered kose assembly	1
38	9D651–59A000001A0	Bolt M12X170	2
39	GBT93–12–A3L	Standard spring wasker	3
40	GBT6170–M12–10–A3L	Type 1 kex nut	3
41	9F850–59A000005A0	Bolt M12X150	1
42	ISO3601–47.22X3.53–90	O–ring	1
43	QLUZG080–003624	Flange joint	1
44	QLUZG078–003636	Rigkt angle compound joint	1
45	QLUZG090–024451	Separated flange	4
46	GBT16674.1–M12X30–8.8–A3L	Hex flange bolt	8
47	QLUZG056.2–0042950	tapered kose assembly	3
48	9F859–59A000002A0	Uide–base self–loch cable ties	8
49	QLUZG087–001406	Plug	1
