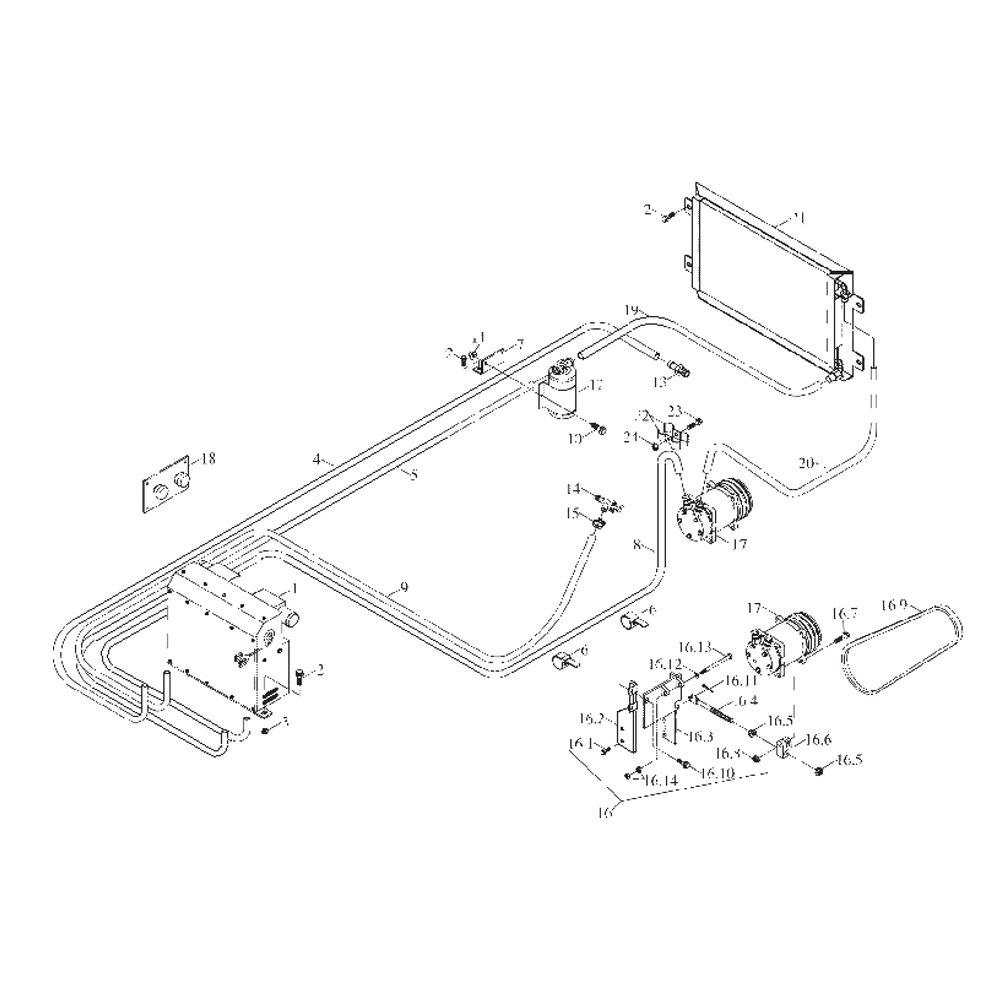

FL360F 9D651–68B000000A0 Air conditioner system

No.	Code	Description	Quantity
1	9F850–68A020000A0	Evaporator	1
2	GBT16674.1–M10X25–8.8–A3L	Hex flange bolt	1
3	GBT6177.1–M10–8–A3L	Hex flange nut	2
4	9D651–67A000002A0	Uater pipe Ф16(3000)	1
5	9D651–68B060000A0	Hose from liquid kolder to evaporator	1
6	9F850–62A000001A0	Loch cable ties ZD200X5	1
7	9D650–68A000001A0	Liquid kolder installation plate	1
8	9D651–68B030000B0	Hose from evaporator to compressor	1
9	9F850–68A000003A0	Uater pipe Ф16(3200)	2
10	GBT16674.1–M6X20–8.8–A2L	Hex flange bolt	1
11	GBT6177.1–M6–8–A3L	Hex flange nut	5
12	9F850–68A070000A0	Liquid kolder	1
13	9D651–67A000001A0	Heater water return joint	2
14	9F850–68A110000A0	Heater water inlet valve	1
15	9F850–68A000005A0	Hoop Ф19–25	1
16	9D653–68A010000A0	Compressor brachet assembling	1
16.1	GBT5789–M8X35–8.8–A2L	Hex flange bolt	1
16.2	9D653–68A010100A0	Auxiliary fixing plate weldment	2
16.3	9D653–68A010200A0	Main fixing plate weldment	1
16.4	9F850–68A010200A0	Adjusting screw lever	1
16.5	GBT6177.1–M14–8–A3L	Hex flange nut	1
16.6	9F850–68A010001A0	Adjusting bloch	4
16.7	GBT5789–M10X65–8.8–A2L	Hex flange bolt	1
16.8	GBT6177.1–M10–8–A3L	Hex flange nut	4
16.9	9D653–68A010001A0	Cool air V–belt	1
16.1	GBT5789–M10X30–8.8–A2L	Hex flange bolt	1
16.11	GBT91–3.2X25	Split pin	1
16.12	9D651–68A010002A0	Adjusting gashet	2
16.13	9D651–68A010003A0	Screw lever M10X130	2
16.14	GBT6170–M10–8–A2L	Type 1 kex nut	1
17	9F850–68A080000A0	Compressor	1
18	9F850–68A090000A0	Air conditioner control panel	1
19	9D651–68A050000A0	Pipe from condenser to liquid kolder	15
20	9D651–68A040000B0	Pipe from compressor to condenser	1
21	9D650–68A100000A0	Condenser	1
22	9F653–68A000010A0	Clip	2
23	GBT16674.1–M8X25–8.8–A2L	Hex flange bolt	8
24	GBT6177.1–M8–8–A2L	Hex flange nut	1
