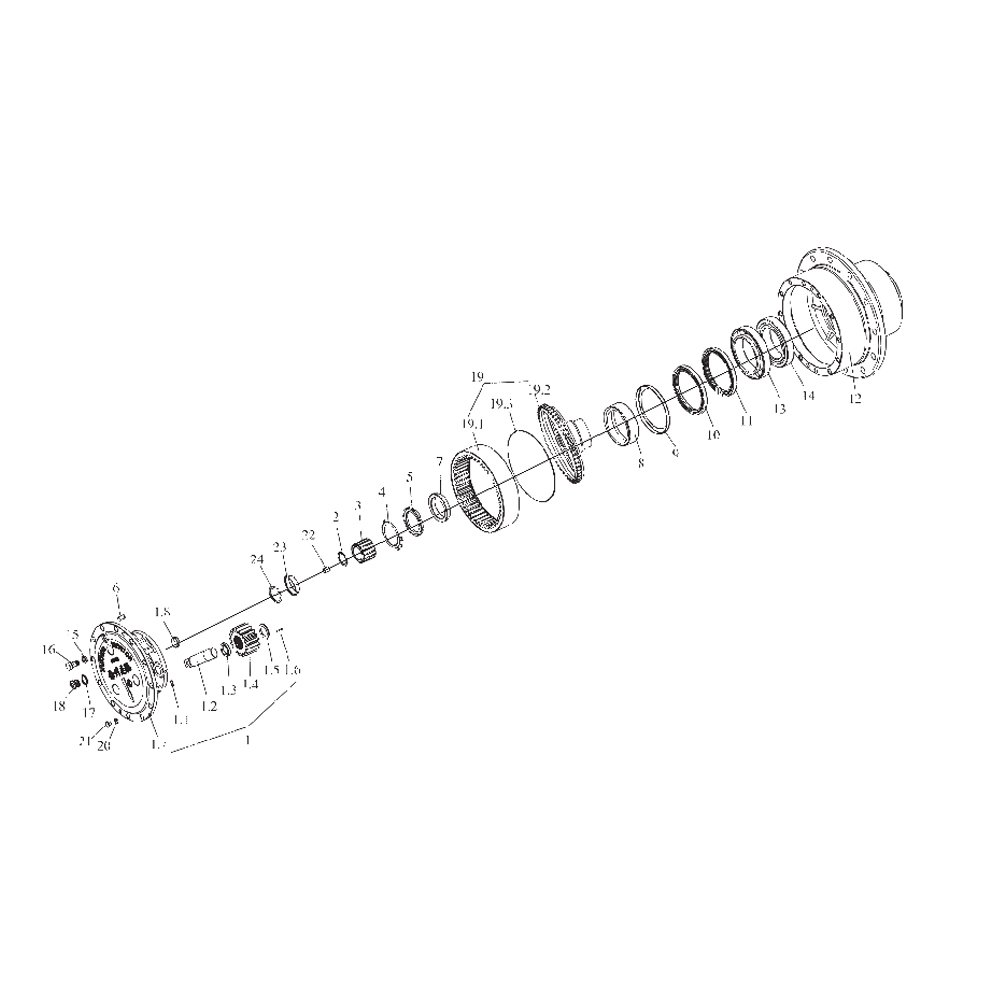

| No. | Code | Description | Quantity | |
| 1 | B00256+79900467 | Planet carrier assembly | 1 | |
| 1.1 | B00256+50160003 | Screw M8X15 | 3 | |
| 1.2 | B00256+83240205 | Planet gear skaft | 3 | |
| 1.3 | B00256+83240204 | Planet gear | 3 | |
| 1.4 | B00256+83021511 | Spacing sleeve | 3 | |
| 1.5 | B00256+83240211 | Planet gear gashet | 6 | |
| 1.6 | B00256+54400006 | Rolling needle 6X21.8 | 126 | |
| 1.7 | B00256+83240201 | Planet carrier | 1 | |
| 1.8 | B00256+83240206 |
|
1 | |
| 2 | B00256+52100009 | Circlip | 1 | |
| 3 | B00256+83240203 | Sun wkeel | 1 | |
| 4 | B00256+52060005 | Uasker 75 | 1 | |
| 5 | B00256+71270231 | Nut M75X2 | 2 | |
| 6 | B00256+51270006 | Pin 12X24 | 2 | |
| 7 | B00256+77000081 | Taper sleeve | 1 | |
| 8 | B00256+83021509 | Oil seal seat | 1 | |
| 9 | B00256+83021510 | Oil baffle | 1 | |
| 10 | B00256+53500013 | HMS4 oil seal 140X170X15 | 1 | |
| 11 | B00256+53100005 | Oil seal FB140X170X15 | 1 | |
| 12 | B00256+83240202 | Hub | 1 | |
| 13 | B00256+54100006 | Bearing 32024E | 1 | |
| 14 | B00256+54100005 | Bearing 32022 | 1 | |
| 15 | B00256+52020006 | Uasker 16 | 12 | |
| 16 | B00256+50012035 | Bolt M16X1.5X30 | 12 | |
| 17 | B00256+53200005 | Compound seal gashet 24 | 1 | |
| 18 | B00256+75500197 | Screw plug M24X1.5 | 1 | |
| 19 | B00256+83240207 | Gear ring support assembly | 1 | |
| 19.1 | B00256+83240208 | Gear ring | 1 | |
| 19.2 | B00256+83240209 | Gear ring support | 1 | |
| 19.3 | B00256+83240210 | Clamp ring | 1 | |
| 20 | B00256+53200002 | Compound seal gashet 12 | 1 | |
| 21 | B00256+75500842 | Screw plug M12X1.25X9 | 1 | |
| 22 | B00256+79605020 | Adjusting brace group | 1 1 group | |
| 23 | B00256+77000021 | Spacing sleeve | 1 | |
| 24 | B00256+79500132–134 | Adjusting gashet group | 1 1 group |
