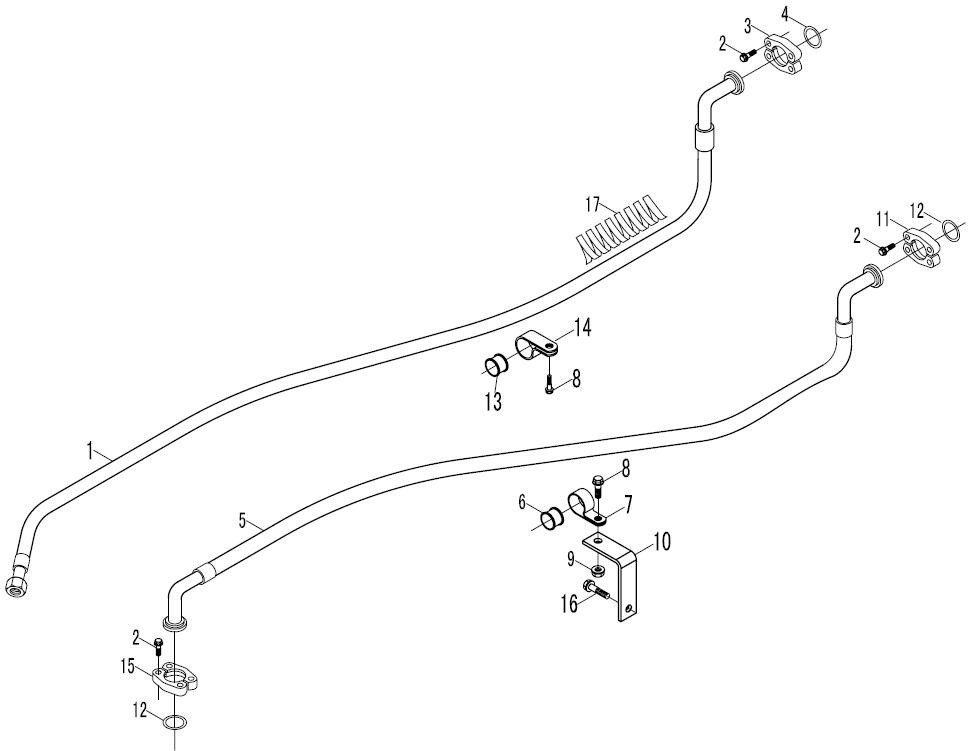

| No. | Code | Description | Quantity |
| 1 | 9F657-57A010000A0 | OIL RADIATOR INLET PIPE | 1 |
| 10 | 9F657-57A000001B0 | FIXING SEAT | 1 |
| 11 | QLWZG090-020380 | FLANGE | 2 |
| 12 | ISO3601-37.69X3.53-90 | O-RING | 2 |
| 13 | QLWZG101-00635 | CUSHION BLOCK | 1 |
| 14 | QLWZG102-00635 | PIPE CLAMP | 1 |
| 15 | QLWZG090-020381 | FLANGE | 2 |
| 16 | GBT16674.1-M12X25-8.8-A3L | BOLT | 1 |
| 17 | 9F850-59A000001A0 | JACKET | 1 |
| 17 | 9F850-59A000001A0 | JACKET | 1 |
| 2 | GBT16674.1-M10X30-8.8-A3L | BOLT | 12 |
| 3 | QLWZG090-016300 | FLANGE | 2 |
| 4 | ISO3601-32.92X3.53-90 | O-RING | 1 |
| 5 | 9F657-57A020000A0 | OIL RETURN HOSE OF OIL COOLER | 1 |
| 6 | QLWZG101-00846 | CUSHION BLOCK | 1 |
| 7 | QLWZG102-00846 | PIPE CLAMP | 1 |
| 8 | GBT16674.1-M8X20-8.8-A2L | BOLT | 2 |
| 9 | GBT6177.1-M10-8-A3L | NUT | 1 |
| 9 | GBT6177.1-M10-8-A3L | NUT | 1 |
