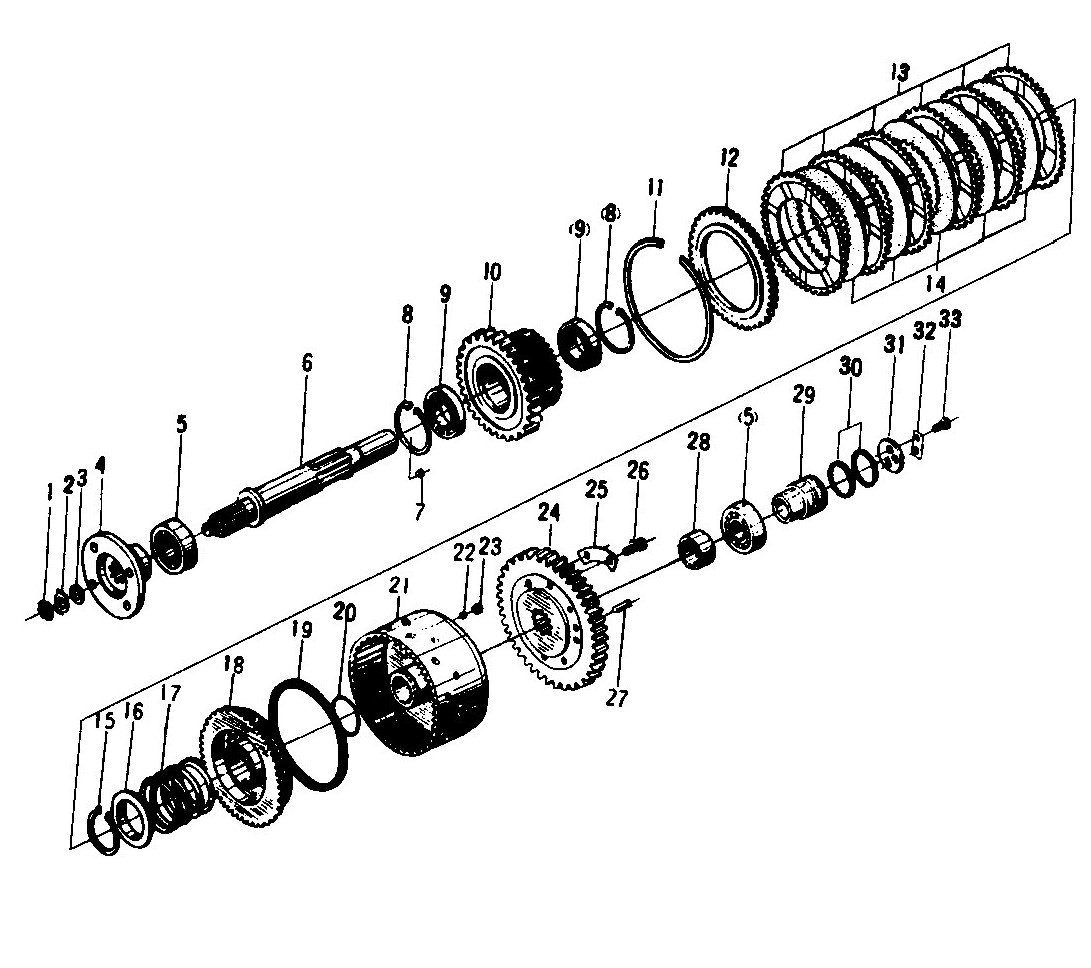

LG933 INPUT SHAFT ASSEMBLY

KEY	PART NO.	DESCRIPTION	QTY
1		ROUND NUT M20*1.5	1
2		STOP WASHER 20	1
3		WASHER 20	1
4		FLANGE ASSEMBLY	2
5		TAPER BALL BEARING 7567	2
6		INPUT SHAFT	1
7		PLUG 9	1
8		RING SNAP 75	2
9		BEARING 109	1
10		GEAR	2
11		RING SNAP	1
12		EXTERNAL COVER	1
13		EXTERNAL FRICTION BLOCK	6
14		INTERNAL FRICTION BLOCK	5
15		RINGSNAP 60	1
16		SPRING SEAT	1
17		SPRING	1
18		PISTON	1
19		OIL SEAL RING	1
20		O-RING 60*3.1	1
21		CLUTCH SUMP ASS’Y	1
22		IRONBALL 5	1
23		VALVE SEAT	1
24		GEAR	2
25		STOP SPACER	4
26		BOLT M10*25	8
27		COLUMN PIN A8*22	2
28		SHAFT BUSHING	1
29		INTERNAL OIL SEAL BUSHING	1
30		PISTON RING ф52	2
31		SHAFT PAD SNAP	1
32		STOP SPACER	1
33		HEXANGULAR BOLT M8*16	1
