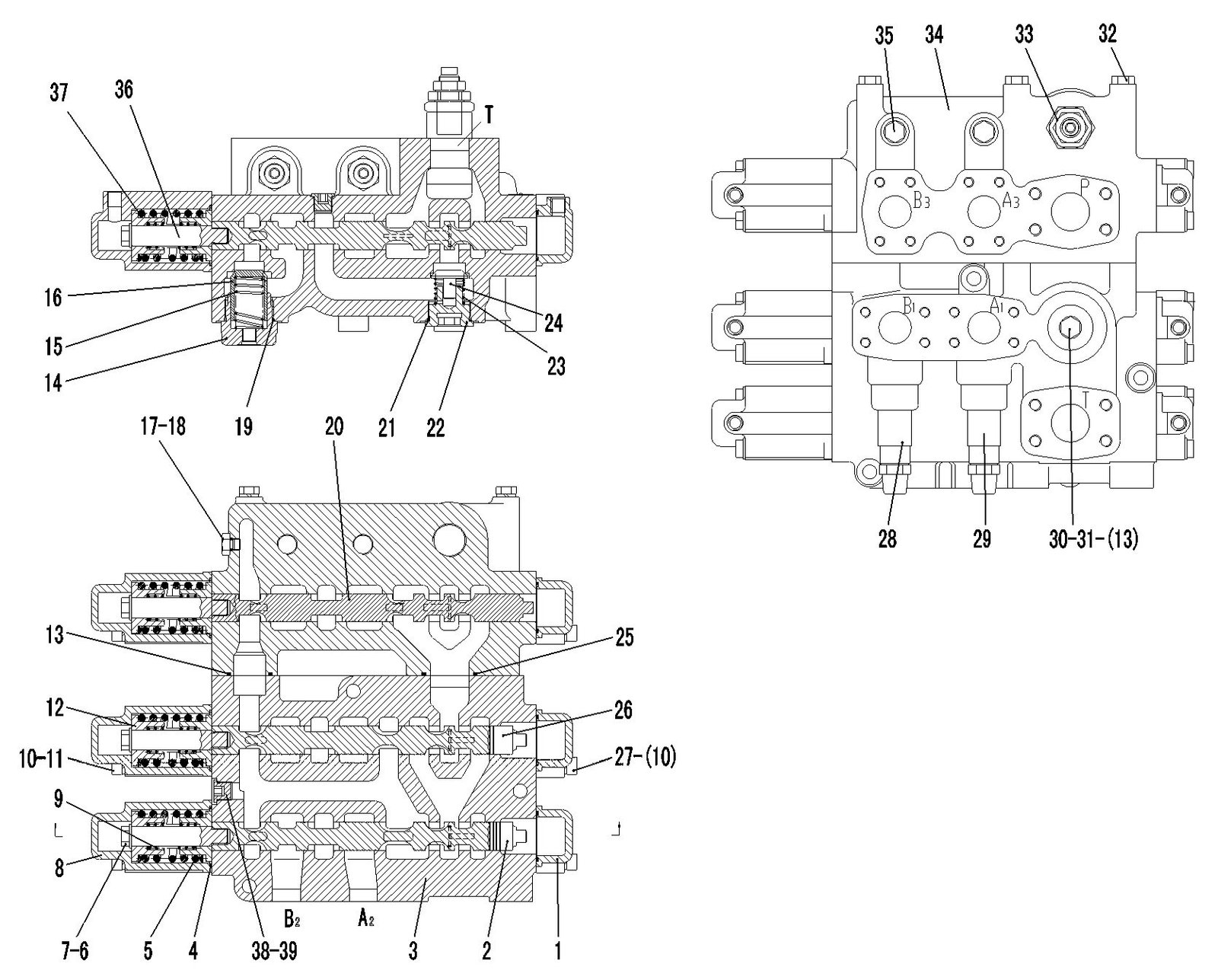

LG9378ZF IMPLEMENT HYDRAULIC SYSTEM CONTROL VALVE

Key	Part No.	Description	Spare parts Y/N	Qty
1	4120001054004	END CAP	N	3
2	4120001054005	VALVE STEM	N	1
3	4120001054006	VALVE BODY	N	1
4	4030000608	O-RING GB1235-60*3.1	Y	3
5	4120001054007	SPRING	N	3
6	4015000168	WASHER GB97.1-12EpZn-300HV	N	3
7	4011000087	BOLT GB5783-M12*20EpZn-8.8	N	3
8	4120001054009	END CAP	N	3
9	4120001054010	SPRING	N	3
10	4015000025	WASHER GB93-10-65Mn	N	12
11	4014000217	SCREW GB70.1-M10*100EpZn-8.8	N	6
12	4120001054012	SPRING SEAT	N	6
13	7200000446	O-RING	N	2
14	4120001054014	FLOAT TRAP VALVE BODY	N	1
15	4120001054015	SPRING	N	1
16	4120001054016	VALVE CORE	N	1
17	4120001054017	PLUG	N	3
18	4120001054018	O-RING 8.9*2.3	N	3
19	7200001075	O-RING 50*3.1	N	4
20	4120001054020	VALVE STEM	N	1
21	4030000706	O-RING GB1235-44*3.5	N	4
22	4120001054022	CHECK VALVE BODY	N	4
23	4120001054023	SPRING	N	4
24	4120001054024	CHECK VALVE	N	4
25	4030000707	O-RING GB1235-55*3.1	N	1
26	4120001054026	VALVE STEM	N	1
27	4014000115	SCREW GB70.1-M101.545EpZn-8.8	N	6
28	4120001054003	OVERLOAD VALVE	Y	1
29	4120001054002	OVERLOAD VALVE	Y	1
30	4120001054029	CHOKE PLUG	N	1
31	4030000149	O-RING GB1235-35*3.5	Y	1
32	4120001054030	BOLT	N	5
33	4120001054001	RELIEF VALVE	Y	1
34	4120001054031	VALVE BODY	N	1
35	4120001054032	CHOKE PLUG	N	2
36	4120001054033	VALVE STEM JOINT	N	3
37	4120001054034	ADJUSTING SHIM	N	1
38	4120002303004	PLUG D32-3	N	3
39	4030000011	O-RING GB1235-20*2.4	Y	3
