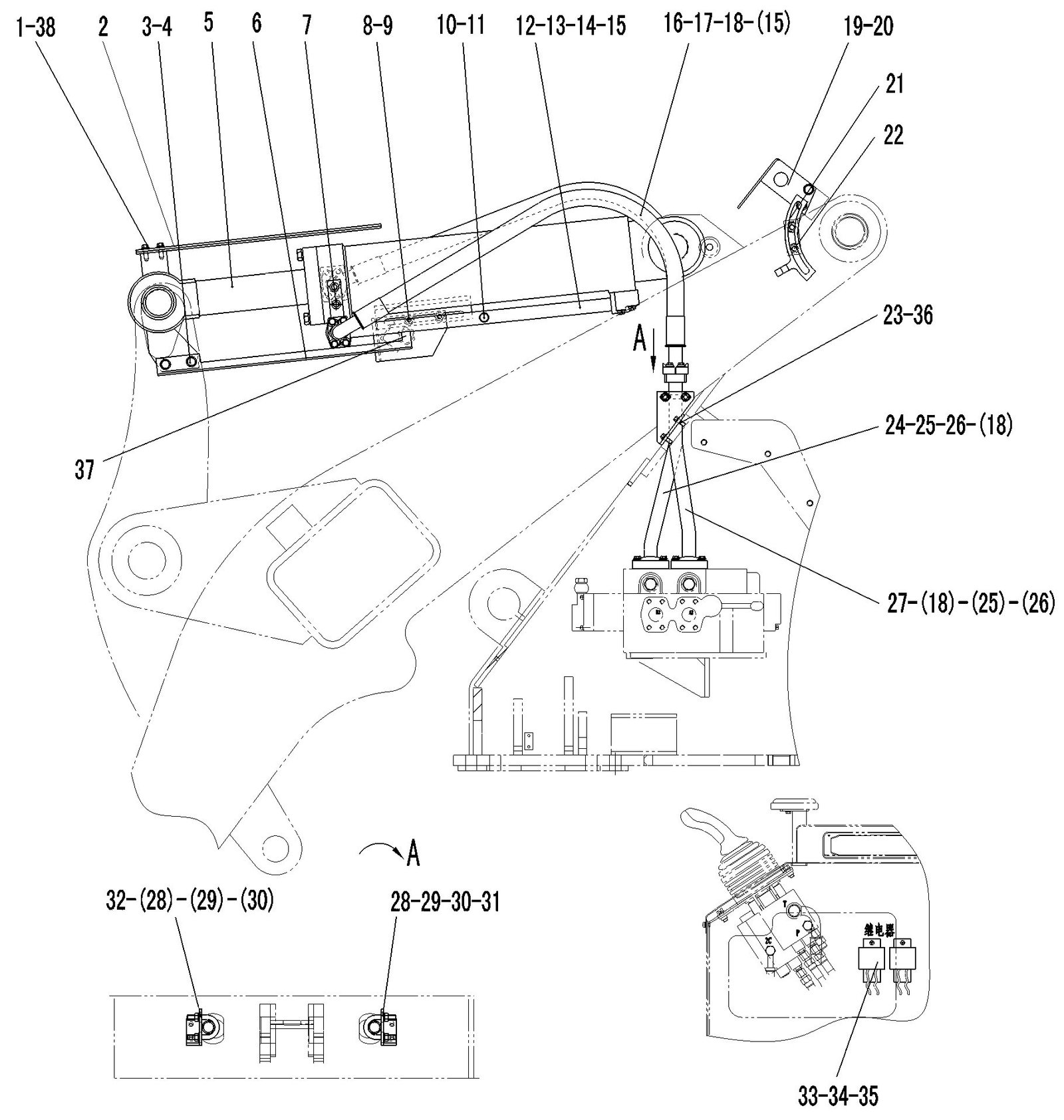

| Key | Part No. | Description | Spare parts Y/N | Qty |
| 1 | 4011000081 | BOLT GB5783-M10*20EpZn-8.8 | N | 2 |
| 2 | 29140009881 | INDICATING ROD OF BUCKET | Y | 1 |
| 3 | 4011000145 | BOLT GB16674-M14*35EpZn-8.8 | N | 2 |
| 4 | 4013000013 | NUT GB6170-M14EpZn-8 | N | 2 |
| 5 | 4120001083 | TILT CYLINDER HSGF-140*80*502-952P | Y | 1 |
| 6 | 29140008371 | INDICATION ROD OF TILT CYLINDER | Y | 1 |
| 7 | 4011000080 | BOLT GB5783-M10*16EpZn-8.8 | N | 2 |
| 8 | 29140007581 | BRACKET OF APPROACH SWITCH | Y | 1 |
| 9 | 4011000479 | BOLT GB16674-M12*30EpZn-8.8 | N | 2 |
| 10 | 4041000774 | PLUG LGN135-01422 | Y | 1 |
| 11 | 4041000767 | O-RING LGB168-11124 | Y | 1 |
| 12 | 29140008441 | BIG CHAMBER TUBE OF TILT CYLINDER | Y | 1 |
| 13 | 4011000309 | BOLT GB16674-M10*50EpZn-8.8 | N | 2 |
| 14 | 4011000473 | BOLT GB16674-M10*55EpZn-8.8 | N | 2 |
| 15 | 4030000026 | O-RING GB3452.1-32.5*3.55G | Y | 5 |
| 16 | 4041000939 | PIPE LGB106-410120 | Y | 2 |
| 17 | 4041000043 | FLANGE LGB117-310490 | Y | 4 |
| 18 | 4011000475 | BOLT GB16674-M10*30EpZn-8.8 | N | 24 |
| 19 | 29140007541 | BRACKET OF APPROACH SWITCH | Y | 1 |
| 20 | 4130000678 | APPROACH SWITCH J7-D10B1/08 | Y | 1 |
| 21 | 29140007551 | INDICATIONG PLATE OF LIFTING CYLINDER | Y | 1 |
| 22 | 4011000137 | BOLT GB16674-M12*20EpZn-8.8 | N | 4 |
| 23 | 4011000105 | BOLT GB5783-M8*20EpZn-8.8 | N | 4 |
| 24 | 29140008401 | OIL TUBE OF SMALL CHAMBEROF TILT CYLINDER | Y | 1 |
| 25 | 4030000029 | O-RING GB3452.1-37.5*3.55G | Y | 2 |
| 26 | 4041000027 | FLANGE LGB117-312551 | Y | 2 |
| 27 | 29140008411 | OIL TUBE OF BIG CHAMBEROF TILT CYLINDER | Y | 1 |
| 28 | 4015000162 | WASHER GB97.1-10EpZn-300HV | N | 8 |
| 29 | 4013000007 | NUT GB6170-M10EpZn-8 | N | 4 |
| 30 | 4011000556 | U-BOLT JB/ZQ4321-33Zn-Q235A.F | N | 2 |
| 31 | 29140004061 | STEADY REST A | Y | 1 |
| 32 | 29140004071 | STEADY REST B | Y | 1 |
| 33 | 4130000011 | MIDDLE RELAY JD2914 | Y | 2 |
| 34 | 4014000048 | SCREW GB818-M5*12EpZn-4.8 | N | 2 |
| 35 | 4015000110 | WASHER GB97.1-5EpZn-300HV | N | 2 |
| 36 | 4015000072 | WASHER GB97.1-8EpZn-300HV | N | 4 |
| 37 | 4130000010 | APPROACH SWITCH J7-D10B1 | Y | 1 |
| 38 | 4015000197 | WASHER GB96.1-10EpZn-300HV | N | 2 |
