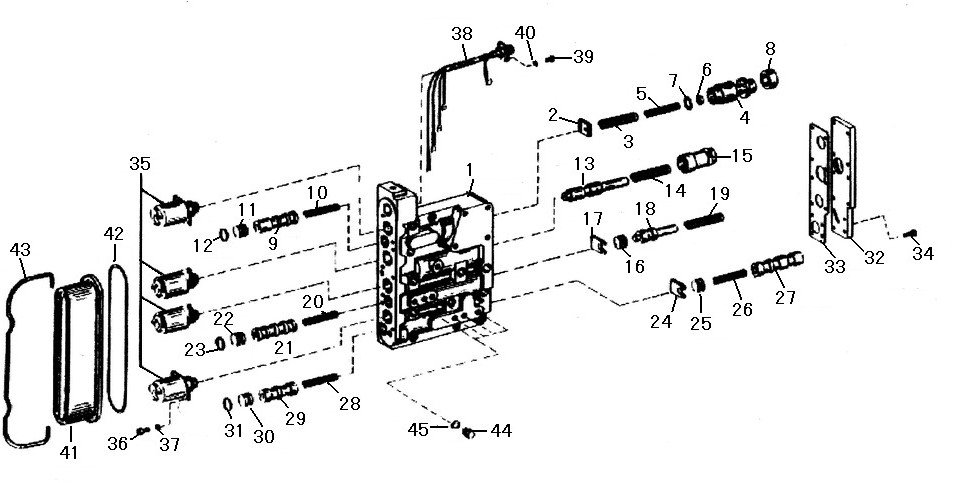

LG9378ZF TRANSMISSION SYSTEM CONTROL VALVE PARTS

Key	Part No.	Description	Spare parts Y/N	Qty
1	4110000076312	VALVE BODY 4642 306 152	N	1
2	4110000076174	LOCKING PLATE 4620 306 248	N	1
3	4110000076292	SPRING 0732 040 838	N	1
4	4110000076172	VALVE CORE 4620 306 245	N	1
5	4110000076248	SPRING 0732 040 837	N	1
6	4110000076244	SCREW-IN SLEEVE 0730 061 778	N	1
7	4110000076122	SHIM 0769 120 747	N	6
8	4110000076285	BUSHING 4620 306 247	N	1
9	4110000076184	VALVE CORE 4642 306 094	N	1
10	4110000076253	SPRING 0732 041 254	N	1
11	4110000076175	BACKING PIN 4620 306 252	N	1
12	4110000076216	O-RING 0634 303 118	N	1
13	4110000076314	VALVE CORE 4620 306 413	N	1
14	4110000076255	BACKING PIN 0732 041 390	N	1
15	4110000076178	FIXING PLATE 4620 306 414	N	1
16	4110000076315	VALVE CORE 4644 306 549	N	1
17	4110000076194	FIXING PLATE 4644 306 241	N	1
18	4110000076176	VALVE CORE 4620 306 255	N	1
19	4110000076250	SPRING 0732 041 154	N	1
20	4110000076253	SPRING 0732 041 254	N	1
21	4110000076183	VALVE CORE 4642 306 093	N	1
22	4110000076175	BACKING PIN 4620 306 252	N	1
23	4110000076216	O-RING 0634 303 118	N	1
24	4110000076180	LOCKING PLATE 4642 306 049	N	1
25	4110000076299	BACKING PIN 4644 306 549	N	1
26	4110000076253	SPRING 0732 041 254	N	1
27	4110000076185	VALVE CORE 4642 306 095	N	1
28	4110000076253	SPRING 0732 041 254	N	1
29	4110000076186	VALVE CORE 4642 306 096	N	1
30	4110000076175	BACKING PIN 4620 306 252	N	1
31	4110000076216	O-RING 0634 303 118	N	1
32	4110000076318	COVER 4620 306 415	N	1
33	4110000076179	GASKET 4620 306 479	N	1
34	4110000367141	HEX. BOLT 0636 015 244 M5*18 DIN933 8.8	N	11
35	4110000076001	SOLENOID VALVE 0501 315 338	Y	4
36	4110000367147	SOCKET BOLT 0636 101 129 M5*12 DIN912 8.8	N	8
37	4015000286	SPRING WASHER GB859-5-65Mn	N	8
38	4110000076390	CABLE SET 6029 241 303	Y	1
39	4014000191	SLOTTED SCREW GB65-M4*12-4.8	N	4
40	4110000367119	SADDLE FLEXIBLE WASHER 0630 302 076	N	4
41	4110000076303	SOLENOID VALVE HOUSING 4620 306 259	N	1
42	4110000076129	O-RING 0634 303 951	N	1
43	4110000076171	CLAMP 4620 306 241	N	1
44	4030000311	PLUG SCREW JB1000-M10*1EpZn-35	Y	6
45	4110000076224	COPPER WASHER 0634 801 152 A10*13.5 DIN7603	Y	6
