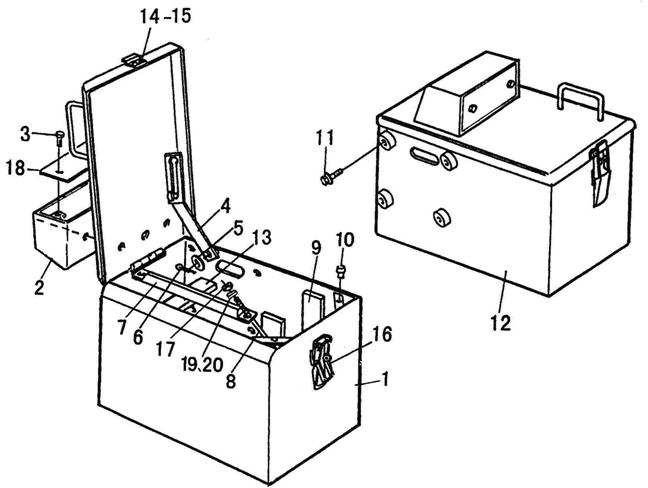

| Key | Part No. | Description | Spare parts Y/N | Qty |
| 1 | 29340010731 | RIGHT BATTARY BOX | Y | 1 |
| 2 | 29340002431 | LAMP BRACKET | Y | 2 |
| 3 | 4011000461 | BOLT GB16674-M8*16EpZn-8.8 | N | 4 |
| 4 | 29340009091 | LINK ASSEM | Y | 2 |
| 5 | 4015000168 | WASHER GB97.1-12EpZn-300HV | N | 4 |
| 6 | 4016000035 | SPLIT PIN GB91-4*20-EpZn-Q235A | N | 2 |
| 7 | 29340009111 | LOCKING ANGLE BAR | Y | 2 |
| 8 | 29340009121 | CLAMP BOLT | Y | 4 |
| 9 | 29340009081 | RUBBER PAD | Y | 4 |
| 10 | 29340009101 | RUBBER PLUG | Y | 4 |
| 11 | 4011000150 | BOLT GB16674-M16*35-EpZn-8.8 | N | 8 |
| 12 | 29340009071 | LEFT BATTARY BOX | Y | 1 |
| 13 | 29340000131 | RUBBER PAD | Y | 4 |
| 14 | 4014000023 | SCREW GB818-M5*10EpZn-4.8 | N | 10 |
| 15 | 4015000110 | WASHER GB97.1-5EpZn-300HV | N | 10 |
| 16 | 4190000025 | LOCK NBXS1013 | Y | 2 |
| 17 | 4013000033 | NUT GB6170-M8EpZn-8 | N | 4 |
| 18 | 29340002442 | PLATE | Y | 1 |
| 19 | 4015000036 | WASHER GB93-8-65Mn | N | 4 |
| 20 | 4015000072 | WASHER GB97.1-8EpZn-300HV | N | 4 |
