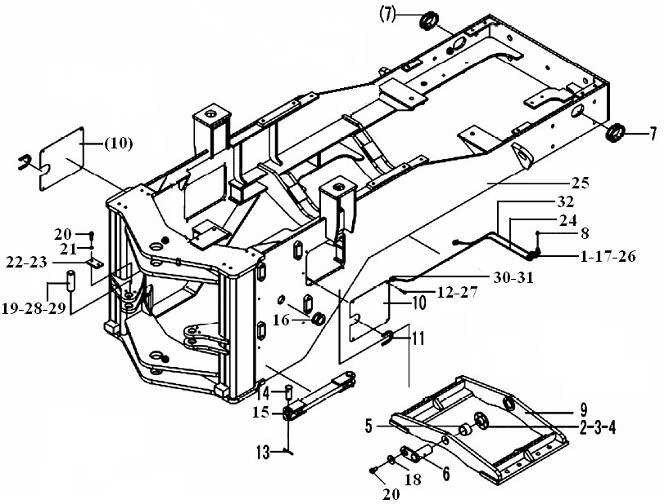

| Key | Part No. | Description | Spare parts Y/N | Qty |
| 1 | 29250000311 | CLIP | Y | 2 |
| 2 | 29270001051 | ADJUST SPACER | Y | 2 |
| 3 | 29270001061 | ADJUST SPACER | Y | 2 |
| 4 | 29270001071 | ADJUST SPACER | Y | 2 |
| 5 | 29270007831 | BUSH | Y | 2 |
| 6 | 29270008591 | JOINTING PIN | Y | 2 |
| 7 | 29270000031 | RUBBER SLEEVE | Y | 2 |
| 8 | 4030000065 | GREASE NOPPLE JB7940.1-M10*1 | Y | 4 |
| 9 | 29270007841 | OSCILLATING FRAME | Y | 1 |
| 10 | 29270008551 | HOOD | Y | 2 |
| 11 | 29270007792 | RUBBER BUSH | Y | 2 |
| 12 | 4011000102 | BOLT GB5783-M8*16EpZn-8.8 | N | 8 |
| 13 | 4016000040 | SPLIT PIN GB91-6.3*50EpZn-Q235A | N | 2 |
| 14 | 4016000222 | PIN GB882-B30*80EpZn-35 | N | 2 |
| 15 | 29270008891 | MOUNT BAR | Y | 1 |
| 16 | 29270007551 | RUBBER SLEEVE | Y | 1 |
| 17 | 4015000035 | WASHER GB93-6-65Mn | N | 4 |
| 18 | 4040000001 | WASHER LGB001-12*45*6 | Y | 2 |
| 19 | 29270007971 | REAR PIN OF STEERING CYLINDER | Y | 2 |
| 20 | 4011000197 | BOLT GB5783-M12*25EpZn-8.8 | N | 6 |
| 21 | 4015000026 | WASHER GB93-12-65Mn | N | 4 |
| 22 | 29250001111 | PLATE | Y | 2 |
| 23 | 29250001121 | PLATE | Y | 2 |
| 24 | 29270007771 | FRONT OIL TUBE | Y | 1 |
| 25 | 29260008373 | REAR FRAME | Y | 1 |
| 26 | 4014000024 | SCREW GB818-M6*10EpZn-4.8 | N | 4 |
| 27 | 4015000256 | WASHER GB96.1-8EpZn-300HV | N | 8 |
| 28 | 4043000064 | SPACER LGB303-40*70*1 | Y | 4 |
| 29 | 4043000325 | SPACER LGB303-40*70*2 | Y | 4 |
| 30 | 29250000291 | BOLT | Y | 2 |
| 31 | 29250000301 | WASHER | Y | 4 |
| 32 | 29270007751 | REAR OIL TUBE | Y | 1 |
