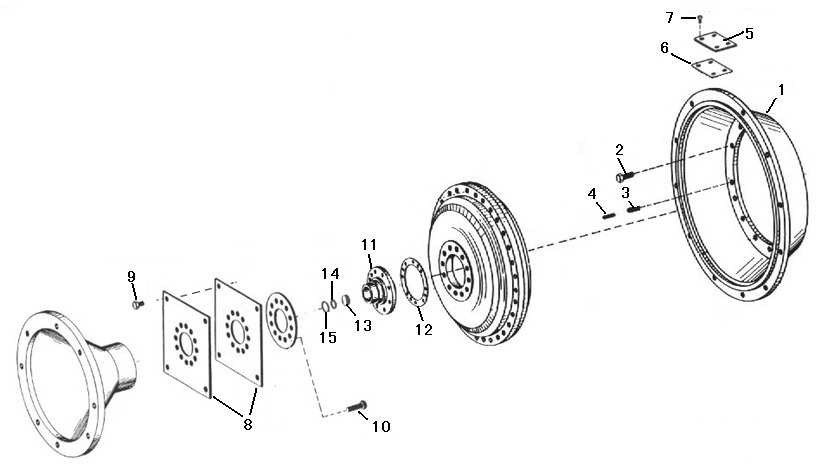

| Key | Part No. | Description | Spare parts Y/N | Qty |
| 1 | 4110000076330 | CONNECTION CASING YD13 330 005 SAE2 | Y | 1 |
| 2 | 4011000569 | BOLT GB5783-M10*35EpZn-10.9 | N | 12 |
| 3 | 4016000233 | PIN GB879.1-10*28-65Mn | N | 2 |
| 4 | 4016000231 | PIN GB879.1-6*30-65Mn | N | 2 |
| 5 | 4110000076319 | COVER YD13 330 003 | Y | 1 |
| 6 | 4110000076358 | GASKET YD13 330 006 | N | 1 |
| 7 | 4011000722 | BOLT GB5783-M6*10-8.8 | N | 4 |
| 8 | 4110000076334 | DIAPHRAGM 4644 230 807 | Y | 2 |
| 9 | 4110000076376 | BOLT 0636 015 280 M10*18 DIN933 10.9 | Y | 4 |
| 10 | 4011000082 | BOLT GB5783-M10*25EpZn-8.8 | N | 12 |
| 11 | 4110000076354 | CASING FLANGE 4166 330 834 H | Y | 1 |
| 12 | 4110000076356 | GASKET 4166 330 835 | N | 1 |
| 13 | 4110000076308 | WASHER 4166 330 123 | Y | 1 |
| 14 | 4110000076379 | O-RING 0634 313 260 25×3 ZFN744 | Y | 1 |
| 15 | 4015000019 | CHECK RING GB894.1-30-65Mn | N | 1 |
