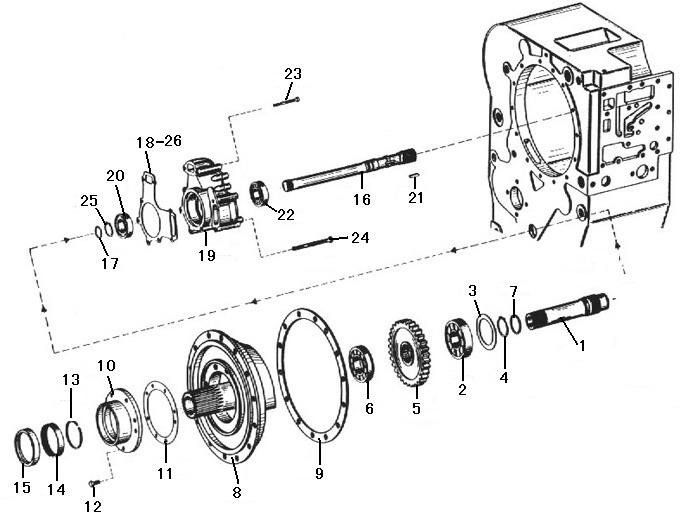

| Key | Part No. | Description | Spare parts Y/N | Qty |
| 1 | 4110000076347 | TURBINE SHAFT YD13 302 002 | Y | 1 |
| 2 | 4021000021 | BEARING GB276-6308 | Y | 1 |
| 3 | 4110000076269 | REGULATING SHIM 0769 120 427 | Y | 1 |
| 4 | 4110000076210 | RETAINING RING 0630 501 031 40*1.75 | Y | 1 |
| 5 | 4110000076342 | INPUT GEAR YD13 302 004 Z=50 | Y | 1 |
| 6 | 4021000182 | BEARING GB283-NJ209E | N | 1 |
| 7 | 4110000076256 | SEALING RING 0734 317 252 | Y | 1 |
| 8 | 4110000076335 | OIL FEED FLANGE YD13 302 001 | Y | 1 |
| 9 | 4110000076024 | GASKET 4644 302 211 | N | 1 |
| 10 | 4110000076025 | BEARING SEAT 4642 301 136 | Y | 1 |
| 11 | 4110000076357 | GASKETYD13 302 005 | N | 1 |
| 12 | 4011000724 | BOLT GB5783-M8*25-8.8 | N | 8 |
| 13 | 4110000076027 | SEALING RING0734 401 078 | Y | 1 |
| 14 | 4110000076028 | NEEDLE BEARING 0735 298 027 HK75*83*16 | Y | 1 |
| 15 | 4110000076367 | SEALING RING FOR SHAFT 0750 111 231 75*100*10 | Y | 1 |
| 16 | 4110000076317 | STAND-BY DRIVE SHAFT YD13 302 003 | Y | 1 |
| 17 | 4110000076030 | SEALING RING 0634 402 025 | Y | 1 |
| 18 | 4110000076031 | GASKET 4644 301 265 | N | 1 |
| 19 | 4110000076032 | GEAR PUMP 0501 004 171 | Y | 1 |
| 20 | 4021000106 | BEARING GB276-6206 | Y | 1 |
| 21 | 4022000018 | KEY GB1096-6*22-35 | Y | 1 |
| 22 | 4021000106 | BEARING GB276-6206 | Y | 1 |
| 23 | 4011000303 | BOLT GB5782-M8*85EpZn-8.8 | N | 4 |
| 24 | 4011000588 | BOLT GB5782-M8*110EpZn-8.8 | N | 4 |
| 25 | 4110000076209 | RETAINING RING 0630 501 024 30*1.5 | N | 1 |
| 26 | 4110000076282 | SEALING SPACER(FULL SET) | Y | 4 |
