| KEY | PART N0 | DESCRIPTION | QTY | REMARKS | ||

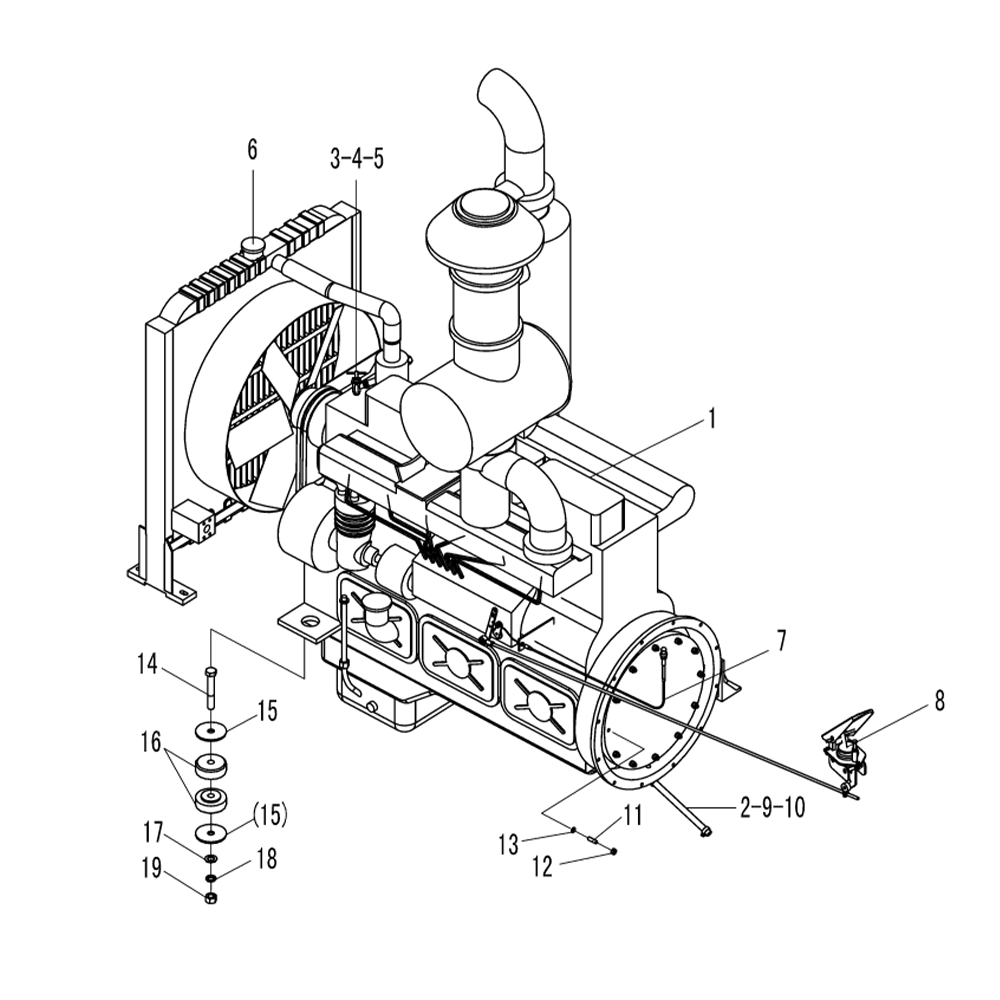

| LG953 DIESEL ENGINE SYSTEM | 1 | 4110000113 | 发动机总成WD615.67G3-36(G0375) | ISESEL ENGINE SYSTEMWD615. 67G3-36-G0375 | 1 | 部件 |
| 2 | 4120000025 | 胶管夹箍0/ZB251-1/2″ | CLAMP Q/ZB251-1/2″ | 6 | ||
| 3 | 4030000195 | 胶管JB8406-B16*16000 | 0SE JB8406-B16*1600 | 2 | ||
| 4 | 4120000057 | 暖风机放水阀LG12-NFJSF | OFFLET VALVE LG12-NFJSF | 2 | 部件 | |
| 5 | 2903000004 | 管夹 | CLAMP | 1 | 部件 | |
| 0 | 412000059 | 液压油散B1294 | RADIATOR B1294 | 1 | 部件 | |
| 1 | 2001000102 | 停车操纵机构 | PARKING CONCTROL SYSTEM | 1 | 部件 | |
| 0 | 2901000002 | 油门操纵机构 | SOVERNOR CONTROL SYSTEM | 1 | 部件 | |
| 9 | 4030000250 | 胶管JB8406-B16*300 | 10SE JB8406-B16*300 | 1 | ||
| 10 | 2001000012 | 回油接头 | CONNECTOR | 1 | 部件 | |
| 11 | 2901000011 | 双头螺柱 | DOUBLE BOLT | 12 | 45 | |
| 12 | 401300000 | 螺母 GB6170-M10EpZn-8 | NUT GB6170-M10EpZn-8 | 12 | ||
| 13 | 4015000025 | 垫圈GB93-10-65Mn | WASHER GB93-10-65Mn | 12 | ||
| 14 | 4011000230 | 螺栓GB5782-M20*130EpZn-8.8 | 30LT GB5782-M20*130EpZn-8.8 | 2 | ||
| 15 | 2905000012 | 垫圈 | WASHER | 4 | Q235a | |
| 15 | 2905000010 | 减震块 | SHOCKMOUNT | 4 | 部件 | |
| 1 | 4015000125 | 垫圈GB97.1-20EpZn-300HV | WASHER GB97. 1-20EpZn-300HV | 2 | ||
| 12 | 4015000030 | 垫圈GB93-20-65Mn | WASHER GB93-20-65Mn | 2 | ||
| 10 | 4013000020 | 螺母GB6170-M20EpZn-8 | NUT GB6170-M20EpZn-8 | 2 |
LG953
