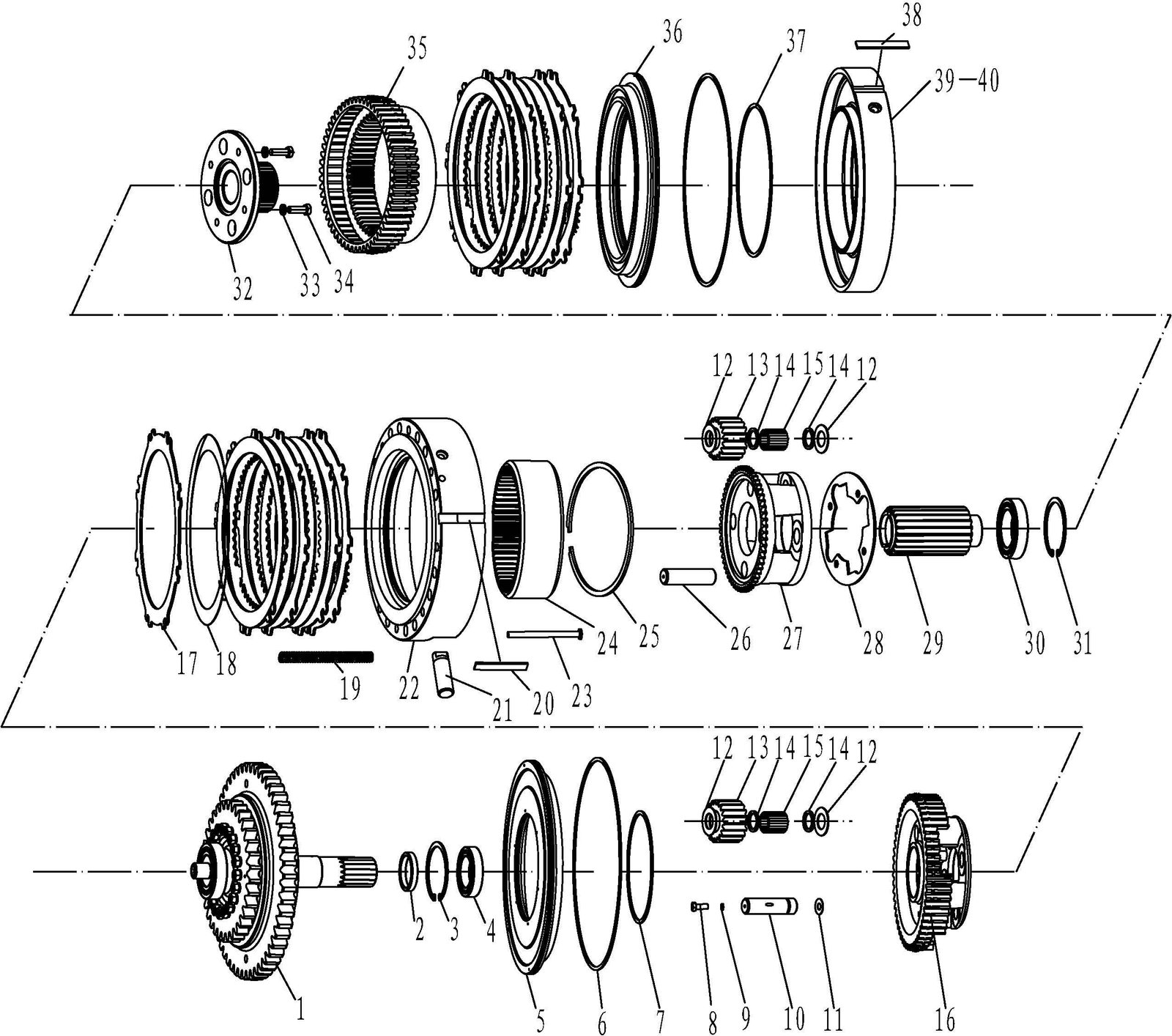

| KEY | PART NO. | DESCRIPTION | QTY |
| 1 | C5-2030900026 | 超越离合器总成 clutch assy | 1 |
| 2 | 3030900168 | 间隔套 spacer sleeve | 1 |
| 3 | 4015000017 | 挡圈 GB893.1-90-65Mn collar | 1 |
| 4 | 4021000011 | 滚动轴承 GB276-6010 rolling bearing | 2 |
| 5 | 3030900139 | 倒档活塞 reverse pistion | 1 |
| 6 | 3030900143 | 外密封环 outer seal | 2 |
| 7 | 3030900163 | 内密封环 inner seal | 1 |
| 8 | 3030900170 | 螺栓 bolt | 4 |
| 9 | 4015000036 | 垫圈 GB93-8-65Mn washer | 4 |
| 10 | 3030900160 | 倒档行星轴 reverse planetary shaft | 4 |
| 11 | 3030900162 | 止动垫圈 wahser | 4 |
| 12 | 3030900147 | 垫片 gasket | 16 |
| 13 | 3030900148 | 行星轮 planetary wheel | 8 |
| 14 | 3030900154 | 挡圈 collar | 16 |
| 15 | 4090000001 | 滚针 GB309-4*35-GCr15 needle | 176 |
| 16 | 3030900171 | 倒档行星架 reverse planetary bracket | 1 |
| 17 | 3030900140 | 倒档一档从动片 reverse first gear drive plate | 8 |
| 18 | 2030900028 | 倒档一档主动片 reverse first gear driving plate | 8 |
| 19 | 3030900141 | 弹簧 spring | 15 |
| 20 | 3030900176 | 销 pin | 8 |
| 21 | 3030900161 | 圆柱销 pin | 1 |
| 22 | 2030900029 | 摩擦片隔离架总成 Friction plate spacer frame assembly | 1 |
| 23 | 3030900142 | 弹簧销轴 spring pin shaft | 15 |
| 24 | 3030900158 | 倒档内齿圈 reverse inner ring gear | 1 |
| 25 | 3030900156 | 挡圈 collar | 1 |
| 26 | 3030900149 | 一档行星轴 first gear planetary shaft | 4 |
| 27 | 3030900151 | 一档行星架 first gear planetary bracket | 1 |
| 28 | 3030900150 | 止动盘 stopping disc | 1 |
| 29 | 3030900153 | 太阳轮 sun wheel | 1 |
| 30 | 4021000019 | 滚动轴承 GB276-6210N rolling bearing | 1 |
| 31 | 4015000024 | 挡圈 GB894.1-90-65Mn collar | 1 |
| 32 | 3030900152 | 直接档连接盘 | 1 |
| 33 | 4015000026 | 垫圈 GB93-12-65Mn washer | 4 |
| 34 | 4011000125 | 螺栓 GB5786-M12*1.25*35EpZn-8.8 bolt | 4 |
| 35 | 3030900172 | 内齿圈 inner ring gear | 1 |
| 36 | 3030900144 | 一档活塞 first gear piston | 1 |
| 37 | 3030900113 | 密封环 seal | 1 |
| 38 | 3030900159 | 固定板 fix plate | 1 |
| 39 | 3030900145 | 一档油缸 first gear cylinder | 1 |
| 40 | 3030900146 | 矩形密封圈 rectangle seal | 1 |
