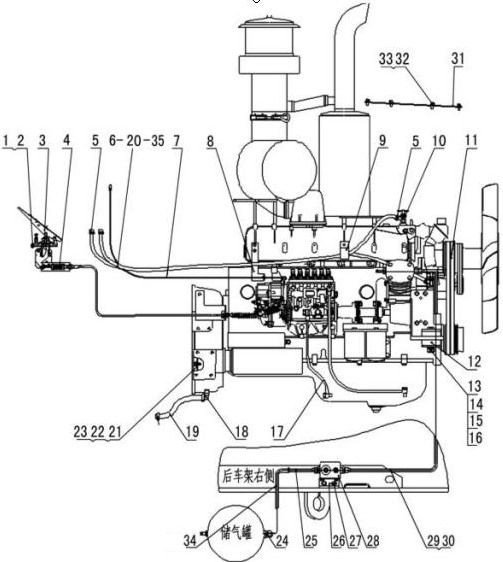

| KEY | PART NO. | DESCRIPTION | QTY |
| 1 | 4011000101 | 螺栓 GB5783-M6*20EpZn-8.8 bolt | 3 |
| 2 | 4015000035 | 垫圈 GB93-6-65Mn washer | 3 |
| 3 | 4120000096 | 油门踏板 ZY75-00 throttle pedal | 1 |
| 4 | 4110000112001 | 油门软轴组件 throttle shaft | 1 |
| 5 | 4017000024 | 环箍 QC390-D26 hoop | 6 |
| 6 | 4120000136 | 胶管 JB8406-B16*2900 pipe | 2 |
| 7 | 29010013441 | 操纵软轴 operation shaft | 1 |
| 8 | 29010001091 | 固定板 plate | 1 |
| 9 | 29030000041 | 管夹 hose clamp | 1 |
| 10 | 4120000067 | 暖风机水阀 LG12-NFJSF valve | 2 |
| 11 | 4110000480 | 发动机总成 WD615G.220(G0481) engine assy | |
| 12 | 4110000460 | 减震器 CBB95-2 shock absorber | 4 |
| 13 | 4011000579 | 螺栓 GB5785-M20*1.5*120EpZn-8.8 bolt | |
| 14 | 29050000121 | 垫圈 washer | 4 |
| 15 | 4015000176 | 垫圈 GB97.1-20EpZn-300HV washer | 2 |
| 16 | 4013000160 | 螺母 GB889.2-M20*1.5EpZn-8 nut | 2 |
| 17 | 4110000112002 | 燃油供给组件 oil supply | 1 |
| 18 | 4030000581 | 胶管 JB8406-B16*340 hose | 1 |
| 19 | 29010008691 | 回油接头 fuel return fitting | 1 |
| 20 | 4041000876 | 缓冲套 LGB123-0322 cushion cover | 1 |
| 21 | 4015000025 | 垫圈 GB93-10-65Mn washer | 12 |
| 22 | 29010000111 | 双头螺柱 stud | 12 |
| 23 | 4013000007 | 螺母 GB6170-M10EpZn-8 nut | 12 |
| 24 | 29220001191 | 直接头 direct connector | 2 |
| 25 | 4041001229 | 软管 LGB145-205220 soft pipe | 1 |
| 26 | 29010000081 | 支承板 support plate | 1 |
| 27 | 4011000488 | 螺栓 GB16674-M10*16EpZn-8.8 bolt | 2 |
| 28 | 4120000084 | 油水分离器组合阀 ST-50G water separator | 1 |
| 29 | 29220000171 | 垫圈 washer | 2 |
| 30 | 4120002043 | 金属软管 LG09-JSRG-600 metal hose | 1 |
| 31 | 29010014341 | 上盖板 upper cover | 1 |
| 32 | 4011000081 | 螺栓 GB5783-M10*20EpZn-8.8 bolt | 7 |
| 33 | 4015000197 | 垫圈 GB96.1-10EpZn-300HV washer | 7 |
| 34 | 4011000461 | 螺栓 GB16674-M8*16EpZn-8.8 bolt | 1 |
| 35 | 4041000829 | 管夹 LGB167-0322 hose clamp | 1 |
