LG956 front bracket
,

LG956 front bracket

Categories: ,

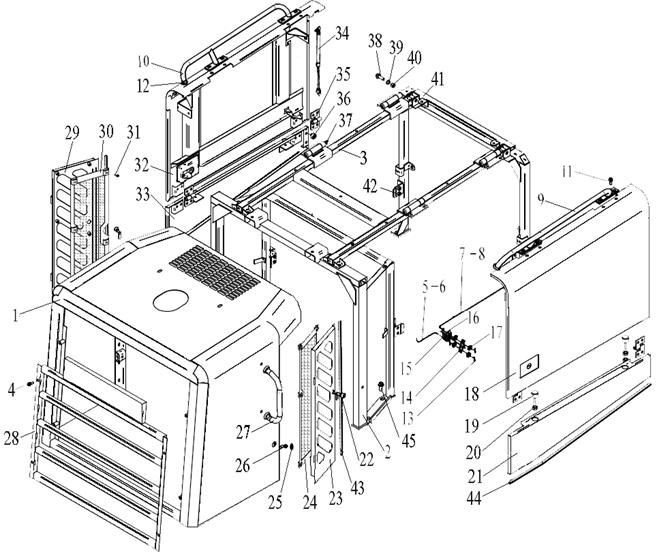

KEY PART NO. DESCRIPTION QTY
1 29330018441 后罩 rear hood 1
2 29330016241 后支架 rear bracket 1
3 29330016401 上支架 upper bracket 1
4 4011000447 螺栓 GB16674-M10*20EpZn-8.8 bolt 18
5 29330000171 短拉杆（右）short rod (right) 1
6 29330000181 短拉杆（左）short rod (left) 1
7 29330016671 左长拉杆 left long rod 1
8 29330016681 右长拉杆 right long rod 1
9 29330016461 右上扶手 right upper armrest 1
10 29330016441 左上扶手 left upper armrest 1
11 4011000477 螺栓 GB16674-M12*35EpZn-8.8 bolt 8
12 29330011232 橡胶塞 rubber plug 2
13 4016000114 销 GB91-2*16EpZn-Q235A pin
14 29330000241 转板 transfer 16
15 4016000119 销 GB91-3.2*16EpZn-Q235A pin 2
16 4015000162 垫圈 GB97.1-10EpZn-300HV washer 8
17 4015000207 垫圈 GB97.1-6EpZn-300HV washer 16
18 29330016551 右侧门 right door 1
19 29330001511 垫块 block 4
20 4013000007 螺母 GB6170-M10EpZn-8 nut 8
21 29330016651 右盖板 right cover 1
22 4190000916 门锁 NBS5013A door lock 2
23 29330016731 右网板 right stencil 1
24 29330018731 衬网 net 1
25 29330000201 橡胶盖 rubber cover 2
26 4011000560 螺栓 GB16674-M12*25EpZn-8.8 nut 25
27 29330001891 扶手 armrest 2
28 29330018742 窗棂 1
29 29330016691 左网板 left stencil 1
30 29330018691 衬网 net 1
31 4130000075 螺栓 GB16674-M6*12EpZn-8.8 bolt 12
32 29330016481 左侧门 left door 1
33 29330016631 左盖板 left cover 1
34 29330014621 气弹簧 air spring 4
35 29330001531 合页 hinge 4
36 29330001541 橡胶垫 rubber plate 4
37 4030000535 油杯 JB7940.1-M6 oil cup 4
38 4011000151 螺栓 GB16674-M16*80EpZn-8.8 bolt 2
39 4015000181 垫圈 GB97.1-16EpZn-300HV washer 2
40 4013000016 螺母 GB6170-M16EpZn-8nut 2
41 29330016611 前支架 front bracket 1
42 29330000092 前卡板 plate 4
43 29330016821 卡子胶条 strips 2
44 4030000574 卡子胶条 GB7526-1100-胶条 strips 2
45 4011000146 螺栓 GB16674-M16*30EpZn-8.8 bolt 8
46 4011000081 螺栓 GB5783-M10*20EpZn-8.8 bolt 4
47 29330020211 垫片 gasket 6
48 29330020221 垫片 gasket 6
