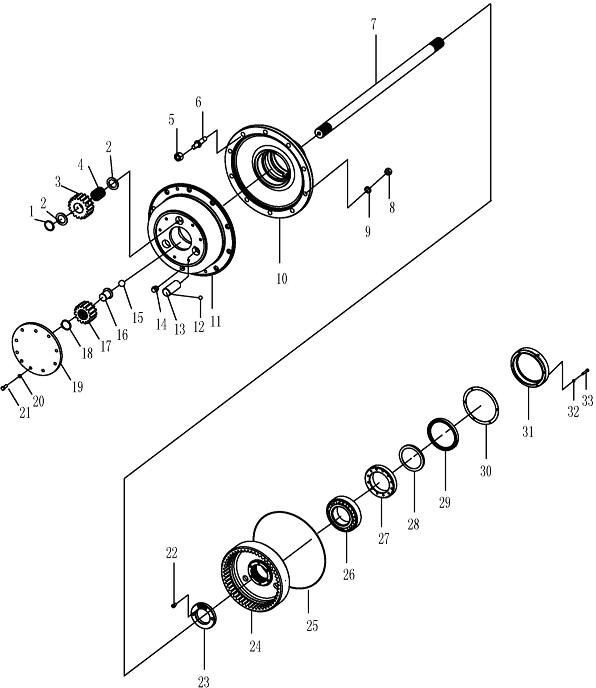

| KEY | PART NO. | DESCRIPTION | QTY |
| 1 | 29070000541 | 垫片 gasket | 6 |
| 2 | 29070000551 | 挡环 collar | 6 |
| 3 | 29070000561 | 行星齿轮 planetary gear | 3 |
| 4 | 4090000004 | 滚针 GB309-5*45-GCr15 needle | 93 |
| 5 | 29070000081 | 轮辋螺母 rim nut | 10 |
| 6 | 29070000621 | 轮辋螺栓 rim bolt | 10 |
| 7 | 29070000601 | 半轴 half axle | 1 |
| 8 | 4013000203 | 螺母 GB6171-M20*1.5EpZn-10 nut | 10 |
| 9 | 4015000030 | 垫圈 GB93-20-65Mn washer | 10 |
| 10 | 29070010931 | 轮毂 hub | 1 |
| 11 | 29070010921 | 行星轮架 planetary bracket | 1 |
| 12 | 4090000008 | 钢球 GB308-9.525-GCr15 ball | 3 |
| 13 | 29070000611 | 行星齿轮轴 planetary gear shaft | 3 |
| 14 | 4120000080 | 螺塞 Q/ZB286-ZG3/4″-Q235A plugs | 1 |
| 15 | 4090000006 | 钢球 GB308-17.462-GCr15 ball | 1 |
| 16 | 29070009161 | 定位块 location block | 1 |
| 17 | 29070000511 | 太阳齿轮 sun gear | 1 |
| 18 | 4015000022 | 挡圈 GB894.1-52-65Mn collar | 1 |
| 19 | 29070007621 | 盖 cover | 1 |
| 20 | 4015000025 | 垫圈 GB93-10-65Mn washer | 10 |
| 21 | 4011000084 | 螺栓 GB5783-M10*30EpZn-8.8 bolt | 10 |
| 22 | 4014000016 | 螺钉 GB70-M10*1*20EpZn-8.8 screw | 1 |
| 23 | 29070000571 | 圆螺母 round nut | 1 |
| 24 | 29070000481 | 驱动桥内齿轮 axle inner gear | 1 |
| 25 | 4041000020 | O 形圈 LGB308-440*3.5 O-ring | 1 |
| 26 | 4021000038 | 滚动轴承 GB297-32224 rolling bearing | 1 |
| 27 | 4021000034 | 滚动轴承 GB297-32028 rolling bearing | 1 |
| 28 | 29070000581 | 隔套 sleeve | 1 |
| 29 | 4030000146 | 油封 HG4-692-SG170*200*15 oil seal | 1 |
| 30 | 29070000591 | 密封垫 seal | 1 |
| 31 | 29070000471 | 油封端盖 seal cover | 1 |
| 32 | 4015000036 | 垫圈 GB93-8-65Mn washer | 6 |
| 33 | 4011000298 | 螺栓 GB5782-M8*45EpZn-8.8 bolt | 6 |
