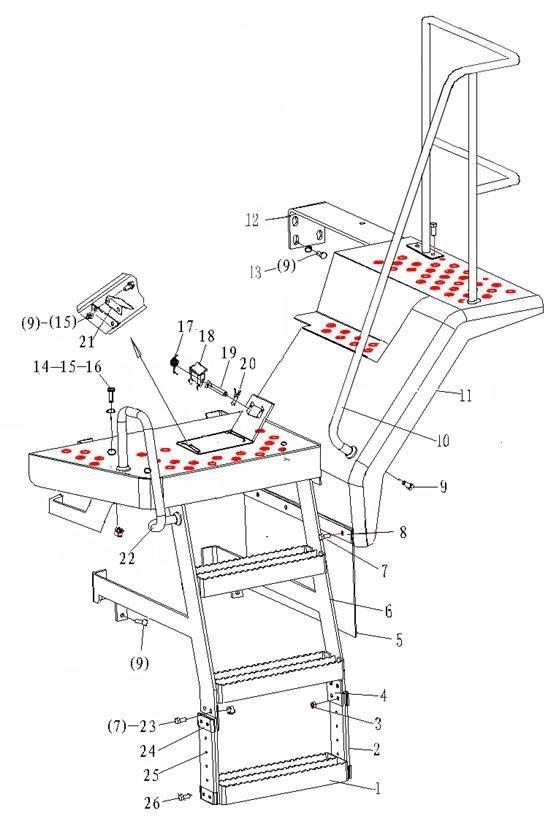

| KEY | PART NO. | DESCRIPTION | QTY |
| 1 | 29340000701 | 踏板 step | 1 |
| 2 | 29340000711 | 皮带 belt | 4 |
| 3 | 4013000033 | 螺母 GB6170-M8EpZn-8 nut | 8 |
| 4 | 29340000721 | 连接板 connecting plate | 2 |
| 5 | 29340000651 | 橡胶板 rubber plate | 1 |
| 6 | 29340015491 | 左梯 left ladder | 1 |
| 7 | 4011000474 | 螺栓 GB16674-M10*25EpZn-8.8 bolt | 8 |
| 8 | 29340000641 | 压板 compression plate | 1 |
| 9 | 4011000560 | 螺栓 GB16674-M12*25EpZn-8.8 bolt | 12 |
| 10 | 29340013421 | 左护栏 left rail | 1 |
| 11 | 29340015501 | 左台架 left rack | 1 |
| 12 | 29340013721 | 左支架 left bracket | 1 |
| 13 | 4015000168 | 垫圈 GB97.1-12EpZn-300HV washer | 7 |
| 14 | 4011000477 | 螺栓 GB16674-M12*35EpZn-8.8 bolt | 7 |
| 15 | 4013000011 | 螺母 GB6170-M12EpZn-8 nut | 7 |
| 16 | 4015000186 | 垫圈 GB96.1-12EpZn-300HV washer | 4 |
| 17 | 29340001001 | 弹簧 spring | 1 |
| 18 | 29340000991 | 扳手 spanner | 1 |
| 19 | 4016000140 | 销轴 GB882-B6*70EpZn-35 pin shaft | 1 |
| 20 | 4016000114 | 销 GB91-2*16EpZn-Q235A pin | 1 |
| 21 | 29340000981 | 挡板 collar | 1 |
| 22 | 29340015291 | 左前扶手 left front armrest | 1 |
| 23 | 4013000007 | 螺母 GB6170-M10EpZn-8 nut | 4 |
| 24 | 29340000691 | 压板 compression plate | 4 |
| 25 | 4019000008 | 铆钉 GB875-6*20-BL2 rivet | 8 |
| 26 | 4011000455 | 螺栓 GB16674-M8*25EpZn-8.8 bolt | 8 |
