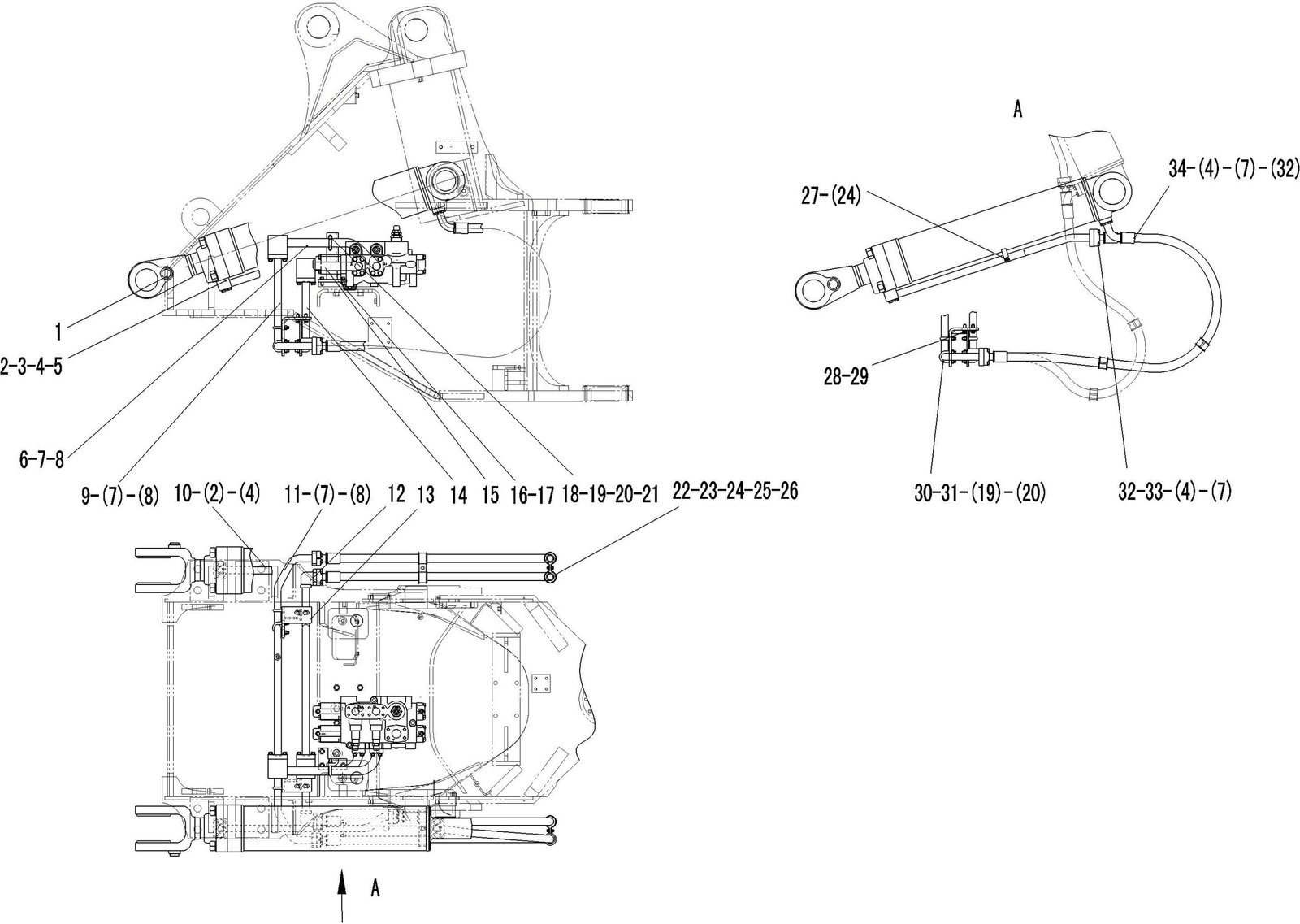

LG956 lift arm cyliner

KEY	PART NO.	DESCRIPTION	QTY
1	4120002063	动臂油缸 HSGF-18090767-1427 lift arm cyliner	2
2	4011000473	螺栓 GB16674-M10*55EpZn-8.8 bolt	4
3	29130010551	左动臂缸小腔钢管 left lift arm valve to right arm cylinder	1
4	4030000026	O 形圈 GB3452.1-32.5*3.55G O-ring	10
5	4011000309	螺栓 GB16674-M10*50EpZn-8.8 bolt	4
6	29130010861	动臂联大腔三通钢管 lift arm cylinder three-way pipe	1
7	4011000475	螺栓 GB16674-M10*30EpZn-8.8 bolt	56
8	4030000029	O 形圈 GB3452.1-37.5*3.55G O-ring	6
9	29130010891	阀至左动臂缸大腔钢管 pipe from valve to left lift arm cylinder	1
10	29130010531	右动臂缸小腔钢管 right arm cylinder pipe	1
11	29130010921	阀至右动臂缸大腔钢管 pipe from valve to right arm cylinder	1
12	29130010941	阀至右动臂缸小腔钢管 pipe from valve to right arm cylinder	1
13	29130010701	右支架 right bracket	1
14	29130010961	阀至左动臂缸小腔钢管 pipe from valve to left arm cylinder	1
15	29130010981	动臂联小腔三通钢管 lift arm cylinder three-way pipe	1
16	4011000474	螺栓 GB16674-M10*25EpZn-8.8 bolt	3
17	29130011001	钢管支架 pipe support bracket	1
18	4041001141	U 形螺栓 LGB159-03646 U-bolt	1
19	4013000007	螺母 GB6170-M10EpZn-8 nut	14
20	4015000162	垫圈 GB97.1-10EpZn-300HV washer	14
21	4041001142	底板 LGB160-3646 plate	1
22	29130010371	管夹 clamp	8
23	4041000869	缓冲套 LGB123-0740 cushion cover	8
24	4011000458	螺栓 GB16674-M8*20EpZn-8.8 bolt	8
25	4013000033	螺母 GB6170-M8EpZn-8 nut	4
26	4015000072	垫圈 GB97.1-8EpZn-300HV washer	4
27	29130000111	管夹 clamp	2
28	29130010741	左支架 left bracket	1
29	4011000479	螺栓 GB16674-M12*30EpZn-8.8 bolt	4
30	4041000958	U 形螺栓 LGB159-03040 U-bolt	6
31	4041001018	底板 LGB160-3040 plate	6
32	4041000043	分体法兰 LGB117-310490 split	8
33	4041001118	软管 LGB107-010165 pipe	2
34	29130010571	动臂缸胶管 arm	2
