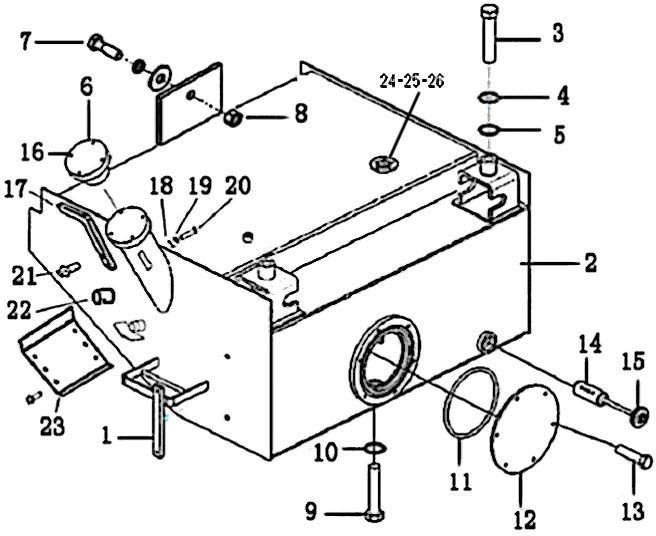

| KEY | PART NO. | DESCRIPTION | QTY |
| 1 | 4120000093 | 液位计 YWZ-200 level meter | 1 |
| 2 | 29020008351 | 燃油箱体 fuel tank | 1 |
| 3 | 4011000529 | 螺栓 GB5785-M24*2*130EpZn-8.8 bolt | 2 |
| 4 | 4015000187 | 垫圈 GB96.1-24EpZn-300HV washer | 3 |
| 5 | 4015000031 | 垫圈 GB93-24-65Mn washer | 3 |
| 6 | 4120000081 | 液压空气过滤器 QUQ2.5b hydraulic air filter | 1 |
| 7 | 4011000567 | 螺栓 GB5785-M24*2*80EpZn-8.8 hydraulic air filter | 1 |
| 8 | 4013000042 | 螺母 GB6171-M24*2EpZn-8 nut | 1 |
| 9 | 4030000143 | 螺塞 JB1000-M27*2EpZn-35 plugs | 1 |
| 10 | 4015000091 | 垫圈 JB982-27 washer | 1 |
| 11 | 4030000084 | O 形圈 GB3452.1-600*7.00G O-ring | 1 |
| 12 | 29020000041 | 盖板 cover | 1 |
| 13 | 4011000474 | 螺栓 GB16674-M10*25EpZn-8.8 bolt | 6 |
| 14 | 29020008421 | 滤油器总成 filter assy | 1 |
| 15 | 29020000062 | 垫圈 washer | 1 |
| 16 | 4011000461 | 螺栓 GB16674-M8*16EpZn-8.8 bolt | 4 |
| 17 | 29020008441 | 锁板 lock plate | 1 |
| 18 | 4016000119 | 销 GB91-3.2*16EpZn-Q235A pin | 1 |
| 19 | 4015000072 | 垫圈 GB97.1-8EpZn-300HV washer | 1 |
| 20 | 4016000144 | 销轴 GB882-B8*30EpZn-35 pin shaft | 1 |
| 21 | 4011000447 | 螺栓 GB16674-M10*20EpZn-8.8 bolt | 1 |
| 22 | 29020008291 | 丝帽 nut | 1 |
| 23 | 29020008251 | 护板 shield | 1 |
| 24 | 4014000047 | 螺钉 GB818-M5*8EpZn-4.8 screws | 5 |
| 25 | 29020006841 | 法兰盖 flange cover | 1 |
| 26 | 29020006851 | 垫片 washer | 1 |
