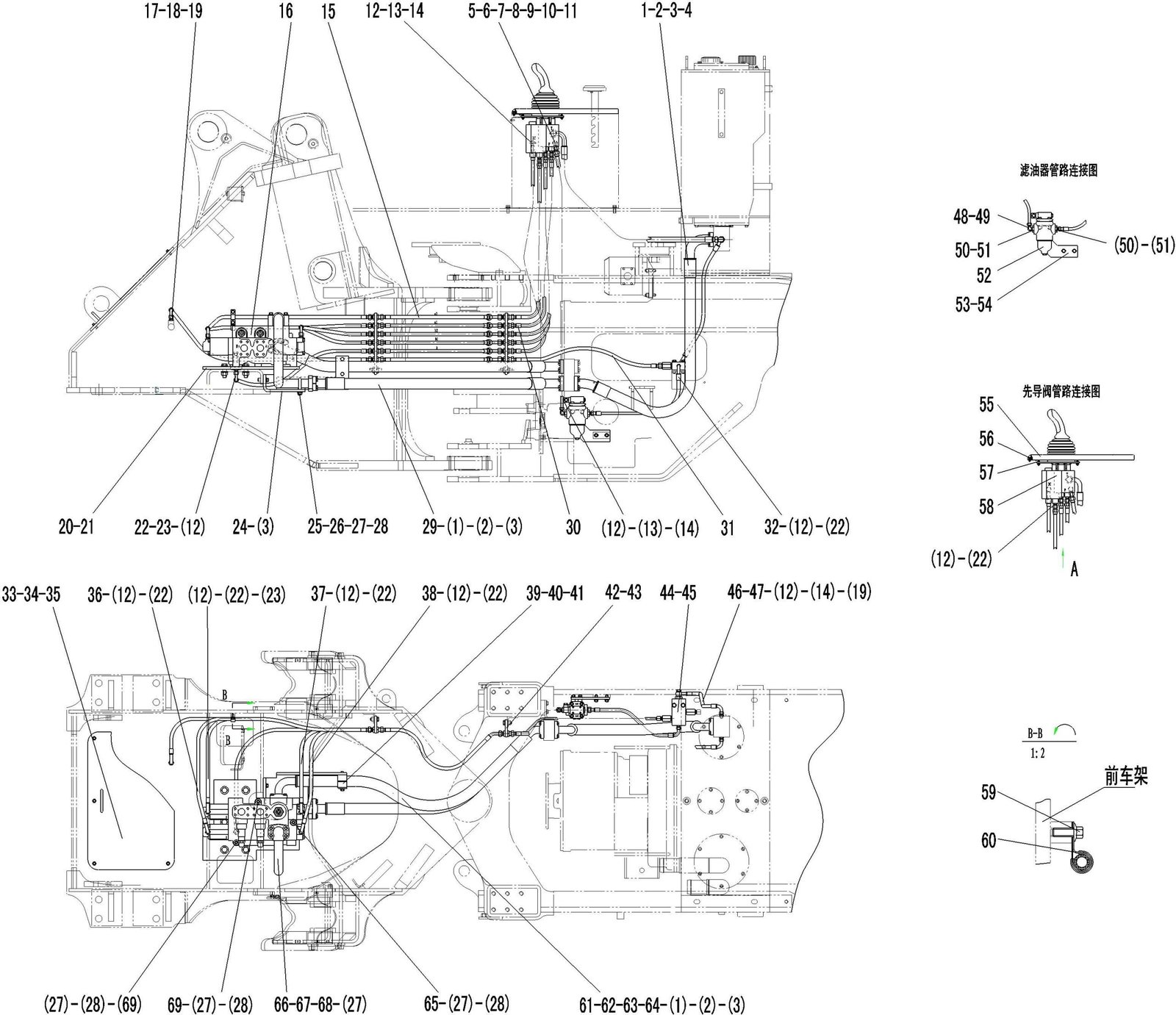

| KEY | PART NO. | DESCRIPTION | QTY |
| 1 | 4030000130 | O 形圈 GB3452.1-47.5*3.55G O-ring | 6 |
| 2 | 4041000011 | 分体法兰 LGB117-314650 split | 5 |
| 3 | 4011000477 | 螺栓 GB16674-M12*35EpZn-8.8 bolt | 22 |
| 4 | 29120014731 | 回油软管 oil-return pipe | 1 |
| 5 | 29120015981 | 先导阀回油胶管 pilot valve oil return pipe | 1 |
| 6 | 4041000766 | 直接头 LGB120-01818 direct connector | 1 |
| 7 | 29120015221 | 垫圈 washer | 2 |
| 8 | 4041000768 | O 形圈 LGB168-11524 O-ring | 1 |
| 9 | 4041001063 | 组合接头 LGB143-01810 connector | 1 |
| 10 | 4030000490 | O 形圈 GB3452.1-10.0*1.80G O-ring | 1 |
| 11 | 4011000366 | 螺栓 JB999-M18*1.5*40EpZn-35 bolt | 1 |
| 12 | 29120014931 | 垫圈 washer | 16 |
| 13 | 29120010891 | 先导阀油管（2c） pilot valve oil pipe | 2 |
| 14 | 4011000344 | 螺栓 JB999-M14*1.5*32EpZn-35 bolt | 3 |
| 15 | 4041000628 | 软管 LGB129-004085 soft pipe | 6 |
| 16 | 4120002059 | 多路阀 D32-17 multi-way valve | 1 |
| 17 | 4041001144 | 软管 LGB128-004125 pipe | 1 |
| 18 | 4041000604 | 直接头 LGB120-01614 direct connector | 1 |
| 19 | 4041000767 | O 形圈 LGB168-11124 O-ring | 2 |
| 20 | 29120015091 | 多路阀固定板 multi-way valve fix plate | 1 |
| 21 | 4011000149 | 螺栓 GB16674-M16*50EpZn-8.8 bolt | 5 |
| 22 | 29120007651 | 接头 connector | 11 |
| 23 | 4041001145 | 软管 LGB125-004125 pipe | 2 |
| 24 | 29120015121 | 固定板 fix plate | 1 |
| 25 | 4041000954 | U 形螺栓 LGB159-14254 U-bolt | 1 |
| 26 | 4041000955 | 底板 LGB160-4254 plate | 1 |
| 27 | 4015000168 | 垫圈 GB97.1-12EpZn-300HV washer | 9 |
| 28 | 4013000011 | 螺母 GB6170-M12EpZn-8 nut | 5 |
| 29 | 4041001263 | 软管 LGB161-414118 pipe | 1 |
| 30 | 4041001146 | 软管 LGB124-004110 pipe | 4 |
| 31 | 29120015151 | 选择阀至动臂大腔后油管 rear pipe from control valve to lift arm | 1 |
| 32 | 4041000632 | 软管 LGB125-004080 pipe | 1 |
| 33 | 29120014012 | 前盖板 front cover | 1 |
| 34 | 4011000081 | 螺栓 GB5783-M10*20EpZn-8.8 bolt | 6 |
| 35 | 4015000197 | 垫圈 GB96.1-10EpZn-300HV washer | 6 |
| 36 | 4041000578 | 软管 LGB125-004130 pipe | 1 |
| 37 | 4041000576 | 软管 LGB125-004065 pipe | 1 |
| 38 | 4041001147 | 软管 LGB125-004075 pipe | 1 |
| 39 | 29140001141 | 橡胶板 rubber plate | 2 |
| 40 | 29140001131 | 压板 compression plate | 1 |
| 41 | 4011000136 | 螺栓 GB16674-M10*85EpZn-8.8 bolt | 2 |
| 42 | 29120015161 | 先导油管二通管组 pilot valve oil pipe | 2 |
| 43 | 4011000479 | 螺栓 GB16674-M12*30EpZn-8.8 bolt | 8 |
| 44 | 4120000448 | 压力选择阀 SF8-C pressure control valve | 1 |
| 45 | 4011000473 | 螺栓 GB16674-M10*55EpZn-8.8 bolt | 2 |
| 46 | 29120007561 | 选择阀回油管 control valve oil return pipe | 1 |
| 47 | 4041000150 | 直接头 LGB120-01814 direct connector | 1 |
| 48 | 4041001023 | 组合接头 LGB143-01608 connector | 2 |
| 49 | 4030000240 | O 形圈 GB3452.1-8.00*1.80G O-ring | 2 |
| 50 | 29120015081 | 接头 connector | 2 |
| 51 | 4030000276 | O 形圈 GB3452.1-32.5*2.65G O-ring | 2 |
| 52 | 4120001954 | 滤油器 PLF-C30*10 filter | 1 |
| 53 | 4011000447 | 螺栓 GB16674-M10*20EpZn-8.8 bolt | 4 |
| 54 | 29120016021 | 固定板 fix plate | 1 |
| 55 | 29120015911 | 操纵箱盖 PS control box cover | 1 |
| 56 | 4014000058 | 螺钉 GB70.1-M6*20EpZn-8.8 screw | 6 |
| 57 | 4011000488 | 螺栓 GB16674-M10*16EpZn-8.8 bolt | 4 |
| 58 | 4120002027 | 先导阀总成 DXS-00 pilot valve assy | 1 |
| 59 | 4011000461 | 螺栓 GB16674-M8*16EpZn-8.8 bolt | 3 |
| 60 | 29120007671 | 管夹 clamp | 3 |
| 61 | 29120015191 | 多路阀进油胶管 multi-way valve inlet oil pipe | 1 |
| 62 | 4041000056 | 分体法兰 LGB117-312550 split flange | 1 |
| 63 | 4030000029 | O 形圈 GB3452.1-37.5*3.55G O-ring | 1 |
| 64 | 4011000475 | 螺栓 GB16674-M10*30EpZn-8.8 bolt | 4 |
| 65 | 4011000056 | 螺栓 GB5782-M12*145EpZn-8.8 bolt | 1 |
| 66 | 29120015201 | 多路阀回油钢管 multi-way valve oil return pipe | 1 |
| 67 | 4011000261 | 螺栓 GB5782-M12*65EpZn-8.8 bolt | 2 |
| 68 | 4011000186 | 螺栓 GB5782-M12*55EpZn-8.8 bolt | 2 |
| 69 | 4011000057 | 螺栓 GB5782-M12*165EpZn-8.8 bolt | 2 |
