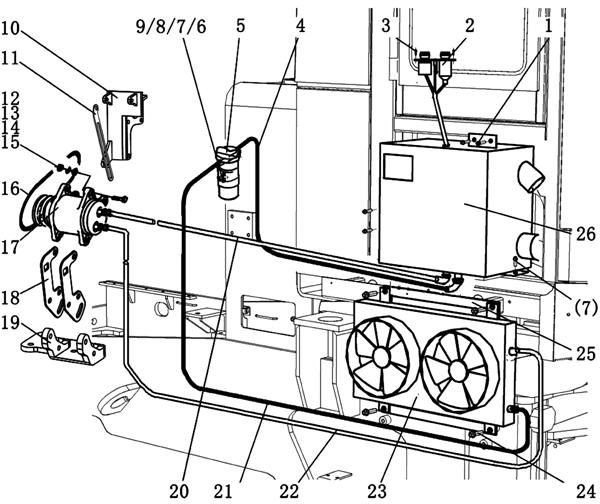

| KEY | PART NO. | DESCRIPTION | QTY |
| 1 | 4011000461 | 螺栓 GB16674-M8*16EpZn-8.8 bolt | 4 |
| 2 | 4130000418 | ZG30.11XG-09 温控器 temperature switch | 1 |
| 3 | 4014000068 | 螺钉 GB845-ST4.2*13-C-H screw | 4 |
| 4 | 4120001515 | 管路：储液罐-蒸发器 2100 pipe from Reservoir – evaporator | 1 |
| 5 | 4130000419 | ZG30.06XG 储液罐 reservoir | 1 |
| 6 | 4190000810 | 储液器卡子 reservoir clamp | 1 |
| 7 | 4011000154 | 螺栓 GB16674-M6*20EpZn-8.8 bolt | 4 |
| 8 | 4015000207 | 垫圈 GB97.1-6EpZn-300HV washer | 1 |
| 9 | 4013000028 | 螺母 GB6170-M6EpZn-8 nut | 1 |
| 10 | 29350007531 | 压缩机支座 air compressor bracket | 1 |
| 11 | 29350007541 | 调节板 adjust plate | 1 |
| 12 | 4011000085 | 螺栓 GB5783-M10*35EpZn-8.8 bolt | 1 |
| 13 | 4013000007 | 螺母 GB6170-M10EpZn-8 nut | 1 |
| 14 | 4015000025 | 垫圈 GB93-10-65Mn washer | 1 |
| 15 | 4015000162 | 垫圈 GB97.1-10EpZn-300HV washer | 1 |
| 16 | 4110000302 | 皮带 A17-510 belt | 1 |
| 17 | 4130000420 | SE5H14 压缩机 air compressor | 1 |
| 18 | 29350007931 | 托板 layer | 2 |
| 19 | 29350007941 | 支座 support | 1 |
| 20 | 4120001516 | 管路：蒸发器-压缩机 3000 pipe from evaporator to compressor | 1 |
| 21 | 4120001514 | 管路：冷凝器-储液罐 2100 pipe from condensator to reservoir | 1 |
| 22 | 4120001513 | 管路：压缩机-冷凝器 3000 pipe from air compressor | 1 |
| 23 | 4130000457 | ZG30L14.05 冷凝器总成 condensator assy | 1 |
| 24 | 4011000447 | 螺栓 GB16674-M10*20EpZn-8.8 bolt | 6 |
| 25 | 29350007922 | 固定板 fix plate | 1 |
| 26 | 4130000633 | 蒸发器总成 evaporator assy | 1 |
| 27 | 4110000301 | 皮带 A17-390 belt | 1 |
