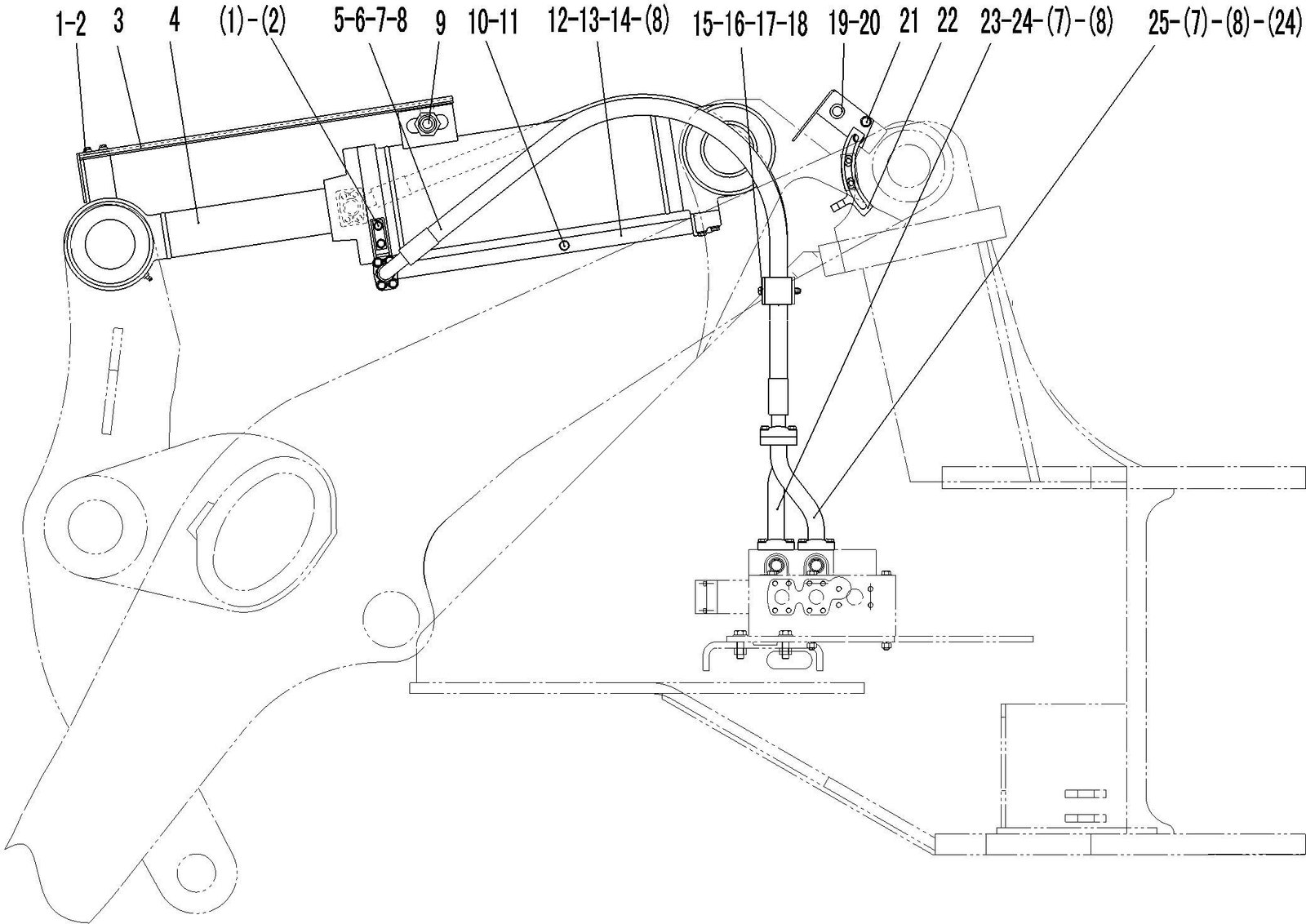

| KEY | PART NO. | DESCRIPTION | QTY |
| 1 | 4011000081 | 螺栓 GB5783-M10*20EpZn-8.8 bolt | 4 |
| 2 | 4015000162 | 垫圈 GB97.1-10EpZn-300HV washer | 4 |
| 3 | 29140010011 | 放平护板 protect plate | 1 |
| 4 | 4120002065 | 转斗油缸 HSGF-200*100*545-1085P tilt cylinder | 1 |
| 5 | 29140009661 | 转斗缸胶管 tilt cylinder hose | 2 |
| 6 | 4041000056 | 分体法兰 LGB117-312550 split flange | 4 |
| 7 | 4011000475 | 螺栓 GB16674-M10*30EpZn-8.8 bolt | 24 |
| 8 | 4030000029 | O 形圈 GB3452.1-37.5*3.55G O-ring | 7 |
| 9 | 4130000607 | 接近开关 J7-D10C2 switch | 1 |
| 10 | 4041000774 | 螺塞 LGB135-01422 plug | 1 |
| 11 | 4041000767 | O 形圈 LGB168-11124 O-ring | 1 |
| 12 | 4011000309 | 螺栓 GB16674-M10*50EpZn-8.8 bolt | 2 |
| 13 | 4011000473 | 螺栓 GB16674-M10*55EpZn-8.8 bolt | 2 |
| 14 | 29140000051 | 转斗缸大腔钢管 tilt cylinder pipe | 1 |
| 15 | 29140000121 | 压板 compression plate | 2 |
| 16 | 29140000131 | 橡胶板 rubber plate | 2 |
| 17 | 29140009291 | 橡胶板 rubber plate | 2 |
| 18 | 4011000528 | 螺栓 GB16674-M10*100EpZn-8.8 bolt | 4 |
| 19 | 4130000679 | 接近开关 J7-D10C2/08 switch | 1 |
| 20 | 29140007541 | 接近开关支架 switch bracket | 1 |
| 21 | 4011000137 | 螺栓 GB16674-M12*20EpZn-8.8 bolt | 4 |
| 22 | 29140007551 | 动臂指示板 arm indicator panel | 1 |
| 23 | 29140000161 | 转斗联过渡钢管 B bucket transitional pipe | 1 |
| 24 | 4041000027 | 分体法兰 LGB117-312551 split flange | 2 |
| 25 | 29140000141 | 转斗联过渡钢管 A bucket transitional pipe | 1 |
