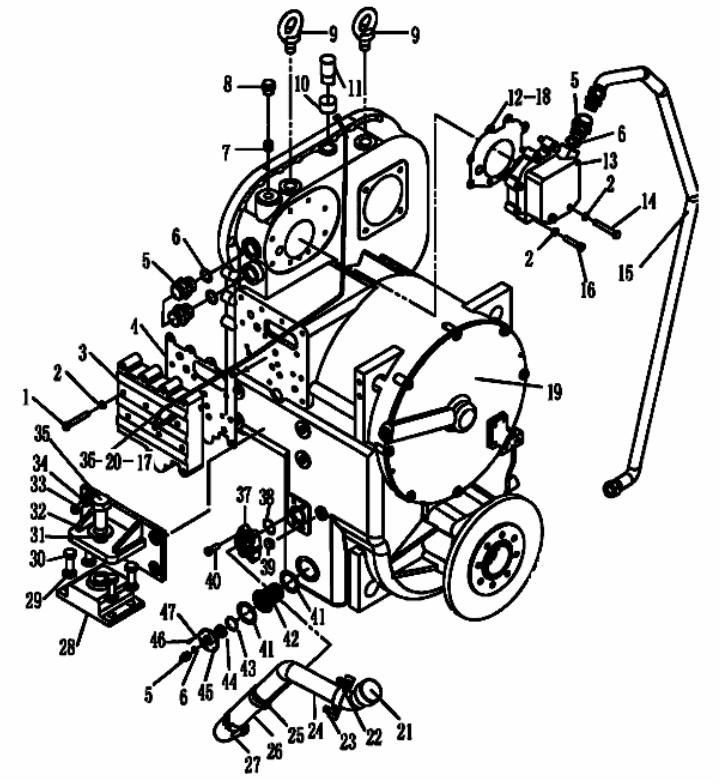

LG956 transmission assy

KEY	PART NO.	DESCRIPTION	QTY
1	4011000174	螺栓 GB21-M10*70EpZn-8.8 bolt	13
2	4015000025	垫圈 GB93-10-65Mn washer	21
3	4120000064	变速操纵阀 LG03-BSF speed control valve	1
4	29050011381	密封垫 seal	1
5	4120000125	接头体 GB3733.2-G28EpZn-35 joint body	4
6	4030000013	O 形圈 GB1235-32*3.1 O-ring	4
7	3030900098	圆柱堵塞 round plugs	1
8	4120000345	螺塞 Q/ZB286-ZG1/2″-Q235A plugs	2
9	4014000030	吊环螺钉 GB825-M20EpZn-20 screw rings	2
10	29050000061	透气管 respirator pipe	1
11	29050000051	透气盖总成 respirator cover	1
12	29050011361	密封垫 seal	1
13	4120000063	变速泵 LG03-BSB speed control pump	1
14	4011000052	螺栓 GB5782-M10*75EpZn-8.8 bolt	2
15	29050000031	变速泵吸油管总成 speed control pump inlet hose	1
16	4011000048	螺栓 GB5782-M10*50EpZn-8.8 bolt	6
17	29010001111	接头 connector	1
18	29050011371	密封垫 seal	1
19	C2-2905001640	A307B 变速箱总成 transmission assy	1
20	3030900101	压力表接头 pressure gauge connector	1
21	29050000261	加油管盖 refueling pipe cover	1
22	29050000091	管夹 hose clamp	1
23	4011000461	螺栓 GB16674-M8*16EpZn-8.8 bolt	2
24	29050012561	弯管 bend	1
25	4017000007	喉箍 JB8870-d60 hose clamp	2
26	4120001003	胶管 JB8406-B38*140 hose	1
27	29050000251	加油弯管 refueling bend	1
28	4110000462	减震器 E400 shock absorber	2
29	4015000181	垫圈 GB97.1-16EpZn-300HV washer	8
30	4011000096	螺栓 GB5783-M16*40EpZn-8.8 bolt	8
31	4015000185	垫圈 GB97.1-27EpZn-300HV washer	2
32	29050012511	变速箱支承 transmission support	2
33	4011000097	螺栓 GB5783-M18*40EpZn-8.8 bolt	8
34	4015000029	垫圈 GB93-18-65Mn washer	8
35	4011000706	螺栓 GB5783-M27*60EpZn-8.8 bolt	2
36	29050012261	变速压力油管 speed control pressure pipe	1
37	4041000056	分体法兰 LGB117-312550 split flange	1
38	4030000029	O 形圈 GB3452.1-37.5*3.55G O-ring	1
39	4190000010	检油塞 LG03-JYS1/4″ checking plug	1
40	4011000475	螺栓 GB16674-M10*30EpZn-8.8 bolt	4
41	3030900232	垫片 washer	2
42	2030900065	滤油器总成 filte	1
43	4015000013	挡圈 GB893.1-70-65Mn collar	1
44	4190000007	环形磁铁 LG03-CT703214 ring magnet	1
45	3030900230	压盖 gland	1
46	4011000106	螺栓 GB5783-M8*25EpZn-8.8 bolt	6
47	4015000036	垫圈 GB93-8-65Mn washer	6
