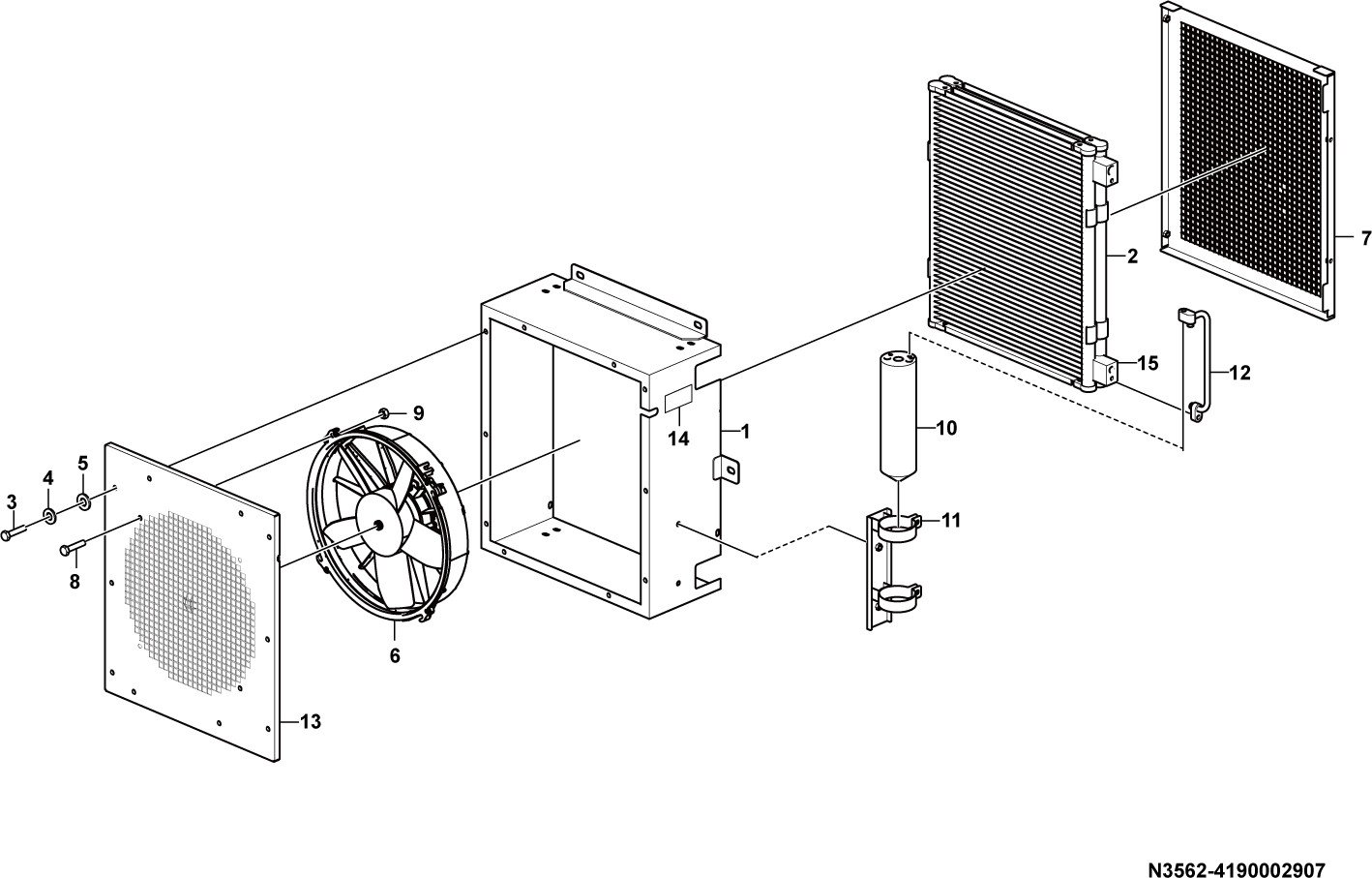

LG956F Parts, Parts & AccessoriesLG956F Air conditioner system (330112) Condenser assembly
| Key |
Part No. |
Description |
Spare parts Y/N |
Qty |
| 1 |
4190002907001 |
Housing |
Y |
1 |
| 2 |
4190002907002 |
Condenser |
Y |
1 |
| 3 |
4011000423 |
Screw |
Y |
27 |
| 4 |
4015000035 |
Spring washer |
Y |
35 |
| 5 |
4015000207 |
Washer |
Y |
41 |
| 6 |
4190002907003 |
Fan |
Y |
1 |
| 7 |
4190002907004 |
Return strainer |
Y |
1 |
| 8 |
4011000778 |
Screw |
Y |
8 |
| 9 |
4013000211 |
Nut |
Y |
6 |
| 10 |
4190002863 |
Reservoir |
Y |
1 |
| 11 |
4190002907006 |
Clamp |
Y |
1 |
| 12 |
4190002907007 |
Hose |
Y |
1 |
| 13 |
4190002907008 |
Plate |
Y |
1 |
| 14 |
4190002907009 |
Name plate |
N |
1 |
| 15 |
4190002907010 |
Plate |
Y |
1 |
