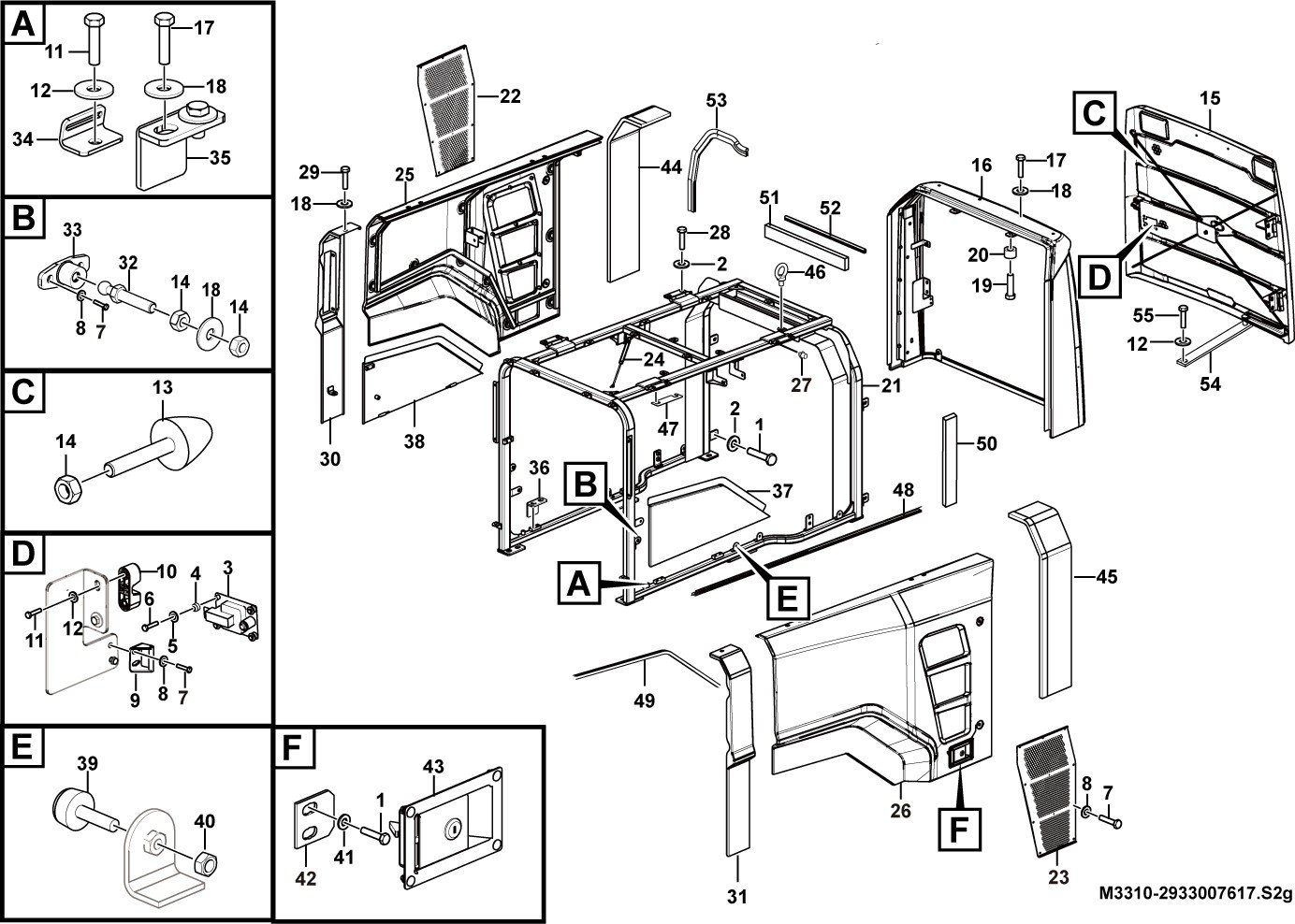

LG956F Cover system Engine bonnet assembly

Key	Part No.	Description	Spare parts Y/N	Qty
1	4011001241	Screw	Y	12
2	4015000427	Washer	Y	16
3	4190002281	Door lock	Y	1
4	4190002284	Washer	Y	4
5	4015000438	Washer	Y	4
6	4011001336	Screw	Y	4
7	4011001285	Screw	Y	28
8	4015000437	Washer	Y	28
9	4190002434	Catch	Y	1
10	11211010	Bump stop	Y	2
11	4011001247	Screw	Y	8
12	4015000425	Washer	Y	9
13	11210576	Bolt	Y	2
14	4013000370	Nut	Y	6
15	29330068752	Grille	Y	1
16	29330068742	Bonnet	Y	1
17	4011001238	Screw	Y	12
18	4015000426	Washer	Y	24
19	4011001251	Screw	Y	2
20	4043001970	Attaching sleeve	Y	2
21	29330076182	Frame	N	1
22	29330077451	Protecting grating	Y	1
23	29330077421	Protecting grating	Y	1
24	4041002547	Gas spring	Y	4
25	29330068731	Cover	Y	1
26	29330068721	Cover	Y	1
27	4030000535	Lubricating nipple	Y	10
28	4011001243	Screw	Y	8
29	4011001248	Screw	Y	8
30	29330074201	Cover	Y	1
31	29330074181	Cover	Y	1
32	29330074891	Ball stud	Y	2
33	29340036401	Rubber frame	Y	2
34	29330077521	Lock strip	Y	2
35	29330074641	Rotor shaft	Y	2
36	29330074631	Rotor shaft	Y	2
37	29330068782	Cover	N	1
38	29330068792	Cover	N	1
39	26330006531	Rubber block	Y	10
40	4013000373	Nut	Y	10
41	4015000428	Washer	Y	4
42	29330000092	Lock plate	Y	2
43	4190003748	Lock	Y	2
44	29330074262	Sponge	Y	1
45	29330081502	Sponge	Y	1
46	4014000139	Screw	Y	4
47	29330075891	Spacer	Y	8
48	29330077461	Sealing strip	Y	2
49	4043001027	Sealing strip	Y	2
50	29330073611	Sponge	Y	2
51	29330076401	Sponge	Y	1
52	4043002572	Sealing strip	Y	1
53	29330077471	Sealing strip	Y	4
54	29330070631	Pull rod	Y	1
55	4011001291	Bolt	Y	1
