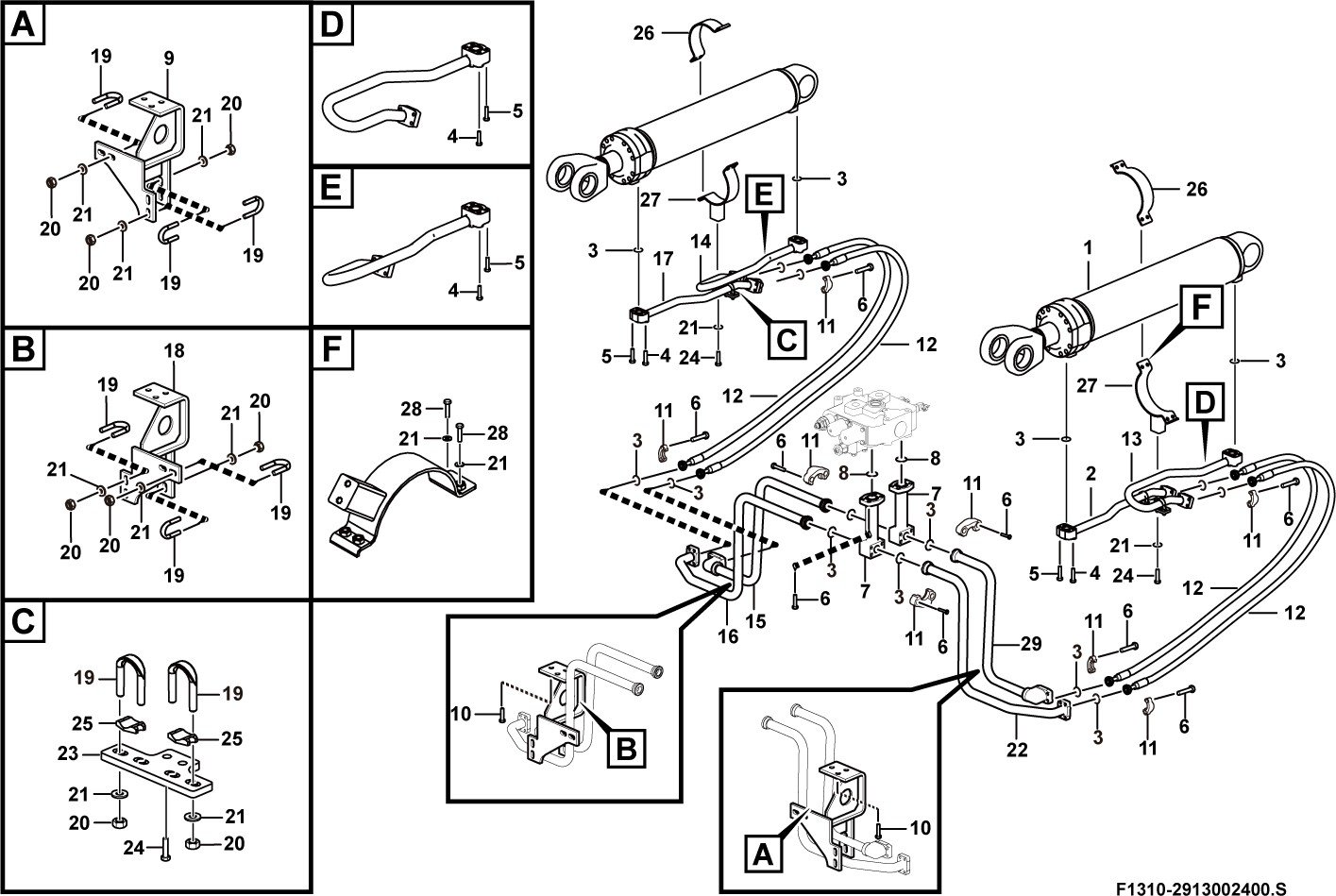

LG956F Implement hydraulic system Lifting cylinder system

Key	Part No.	Description	Spare parts Y/N	Qty
1	4120006628	Boom cylinder	Y	2
2	29130021271	Pipe	Y	1
3	4030000026	O-ring	Y	16
4	4011001298	Screw	Y	8
5	4011001288	Screw	Y	8
6	4011001300	Screw	Y	56
7	29130008152	Pipe	Y	2
8	4030000029	O-ring	Y	2
9	29130011991	Bracket	Y	1
10	4011001299	Screw	Y	6
11	4041000043	Flange half	Y	12
12	4041002661	Hose assembly	Y	4
13	29130021091	Pipe	Y	1
14	29130021131	Pipe	Y	1
15	29130008201	Pipe	Y	1
16	29130015871	Pipe	Y	1
17	29130021291	Pipe	Y	1
18	29130012011	Bracket	Y	1
19	4041001017	U-bolt	Y	10
20	4013000370	Nut	Y	20
21	4015000433	Washer	Y	32
22	29130008221	Pipe	Y	1
23	29130021191	Plate	Y	2
24	4011001248	Screw	Y	4
25	4041001018	Bracket	Y	4
26	29130021971	Clamp	Y	2
27	29130022411	Clamp	Y	2
28	4011001270	Screw	Y	8
29	29130008241	Pipe	Y	1
