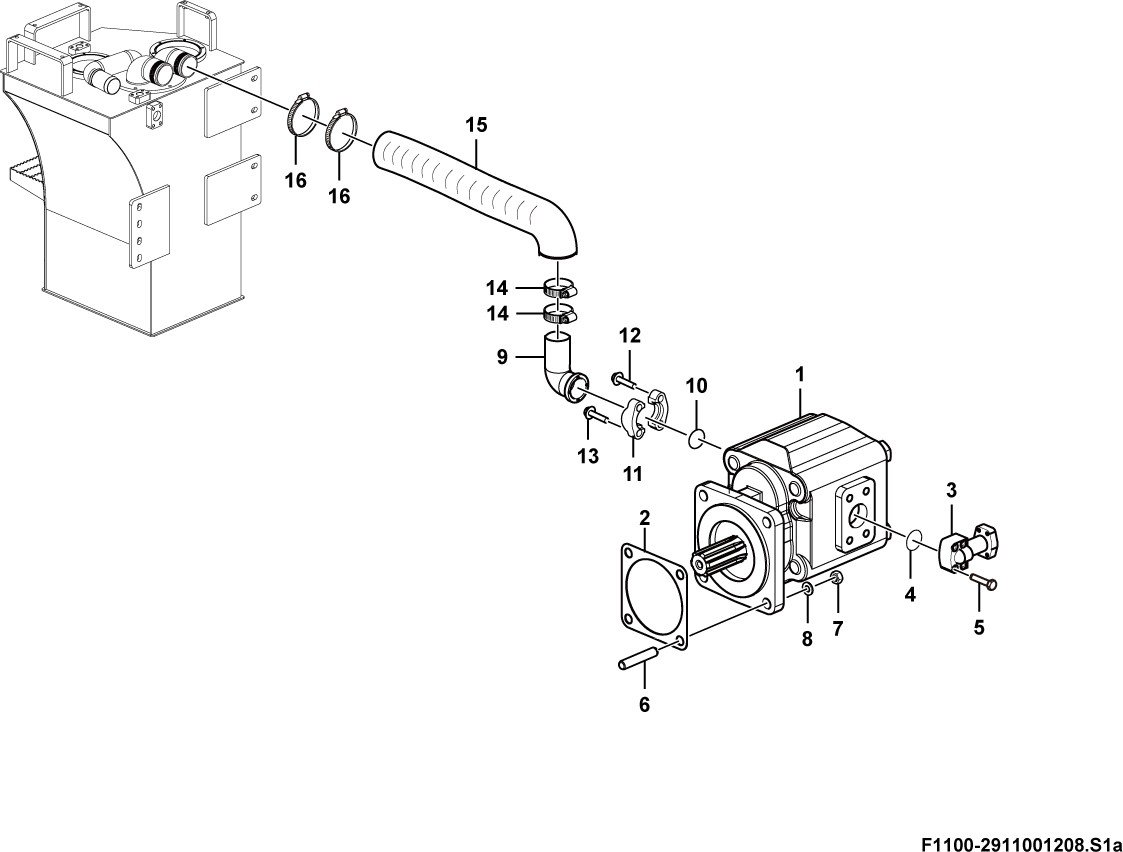

LG956F Parts, Parts & AccessoriesLG956F Implement hydraulic system Working hydraulic pump assembly
| Key |
Part No. |
Description |
Spare parts Y/N |
Qty |
| 1 |
4120002513 |
Gear pump |
Y |
1 |
| 2 |
29110000043 |
Gasket |
Y |
1 |
| 3 |
29110001021 |
Pipe |
Y |
1 |
| 4 |
4030000029 |
O-ring |
Y |
1 |
| 5 |
4011001298 |
Screw |
Y |
4 |
| 6 |
4012000100 |
Stud |
Y |
4 |
| 7 |
4013000397 |
Nut |
Y |
4 |
| 8 |
4015000428 |
Washer |
Y |
4 |
| 9 |
29110012091 |
Pipe |
Y |
1 |
| 10 |
4030000133 |
O-ring |
Y |
1 |
| 11 |
4041000009 |
Flange half |
Y |
1 |
| 12 |
4011001510 |
Screw |
Y |
2 |
| 13 |
4011001244 |
Screw |
Y |
2 |
| 14 |
4017000018 |
Clamp |
Y |
2 |
| 15 |
29110012101 |
Hose |
Y |
1 |
| 16 |
4017000006 |
Clamp |
Y |
2 |
