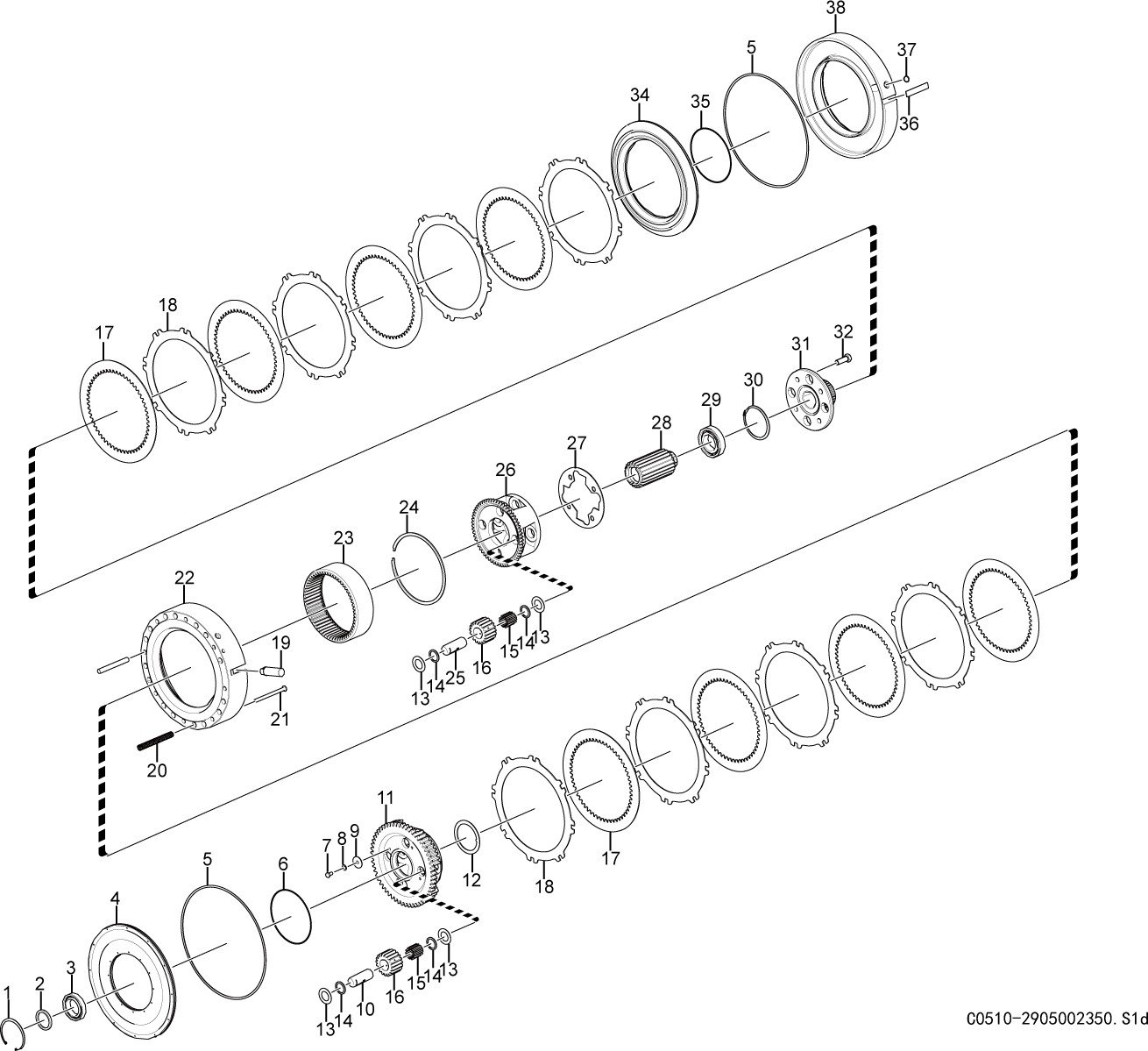

LG956F Transmission system Shaft and clutch assembly

Key	Part No.	Description	Spare parts Y/N	Qty
1	4015000017	Retaining ring	Y	1
2	3030900168	Spacer sleeve	Y	1
3	4021000011	Ball bearing	Y	1
4	3030900139	Piston	Y	1
5	3030900143	Sealing ring	Y	2
6	3030900163	Sealing ring	Y	1
7	3030900170	Screw	Y	4
8	4015000036	Spring washer	Y	4
9	29050023971	Stop washer	Y	4
10	29050023581	Planet gear shaft	Y	4
11	29050023441	Planet carrier	Y	1
12	29050023491	Spacer sleeve	Y	1
13	29050020461	Shim	Y	16
14	29050022651	Retaining ring	Y	16
15	4090000311	Needle roller	Y	200
16	29050023471	Planet gear	Y	8
17	2030900028	Friction disc	Y	9
18	3030900140	Friction disc	Y	9
19	3030900161	Pin	Y	1
20	3030900141	Spring	Y	15
21	3030900142	Pin	Y	15
22	29050026711	Separator	Y	1
23	29050023451	Gear ring	Y	1
24	3030900156	Retaining ring	Y	1
25	29050023571	Planet gear shaft	Y	4
26	29050023431	Planet carrier	Y	1
27	29050022671	Stop plate	Y	1
28	29050023481	Sun gear	Y	1
29	4021000019	Ball bearing	Y	1
30	4015000024	Retaining ring	Y	1
31	29050022711	Flange	Y	1
32	4011001107	Screw	Y	4
33	29050023461	Gear ring	Y	1
34	29050022592	Piston	Y	1
35	3030900113	Sealing ring	Y	1
36	3030900159	Anchor plate	Y	1
37	3030900146	Sealing ring	Y	1
38	3030900145	Clutch cylinder	Y	1
