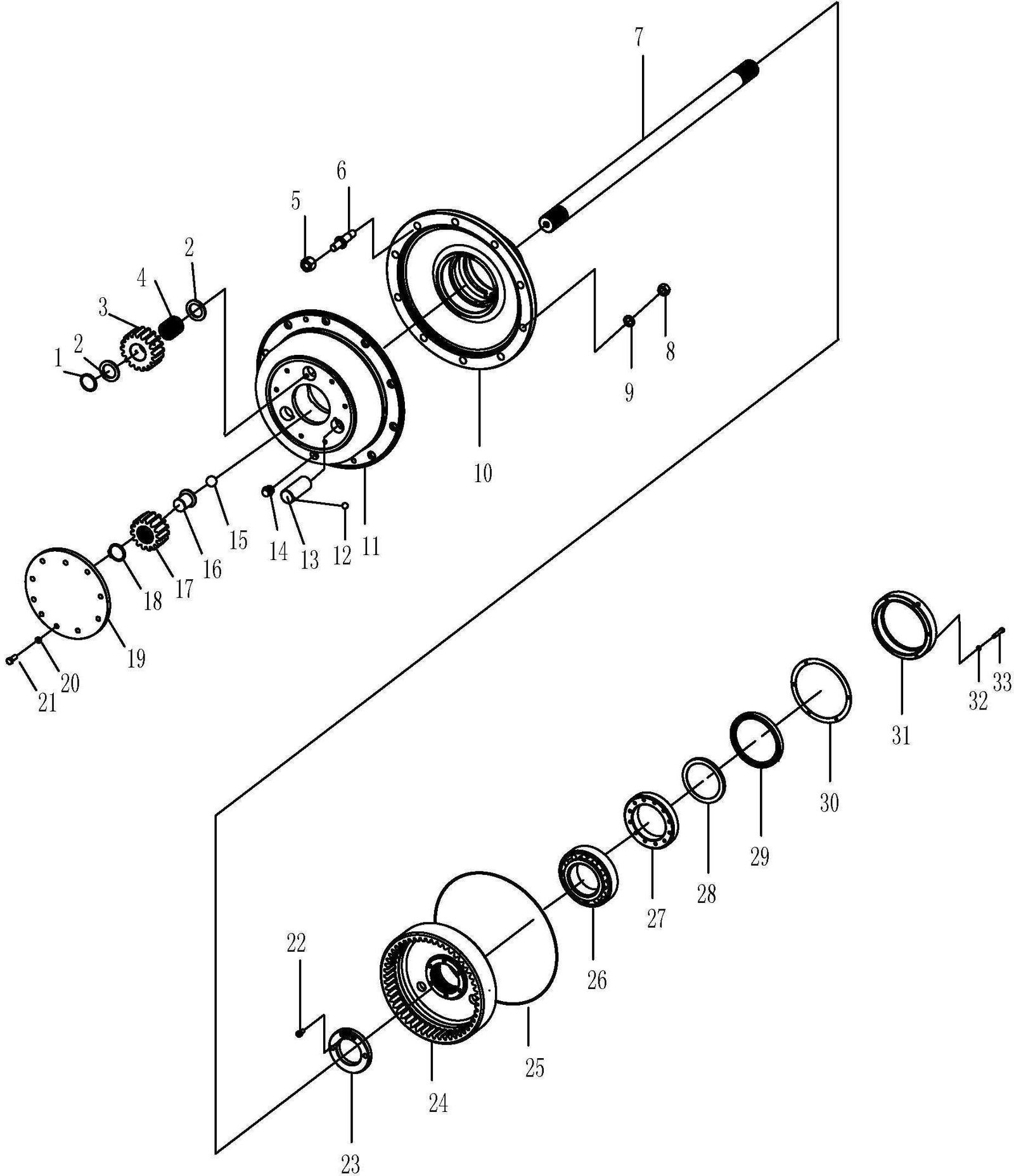

| Key | Part No. | Description | Spare parts Y/N | Qty |
| 1 | 29070000541 | SPACER | Y | 6 |
| 2 | 29070000551 | RETAINER RING | Y | 6 |
| 3 | 29070000561 | PLANET GEAR | Y | 3 |
| 4 | 4090000004 | ROLLER GB309-5*45-GCR15 | Y | 93 |
| 5 | 29070000081 | RIM NUT | Y | 10 |
| 6 | 29070000621 | RIM BOLT | Y | 10 |
| 7 | 29070001281 | DIFFERENTIAL AXLE | Y | 1 |
| 8 | 4013000203 | NUT GB6171-M20*1.5EpZn-10 | N | 10 |
| 9 | 4015000030 | WASHER GB93-20-65Mn | N | 10 |
| 10 | 29070001241 | HUB WHEAL | Y | 1 |
| 11 | 29070007611 | PLANET PINION CARRIER | Y | 1 |
| 12 | 4090000008 | STEEL BALL GB308-9.525-GCR15 | Y | 3 |
| 13 | 29070000611 | PLANET PINION SHAFT | Y | 3 |
| 14 | 4120000080 | PLUG Q/ZB286-ZG3/4″-Q235A | Y | 1 |
| 15 | 4090000006 | STEEL BALL GB308-17.462-GCr15 | Y | 1 |
| 16 | 29070009161 | LOCK BLOCK | Y | 1 |
| 17 | 29070000511 | GEAR-SUN | Y | 1 |
| 18 | 4015000022 | RETAINER RING GB894.1-52-65Mn | N | 1 |
| 19 | 29070007621 | COVER | Y | 1 |
| 20 | 4015000025 | WASHER GB93-10-65Mn | N | 10 |
| 21 | 4011000084 | BOLT GB5783-M10*30EpZn-8.8 | N | 10 |
| 22 | 4014000016 | SCREW GB70-M10*1*20EpZn-8.8 | N | 1 |
| 23 | 29070000571 | ROUND NUT | Y | 1 |
| 24 | 29070000481 | AXLE RING GEAR | Y | 1 |
| 25 | 4041000020 | O-RING LGB308-440*3.5 | Y | 1 |
| 26 | 4021000037 | BEARING GB297-32221 | Y | 1 |
| 27 | 4021000033 | BEARING GB297-32024 | Y | 1 |
| 28 | 29070001261 | ISOLATED BUSHING | Y | 1 |
| 29 | 4030000047 | OIL SEAL HG4-692-PD150*180*16 | Y | 1 |
| 30 | 29070001271 | SPACER | Y | 1 |
| 31 | 29070001231 | COVER OF OIL SAL | Y | 1 |
| 32 | 4015000036 | WASHER GB93-8-65Mn | N | 6 |
| 33 | 4011000298 | BOLT GB5782-M8*45EpZn-8.8 | N | 6 |
