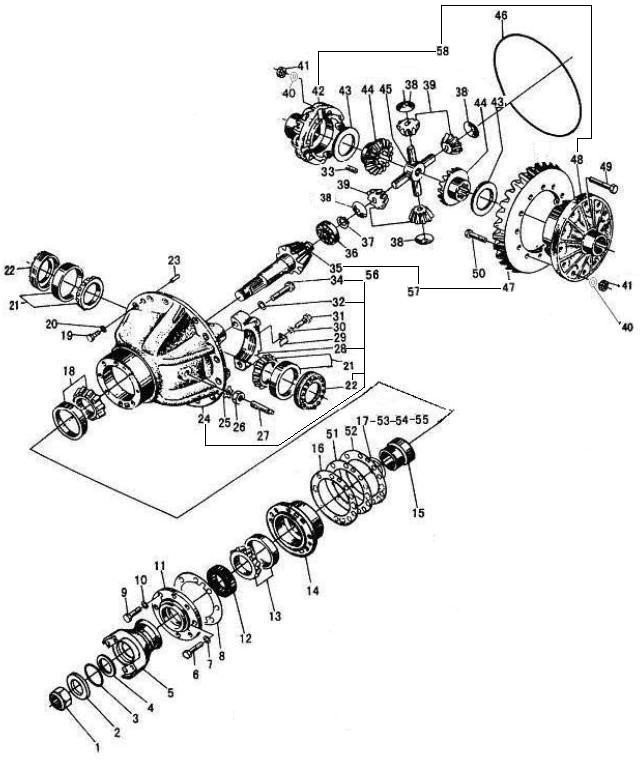

| Key | Part No. | Description | Spare parts Y/N | Qty |
| 1 | 4013000066 | NUT GB889.2-M33*1.5-8 | N | 1 |
| 2 | 29070000221 | WASHER | Y | 1 |
| 3 | 4030000035 | O-RING GB3452.1-53.0*5.30G | Y | 1 |
| 4 | 29070000241 | RETAINER RING | Y | 1 |
| 5 | 29070011091 | INPUT FLANGE | Y | 1 |
| 6 | 4011000067 | BOLT GB5782-M14*55EpZn-8.8 | N | 7 |
| 7 | 4015000027 | WASHER GB93-14-65Mn | N | 7 |
| 8 | 29070000261 | GASKET | Y | 1 |
| 9 | 4011000186 | BOLT GB5782-M12*55EpZn-8.8 | N | 1 |
| 10 | 4015000026 | WASHER GB93-12-65Mn | N | 1 |
| 11 | 29070000251 | SEALING COVER | Y | 1 |
| 12 | 4030000049 | OIL SEAL HG4-692-SG80*100*12 | Y | 1 |
| 13 | 4021000030 | BEARING GB297-31313 | Y | 1 |
| 14 | 29070000271 | BEARING SEAT | Y | 1 |
| 15 | 29070000281 | SHAFT SLEEVE | Y | 1 |
| 16 | 29070000151 | ADJUSTING SHIM | Y | 3 |
| 17 | 29070000181 | SPACER | Y | 2 |
| 18 | 4021000032 | BEARING GB297-31314 | Y | 1 |
| 19 | 4011000494 | BOLT M16*1.5*45EpZn-8.8 | N | 14 |
| 20 | 4015000098 | WASHER GB93-16-65Mn | N | 14 |
| 21 | 4021000036 | BEARING GB297-32216 | Y | 2 |
| 22 | 29070000351 | ADJUSTING NUT | Y | 2 |
| 23 | 4016000124 | PIN GB119.2-10u8*30 | N | 2 |
| 24 | 29070000321 | CARRIER | N | 1 |
| 25 | 29070000311 | LOCKING LEAF | Y | 1 |
| 26 | 4013000052 | NUT GB6173-M27*2-05 | N | 1 |
| 27 | 29070000301 | BOLT | Y | 1 |
| 28 | 29070000391 | CAGE | N | 2 |
| 29 | 29070000401 | LOCKING LEAF | Y | 2 |
| 30 | 4015000025 | WASHER GB93-10-65Mn | N | 2 |
| 31 | 4011000597 | BOLT GB5786-M10*1*20EpZn-8.8 | N | 2 |
| 32 | 29070001301 | WASHER | Y | 4 |
| 33 | 29070000461 | PIN | Y | 4 |
| 34 | 29070009521 | BOLT | Y | 4 |
| 35 | 29070000291 | SPIRAL BEVEL GEAR PINION(LEFT) | N | 1 |
| 36 | 4021000027 | BEARING GB283-NUP2307 | Y | 1 |
| 37 | 4015000020 | RETAINER RING GB894.1-35-65Mn | N | 1 |
| 38 | 29070000331 | WASHER THRUST | Y | 4 |
| 39 | 29070000341 | GEAR PINION | Y | 4 |
| 40 | 29070009511 | WASHER | N | 20 |
| 41 | 4013000198 | NUT GB6176-M16*1.5-10 | N | 20 |
| 42 | 29070000431 | LEFT CASE DIFFERENTIAL MECHANISM | N | 1 |
| 43 | 29070000381 | HALF AXLE GEAR SPACER | Y | 2 |
| 44 | 29070000371 | HALF AXLE GEAR | Y | 2 |
| 45 | 29070000411 | CROSS AXLE | Y | 1 |
| 46 | 4041000019 | O-RING LGB308-430*3.5 | Y | 1 |
| 47 | 29070000451 | LARGE SPRIAL BEVELGEAR (RIGHT) | N | 1 |
| 48 | 29070000361 | RIGHT CASE DIFFERENTIAL MECHANISM | N | 1 |
| 49 | 29070009491 | BOLT | Y | 8 |
| 50 | 29070009501 | BOLT | Y | 12 |
| 51 | 29070000161 | ADJUSTING SHIM | Y | 4 |
| 52 | 29070000171 | ADJUSTING SHIM | Y | 5 |
| 53 | 29070000191 | SPACER | Y | 2 |
| 54 | 29070000201 | SPACER | Y | 3 |
| 55 | 29070000211 | SPACER | Y | 3 |
| 56 | 2050900104 | CARRIER ASSEMBLY-371102 | Y | 1 |
| 57 | 2050900107 | FRONT SPIRAL BEVEL GEAR PINION | Y | 1 |
| 58 | 2050900079 | LEFT 、RIGHT CASE DIFFERENTIAL MECHANISM | Y | 1 |
