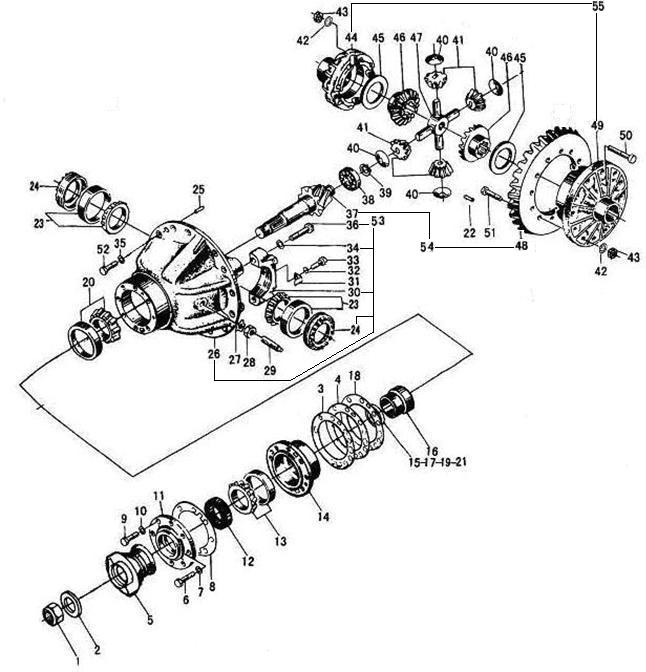

LG956L AXLE SYSTEM REAR AXLE MAIN DRIVE ASS’Y

Key	Part No.	Description	Spare parts Y/N	Qty
1	4013000066	NUT GB889.2-M33*1.5-8	N	1
2	29070001121	WASHER	Y	1
3	29070001181	ADJUSTING SHIM	Y	3
4	29070001191	ADJUSTING SHIM	Y	4
5	29090008121	INPUT FLANGE	Y	1
6	4011000067	BOLT GB5782-M14*55EpZn-8.8	N	7
7	4015000027	WASHER GB93-14-65Mn	N	7
8	29070001161	GASKET	Y	1
9	4011000186	BOLT GB5782-M12*55EpZn-8.8	N	1
10	4015000026	WASHER GB93-12-65Mn	N	1
11	29070001141	SEALING COVER	Y	1
12	4030000049	OIL SEAL HG4-692-SG8010012	Y	1
13	4021000030	BEARING GB297-31313	Y	1
14	29070001171	BEARING SEAT	Y	1
15	29070000181	SPACER	Y	2
16	29070001151	SHAFT SLEEVE	Y	1
17	29070000191	SPACER	Y	2
18	29070001201	ADJUSTING SHIM	Y	5
19	29070000201	SPACER	Y	3
20	4021000032	BEARING GB297-31314	Y	1
21	29070000211	SPACER	Y	3
22	29070000461	PIN	Y	4
23	4021000036	BEARING GB297-32216	Y	2
24	29070000351	ADJUSTING NUT	Y	2
25	4016000124	PIN GB119.2-10u8*30	N	2
26	29070001221	CARRIER	N	1
27	29070000311	LOCKING LEAF	Y	1
28	4013000052	NUT GB6173-M27*2-05	N	1
29	29070000301	BOLT	Y	1
30	29070000391	CAGE	N	2
31	29070000401	LOCKING LEAF	Y	2
32	4015000025	WASHER GB93-10-65Mn	N	2
33	4011000597	BOLT GB5786-M10120EpZn-8.8	N	2
34	29070001301	WASHER	Y	4
35	4015000098	WASHER GB93-16-65Mn	N	14
36	29070009521	BOLT	Y	4
37	29090001091	SPIRAL BEVEL GEAR PINION(RIGHT)	N	1
38	4021000027	BEARING GB283-NUP2307	Y	1
39	4015000020	RETAINER RING GB894.1-35-65Mn	N	1
40	29070000331	WASHER THRUST	Y	4
41	29070000341	GEAR PINION	Y	4
42	29070009511	WASHER	N	20
43	4013000198	NUT GB6176-M16*1.5-10	N	20
44	29070000431	LEFT CASE DIFFERENTIAL MECHANISM	N	1
45	29070000381	HALF AXLE GEAR SPACER	Y	2
46	29070000371	HALF AXLE GEAR	Y	2
47	29070000411	CROSS AXLE	Y	1
48	29090000081	LARGE SPRIAL BEVELGEAR (LEFT)	N	1
49	29070000361	RIGHT CASE DIFFERENTIAL MECHANISM	N	1
50	29070009491	BOLT	Y	8
51	29070009501	BOLT	Y	12
52	4011000126	BOLT GB5786-M161.540EpZn-8.8	N	14
53	7300000160	CARRIER ASSEMBLY	Y	1
54	3050900203	REAR LARGE SPRIAL BEVELGEAR	Y	1
55	2050900079	LEFT 、RIGHT CASE DIFFERENTIAL MECHANISM	Y	1
