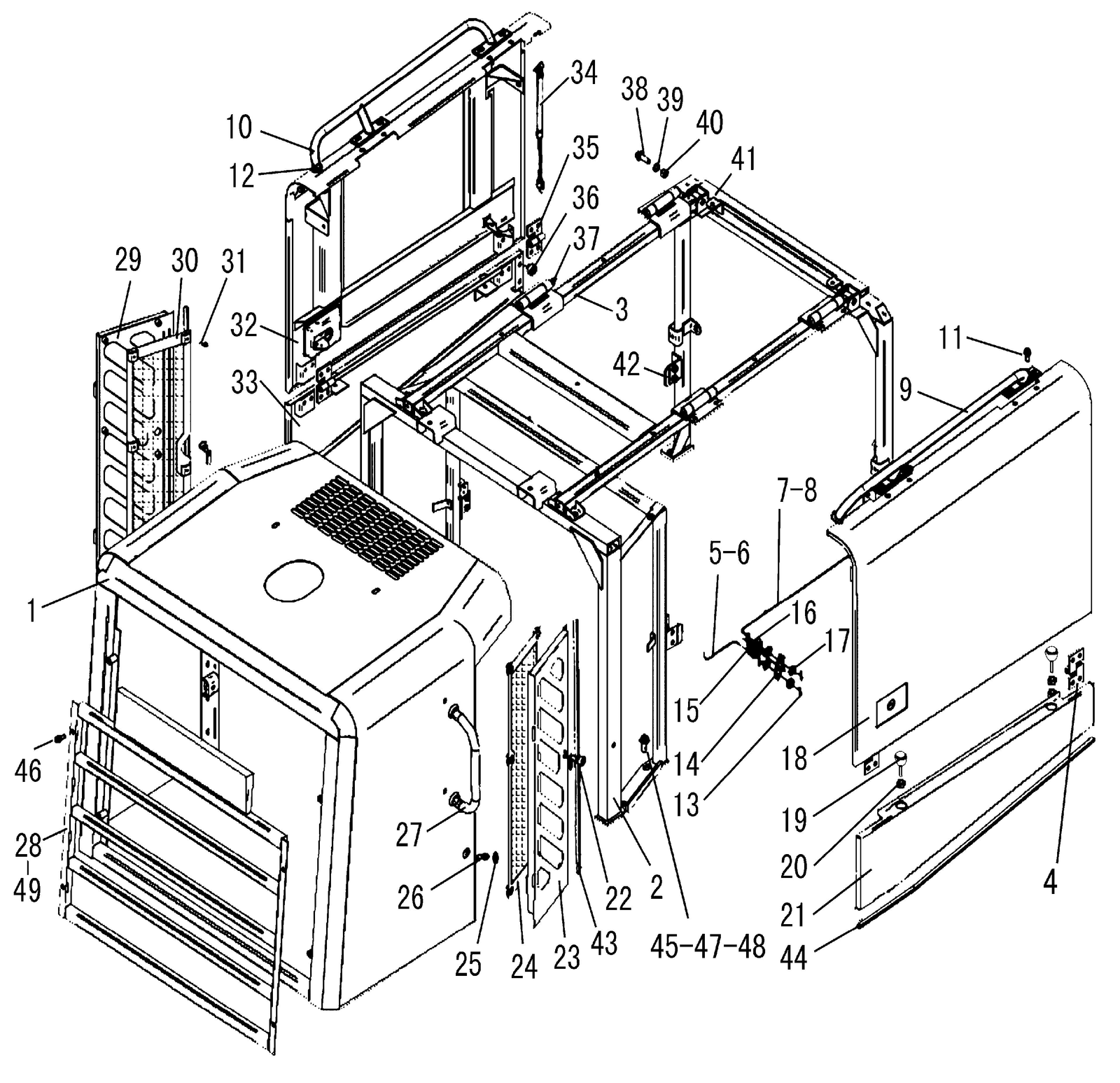

LG956L CONVER SYSTEM HOOD OF DIESEL ENGINE ASSEMBLY

Key	Part No.	Description	Spare parts Y/N	Qty
1	29330018441	REAR HOOD	Y	1
2	29330016241	REAR BRACKET	N	1
3	29330016401	UP BRACKET	N	1
4	4011000447	BOLT GB16674-M10*20EpZn-8.8	N	18
5	29330000171	SHORT LINK (RIGHT)	N	1
6	29330000181	SHORT LINK (LEFT)	N	1
7	29330016671	LEFT LONG LINK	N	1
8	29330016681	RIGHT LONG LINK	N	1
9	29330016461	RIGHT UPPER HANDRAIL	Y	1
10	29330016441	LEFT UPPER HANDRAIL	Y	1
11	4011000477	BOLT GB16674-M12*35EpZn-8.8	N	8
12	29330011232	RUBBER COVER	N	2
13	4016000114	PIN GB91-2*16EpZn-Q235A	N	16
14	29330000241	TURN PLATE	N	2
15	4016000119	PIN GB91-3.2*16EpZn-Q235A	N	2
16	4015000162	WASHER GB97.1-10EpZn-300HV	N	8
17	4015000207	WASHER GB97.1-6EpZn-300HV	N	16
18	29330016551	RIGHT SIDE DOOR	Y	1
19	29330001511	PAD BLOCK	N	4
20	4013000007	NUT GB6170-M10EpZn-8	N	8
21	29330016651	RIGHT HOOD	Y	1
22	4190000916	LOCK NBS5013A	Y	2
23	29330016731	RIGHT HALFTONE	Y	1
24	29330018731	HALFTONE	Y	1
25	29330000201	RUBBER COVER	N	2
26	4011000560	BOLT GB16674-M12*25EpZn-8.8	N	25
27	29330001891	HANDRAIL	N	2
28	29330018742	WINDOW PILLAR	Y	1
29	29330016691	LEFT HALFTONE	Y	1
30	29330018691	HALFTONE	Y	1
31	4130000075	BOLT GB16674-M6*12EpZn-8.8	N	12
32	29330016481	LEFT SIDE DOOR ASS’Y	Y	1
33	29330016631	LEFT HOOD	Y	1
34	29330014621	AIR SPRING	Y	4
35	29330001531	HINGE	Y	4
36	29330001541	RUBBER PAD	N	4
37	4030000535	OIL CUP JB7940.1-M6	N	4
38	4011000151	BOLT GB16674-M16*80EpZn-8.8	N	2
39	4015000181	WASHER GB97.1-16EpZn-300HV	N	2
40	4013000016	NUT GB6170-M16EpZn-8	N	2
41	29330016611	FRONT BRACKET	N	1
42	29330000092	FRONT LOCK PLATE	N	4
43	29330016821	CLIP RUBBER BAR	Y	2
44	4030000574	CLIP RUBBER BAR GB7526-1100	Y	2
45	4011000146	BOLT GB16674-M16*30EpZn-8.8	N	8
46	4011000081	BOLT GB5783-M10*20EpZn-8.8	N	4
47	29330020211	SPACER	N	6
48	29330020221	SPACER	N	6
49	29330019431	WINDOW PILLAR	Y	1
50	29330015101	HOOD OF DIESEL ENGINE ASSEMBLY	Y	1
