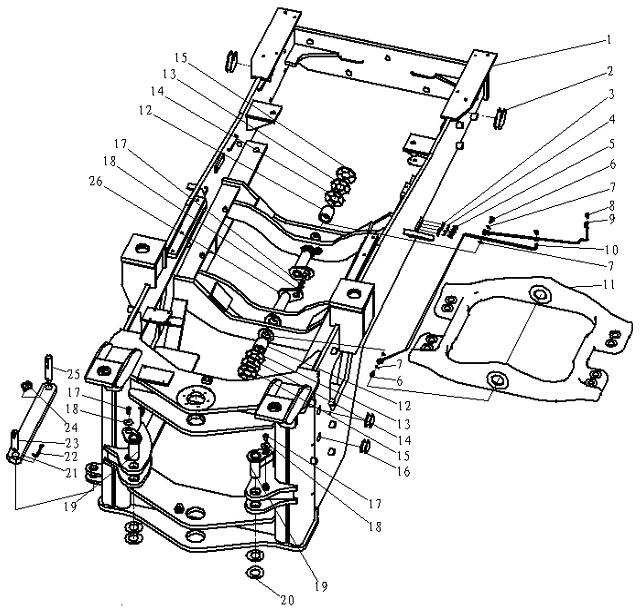

| Key | Part No. | Description | Spare parts Y/N | Qty |
| 1 | 29260012511 | REAR FRAME | Y | 1 |
| 2 | 29270008751 | RUBBER LAGGING | Y | 2 |
| 3 | 29250000311 | Plate | Y | 2 |
| 4 | 4015000035 | WASHER GB93-6-65Mn | N | 4 |
| 5 | 4014000024 | SCREW GB818-M6*10EpZn-4.8 | N | 4 |
| 6 | 29250000291 | BOLT | Y | 2 |
| 7 | 29250000301 | WASHER | Y | 4 |
| 8 | 4030000065 | GREASE NIPPLE JB7940.1-M10*1 | Y | 2 |
| 9 | 29270008731 | OIL TUBE | Y | 1 |
| 10 | 29270008711 | OIL TUBE | Y | 1 |
| 11 | 29270008691 | OSCILLATING FRAME | Y | 1 |
| 12 | 29270001031 | BUSH | Y | 2 |
| 13 | 29270001051 | ADJUST SPACER | Y | 2 |
| 14 | 29270001071 | ADJUST SPACER | Y | 2 |
| 15 | 29270001061 | ADJUST SPACER | Y | 2 |
| 16 | 29270008781 | RUBBER SLEEVE | Y | 2 |
| 17 | 4011000197 | BOLT GB5783-M12*30EpZn-8.8 | N | 4 |
| 18 | 4040000001 | WASHER LGB001-12*45*6 | Y | 4 |
| 19 | 4043000011 | PIN LGB301-50d9*N*140-40Cr | Y | 2 |
| 20 | 4043000032 | SPACER LGB303-50*90*1 | Y | 4 |
| 21 | 29270008911 | MOUNT BAR | Y | 1 |
| 22 | 4016000043 | SPLIT PINGB91-8*80EpZn-Q235A | N | 1 |
| 23 | 29270000121 | FRONT PIN OF MOUNT BAR | Y | 1 |
| 24 | 29270000081 | HOLDING RING | Y | 1 |
| 25 | 29270000091 | REAR PIN OF MOUNT BAR | Y | 1 |
| 26 | 29270008761 | PIN | Y | 2 |
