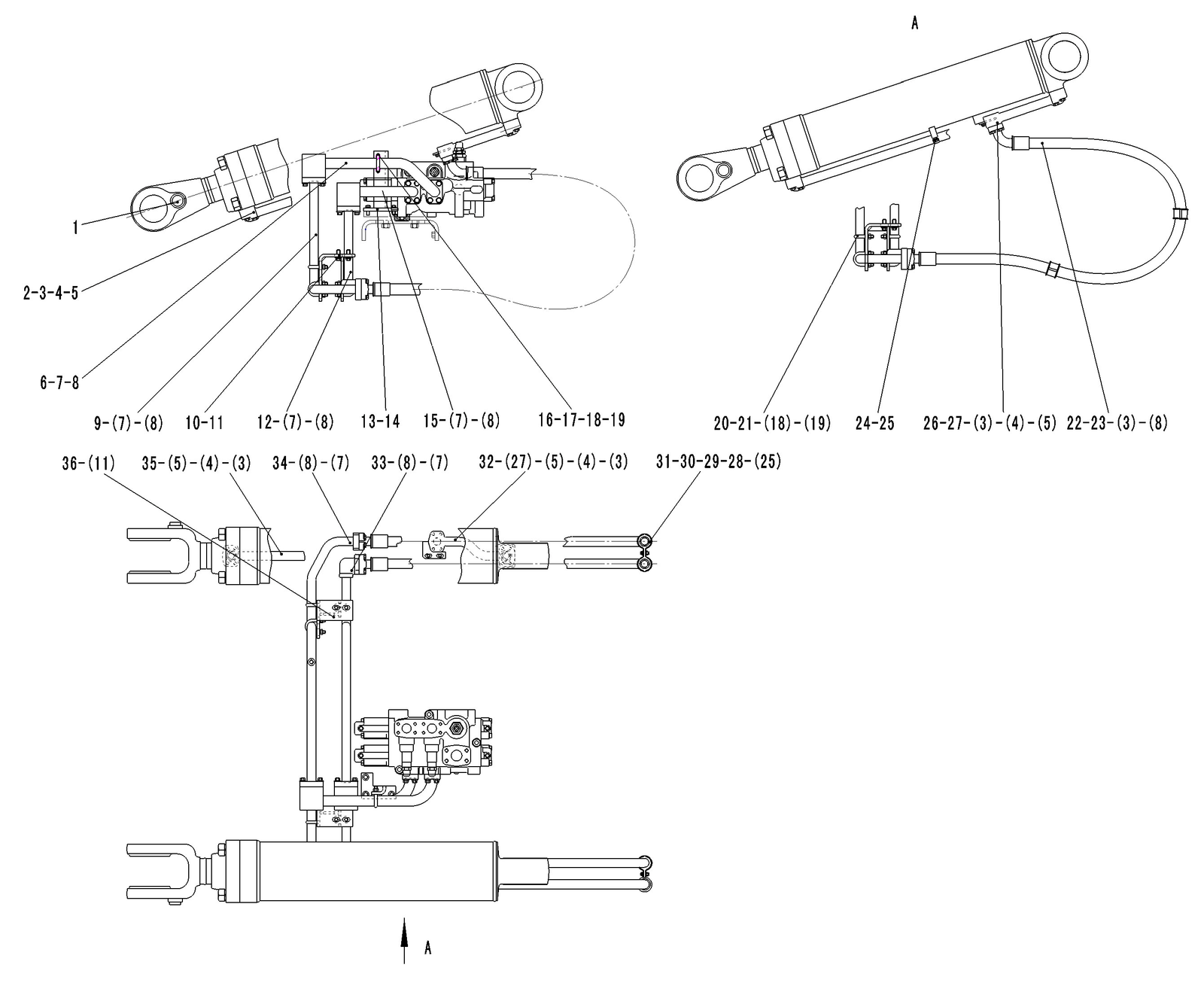

| Key | Part No. | Description | Spare parts Y/N | Qty |
| 1 | 4120002263 | LIFTING CYLINDER HSGF-170*90*767-1427 | Y | 2 |
| 2 | 29130012321 | SMALL CHAMBER TUBE OF LEFT LIFT ARM CYLINDER | Y | 1 |
| 3 | 4030000026 | O-RING GB3452.1-32.5*3.55G | Y | 12 |
| 4 | 4011000473 | BOLT GB16674-M10*55EpZn-8.8 | N | 8 |
| 5 | 4011000309 | BOLT GB16674-M10*50EpZn-8.8 | N | 8 |
| 6 | 29130010861 | THREE-WAY OIL TUBE | Y | 1 |
| 7 | 4030000029 | O-RING GB3452.1-37.5*3.55G | Y | 6 |
| 8 | 4011000475 | BOLT GB16674-M10*30EpZn-8.8 | N | 56 |
| 9 | 29130010891 | OIL TUBE OF LIFTING CYLINDER (L) | Y | 1 |
| 10 | 29130010741 | FIX PLATE（L） | Y | 1 |
| 11 | 4011000479 | BOLT GB16674-M12*30EpZn-8.8 | N | 4 |
| 12 | 29130010961 | OIL TUBE OF LIFTING CYLINDER (L) | Y | 1 |
| 13 | 29130011001 | BRACKET | Y | 1 |
| 14 | 4011000474 | BOLT GB16674-M10*25EpZn-8.8 | N | 3 |
| 15 | 29130010981 | THREE-WAY OIL TUBE | Y | 1 |
| 16 | 4041001141 | U-BOLT LGB159-03646 | Y | 1 |
| 17 | 4041001142 | PADDING LGB160-3646 | Y | 1 |
| 18 | 4013000007 | NUT GB6170-M10EpZn-8 | N | 14 |
| 19 | 4015000162 | WASHER GB97.1-10EpZn-300HV | N | 14 |
| 20 | 4041000958 | U-BOLT LGB159-03040 | Y | 6 |
| 21 | 4041001018 | PLATE LGB160-3040 | Y | 6 |
| 22 | 29130010571 | OIL PIPE OF LIFTING CYLINDER | Y | 4 |
| 23 | 4041000043 | FLANGE LGB117310490 | Y | 8 |
| 24 | 29130000111 | CLAMP | Y | 2 |
| 25 | 4011000458 | BOLT GB16674-M8*20Ep.Zn-8.8 | N | 8 |
| 26 | 29130012361 | BIG CHAMBER TUBE OF LEFT LIFT ARM CYLINDER | Y | 1 |
| 27 | 4011000488 | BOLT GB16674-M10*16EpZn-8.8 | N | 4 |
| 28 | 29130010371 | CLAMP | Y | 8 |
| 29 | 4041000869 | CUSHION LGB123-0740 | Y | 8 |
| 30 | 4013000033 | NUT GB6170-M8EpZn-8 | N | 4 |
| 31 | 4015000072 | WASHER GB97.1-8EpZn-300HV | N | 4 |
| 32 | 29130012381 | RIGHT LIFTING CYLINDER BIG CHAMBER TUBE | Y | 1 |
| 33 | 29130010941 | OIL TUBE OF LIFTING CYLINDER (R) | Y | 1 |
| 34 | 29130010921 | OIL TUBE OF LIFTING CYLINDER (R) | Y | 1 |
| 35 | 29130012341 | RIGHT LIFTING CYLINDER SMALL CHAMBER TUBE | Y | 1 |
| 36 | 29130010701 | FIX PLATE（R） | Y | 1 |
