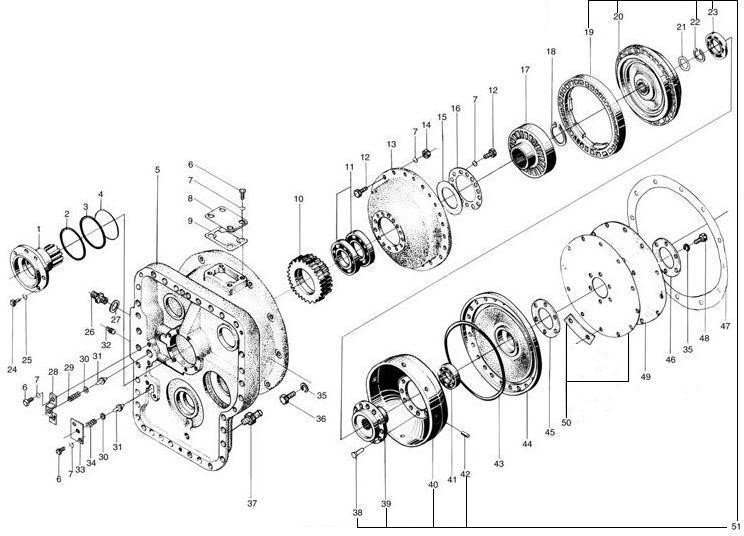

| Key |
Part No. |
Description |
Spare parts Y/N |
Qty |
| 1 |
4110000011081 |
STATOR SEAT YB315Z5-13A |
Y |
1 |
| 2 |
4110000011082 |
SEAL RING YB315Z5-33 |
Y |
1 |
| 3 |
4110000011083 |
SEAL RING YB315Z5-12 |
N |
1 |
| 4 |
4110000011084 |
SPRING WASHER YB315Z5-25 |
N |
1 |
| 5 |
4110000011085 |
HOUSING YB315Z5-08A |
Y |
1 |
| 6 |
4110000011086 |
BOLT M8*16 01010-50816 |
Y |
8 |
| 7 |
4110000011087 |
WASHER 801602-10825 |
Y |
4 |
| 8 |
4110000011088 |
FILLER YB315Z5-06A |
Y |
1 |
| 9 |
4110000011089 |
SPACER YB315Z5-07 |
Y |
1 |
| 10 |
4110000518016 |
GEAR YJSW315-8B-00001 |
Y |
1 |
| 11 |
4021000076 |
BEARING GB276-6017 |
Y |
2 |
| 12 |
4110000011091 |
BOLT M8*35 01010-50835 |
Y |
38 |
| 13 |
4110000518001 |
IMPELLER YJSW315-8A-00003 |
Y |
1 |
| 14 |
4110000518002 |
NUT 01580-00806 M8 |
Y |
24 |
| 15 |
4110000011121 |
ADJUSTING SPACER YB315Z5-35 |
Y |
1 |
| 16 |
4110000011094 |
COMPRESSING SHIM YB315Z5-22A |
Y |
1 |
| 17 |
4110000518003 |
STATOR YJSW315-8A-00002 |
Y |
1 |
| 18 |
4015000208 |
RETAINER RING GB894.1-85-65Mn |
N |
1 |
| 19 |
4110000518005 |
FIRST-STAGETURNINE YJSW315-8A-10001 |
N |
1 |
| 20 |
4110000518006 |
SECOND-STAGE TURBINE YJSW315-8A-11000 |
N |
1 |
| 21 |
4110000011096 |
ADJUSTING SHIM YB315Z5-30/31/32 |
Y |
1 |
| 22 |
4110000011125 |
RETAINER RING 52 YB315Z5.1-5 |
N |
1 |
| 23 |
4021000155 |
BEARING 6013 |
N |
1 |
| 24 |
4011000663 |
BOLT GB21-M10*25EpZn-8.8 |
N |
9 |
| 25 |
4110000011097 |
WASHER 10 01602-11030 |
Y |
2 |
| 26 |
4110000518008 |
FITTING YB315Z5-14S |
Y |
2 |
| 27 |
4110000011128 |
WASHER 07003-03036 |
Y |
1 |
| 28 |
4110000011100 |
VALVE CAP YB315Z5-17A |
Y |
1 |
| 29 |
4110000011101 |
SPRING YB315Z5-18A |
Y |
1 |
| 30 |
4110000011102 |
ADJUSTING SHIM YB315Z5-16.21 |
Y |
3 |
| 31 |
4110000011103 |
VALVE ROD YB315Z5-26A |
Y |
2 |
| 32 |
4110000011104 |
PLUG YB315Z5-15L |
Y |
1 |
| 33 |
4110000011105 |
PRESS PLATE YB315Z5-19A |
Y |
1 |
| 34 |
4110000011106 |
SPRING YB315Z5-20 |
Y |
1 |
| 35 |
4110000011108 |
WASHER 01602-11236 12 |
Y |
1 |
| 36 |
4110000011109 |
BOLT M12*45 01010-51245 |
Y |
1 |
| 37 |
4110000011129 |
PIPE JOINT YB315Z5-24K |
Y |
1 |
| 38 |
4019000063 |
RIVET GB869-8*15 |
N |
1 |
| 39 |
4110000011131 |
TURBINE WHEEL YB315Z5.1-1 |
N |
1 |
| 40 |
4110000518011 |
TURBINE COVER YJSW315-8A-12001 |
N |
1 |
| 41 |
4021000018 |
BEARING GB276-6210 |
Y |
1 |
| 42 |
4110000011134 |
PIN YB315Z5.1-4A |
N |
1 |
| 43 |
4030000712 |
O-RING GB3452.1-365*3.55G |
Y |
1 |
| 44 |
4110000518013 |
WHEEL SHELL YJSW315-8A-00001 |
Y |
1 |
| 45 |
4110000011113 |
ADJUSTING SHIM YB315Z5-34 |
Y |
1 |
| 46 |
4110000011116 |
RING PALLET YB315Z5-04 |
Y |
1 |
| 47 |
4110000011118 |
MAT YB315Z5-05 |
Y |
1 |
| 48 |
4110000011117 |
BOLT M12*30 01010-51230 |
Y |
6 |
| 49 |
4110000011115 |
ELASTIC PLATE |
N |
2 |
| 50 |
4110000011114 |
ELASTIC PLATE ASSEMBLY YJSW315-20000 |
N |
1 |
| 51 |
4110000518015 |
TURBINE SUBASSEMBLY YJSW315-8A-10000 |
Y |
1 |
