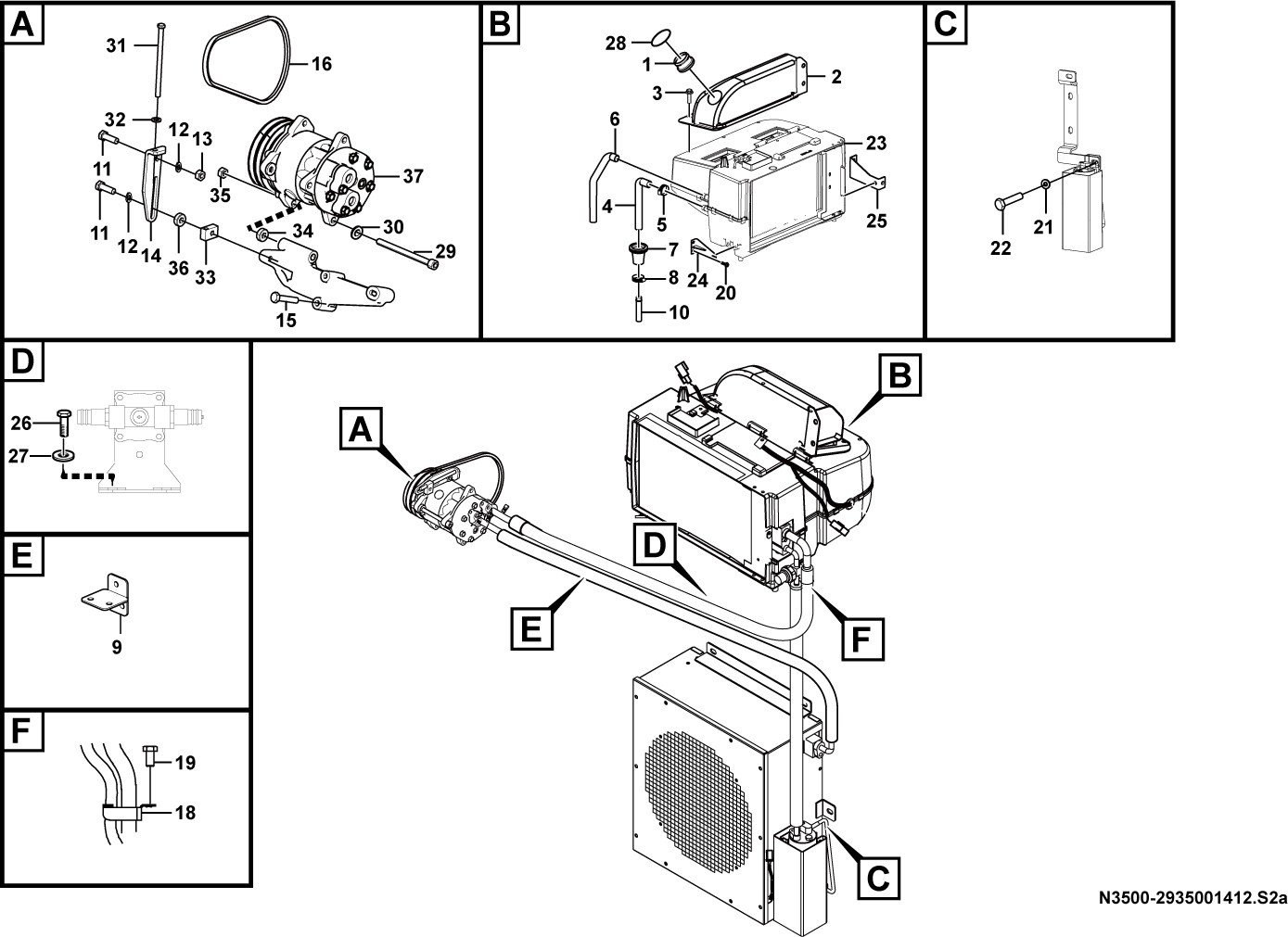

| Key | Part No. | 名称 | Description | Spare parts Y/N | Qty |
| 1 | 29350010611 | 空调出风口 | Air duct | Y | 1 |
| 2 | 29350010601 | 空调接口风道 | Air duct | Y | 1 |
| 3 | 4011001343 | 螺栓GB16674.1-M6*12flZnyc-8.8-480 | Screw | Y | 3 |
| 4 | 29350010321 | 进水管 | Hose | Y | 1 |
| 5 | 4017000024 | 环箍QC390-D26 | Clamp | Y | 4 |
| 6 | 29350010311 | 出水管 | Hose | Y | 1 |
| 7 | 29310022301 | 橡胶套 | Rubber sleeve | Y | 2 |
| 8 | 4190000019 | 扎丝LG13-ZS3*150 | Cable tie | Y | 5 |
| 9 | 29350013501 | 支架 | Bracket | Y | 1 |
| 10 | 29350010291 | 过渡管 | Copper tube | Y | 1 |
| 11 | 4011001341 | 螺栓GB5783-M8*40flZnyc-10.9-480 | Screw | Y | 2 |
| 12 | 4015000430 | 垫圈GB97.1-8flZnyc-300HV-480 | Washer | Y | 7 |
| 13 | 4013000384 | 螺母GB889.1-M8flZnyc-8-480 | Nut | Y | 1 |
| 14 | 29350011041 | 支架 | Bracket | Y | 1 |
| 15 | 4011001340 | 螺栓GB16674.1-M8*50flZnyc-10.9-480 | Screw | Y | 3 |
| 16 | 4110000347 | 压缩机皮带A17-410 | Belt | Y | 1 |
| 17 | 28250005602 | 走线胶套 | Rubber cover | Y | 1 |
| 18 | 29350011401 | 管卡 | Clamp | Y | 1 |
| 19 | 4011001246 | 螺栓GB5783-M8*16flZnyc-8.8-480 | Screw | Y | 1 |
| 20 | 4011001296 | 螺栓GB16674.1-M8*20flZnyc-8.8-480 | Screw | Y | 6 |
| 21 | 4015000433 | 垫圈GB97.1-10flZnyc-300HV-480 | Washer | Y | 4 |
| 22 | 4011001248 | 螺栓GB5783-M10*25flZnyc-8.8-480 | Screw | Y | 4 |
| 23 | 29350011952 | L958F空调系统 | Air conditioning unit | Y | 1 |
| 24 | 29350012571 | 支架 | Bracket | Y | 1 |
| 25 | 29350010241 | 支架 | Bracket | Y | 1 |
| 26 | 4011001238 | 螺栓GB5783-M10*20flZnyc-8.8-480 | Screw | Y | 4 |
| 27 | 4015000426 | 垫圈GB96.1-10flZnyc-300HV-480 | Washer | Y | 4 |
| 28 | 4017000007 | 喉箍JB8870-d60 | Clamp | Y | 1 |
| 29 | 4014000536 | 螺钉GB70.1-M10*130flZnyc-10.9-480 | Screw | Y | 1 |
| 30 | 4015000433 | 垫圈GB97.1-10flZnyc-300HV-480 | Washer | Y | 2 |
| 31 | 4011001342 | 螺栓GB5783-M8*130flZnyc-10.9-480 | Screw | Y | 1 |
| 32 | 4015000440 | 垫圈GB849-8flZnyc-480 | Washer | Y | 1 |
| 33 | 29350011051 | 固定块 | Block | Y | 1 |
| 34 | 29350011061 | 垫片 | Shim | Y | 1 |
| 35 | 4013000394 | 螺母GB889.1-M10flZnyc-8-480 | Nut | Y | 1 |
| 36 | 29350011121 | 垫片 | Shim | Y | 2 |
| 37 | 14402470 | 压缩机 | Compressor | Y | 1 |
