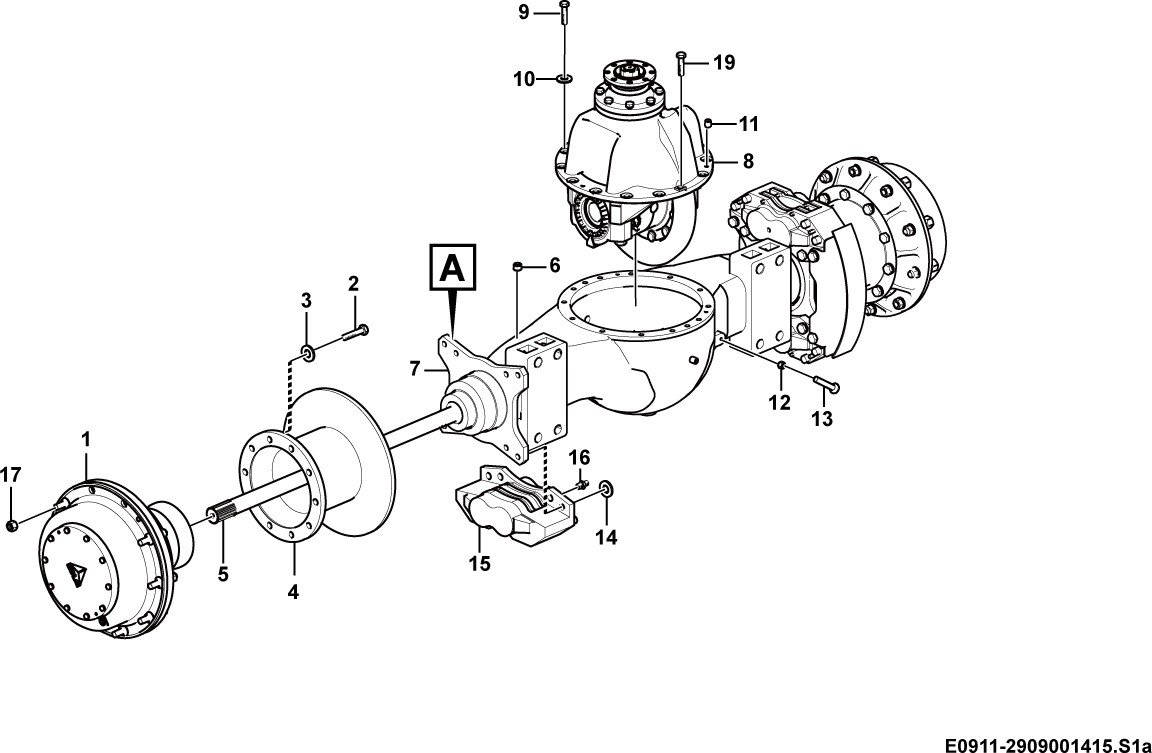

| Key | Part No. | Description | Spare parts Y/N | Qty |
| 1 | 29090013331 | 轮边减速器 Hub reduction | N | 2 |
| 2 | 4011001319 | 螺栓GB5786-M20*1.5*50flZnyc-8.8-480 Screw | Y | 20 |
| 3 | 4015000030 | 垫圈GB93-20-65Mn Spring washer | Y | 20 |
| 4 | 29070001071 | 制动盘 Brake disc | Y | 2 |
| 5 | 29090008481 | 半轴 Shaft half | Y | 2 |
| 6 | 29070021441 | 磁性螺塞 Plug | Y | 2 |
| 7 | 29090013342 | 桥壳总成 Axle casing | Y | 1 |
| 8 | 29090013352 | 主传动总成 Final drive | Y | 1 |
| 9 | 4011001452 | 螺栓GB5786-M16*1.5*45flZnyc-10.9-480 Bolt | Y | 18 |
| 10 | 29070009511 | 垫圈 Washer | Y | 18 |
| 11 | 29050023122 | 销 Pin | Y | 2 |
| 12 | 29070023071 | 透气嘴 Breather cap | Y | 1 |
| 13 | 4013000425 | 螺母GB6173-M10*1flZnyc-05-480 Nut | Y | 1 |
| 14 | 29070021631 | 螺栓 Screw | Y | 16 |
| 15 | 29070011121 | 垫圈 Washer | Y | 16 |
| 16 | 4120002669 | 制动钳 Disc brake | Y | 4 |
| 17 | 4120001740 | 放气嘴 Nipple | Y | 8 |
| 18 | 29070021431 | 轮辋螺母M20 Nut | Y | 20 |
