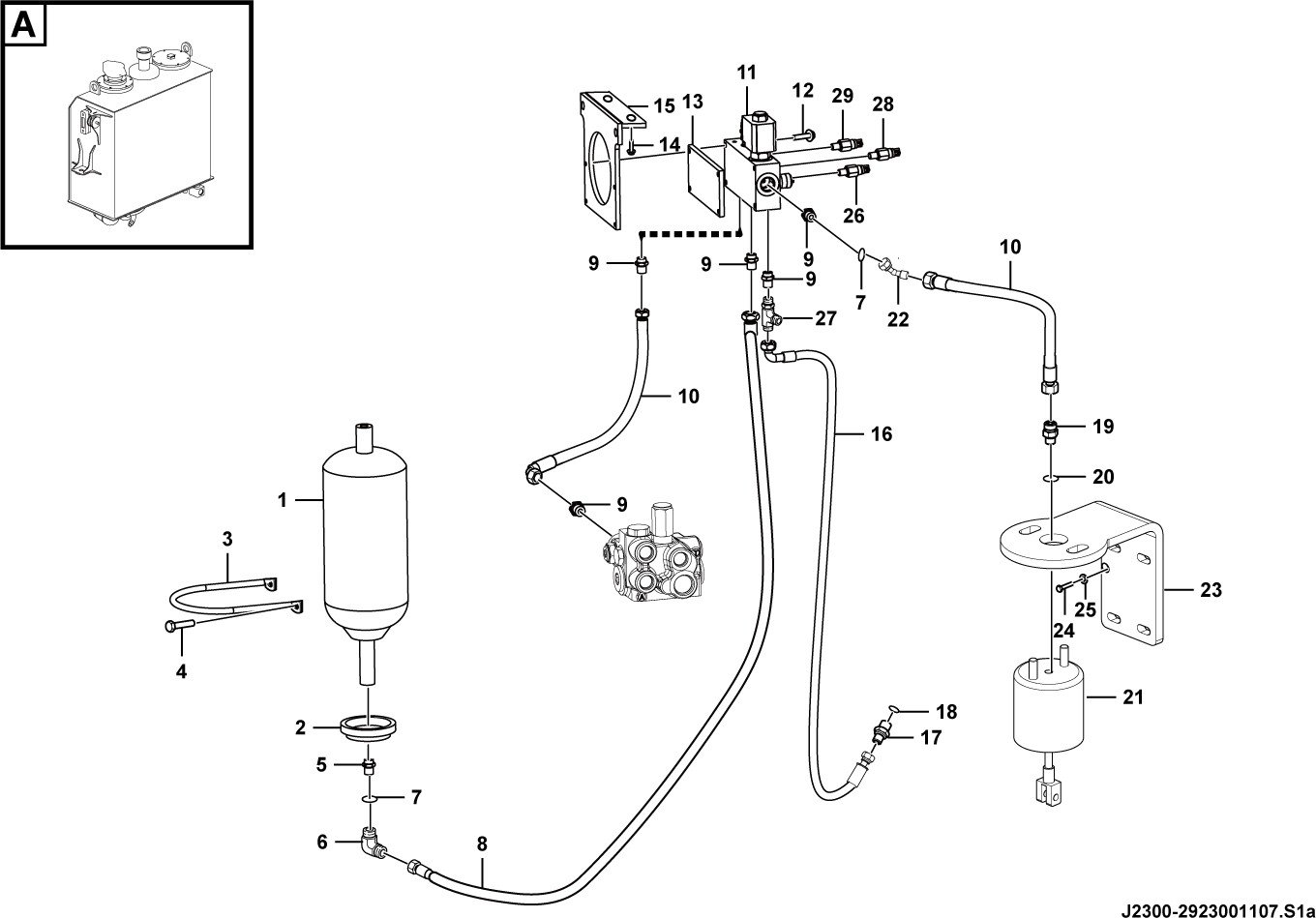

| Key | Part No. | 名称 | Description | Spare parts Y/N | Qty |
| 1 | 4120002705 | 蓄能器PED1-1.0L-31.5 | Accumulator | Y | 1 |
| 2 | 29120017111 | 缓冲套 | Rubber sleeve | Y | 1 |
| 3 | 29230010611 | 蓄能器固定板-114 | Plate | Y | 1 |
| 4 | 4011001297 | 螺栓GB16674.1-M8*16flZnyc-8.8-480 | Screw | Y | 2 |
| 5 | 4120002703 | 接头GE12LR3/4EDOMDA3C | Nipple | Y | 1 |
| 6 | 4041001063 | 组合接头LGB143-01810 | Nipple | Y | 1 |
| 7 | 4030000490 | O形圈GB3452.1-10.0*1.80G | O-ring | Y | 2 |
| 8 | 4041003092 | 软管LGB127-005083 | Hose assembly | N | 1 |
| 9 | 4190000149 | 接头GE12L3/4UNFOMDA3C | Nipple | Y | 5 |
| 10 | 4041001989 | 软管LGB128-005033 | Hose | Y | 2 |
| 11 | 4120004342 | 制动阀快 | Brake valve | Y | 1 |
| 12 | 4011000587 | 螺栓GB16674-M5*45EpZn-8.8 | Screw | Y | 4 |
| 13 | 29230010981 | 固定板 | Plate | Y | 1 |
| 14 | 4011001294 | 螺栓GB16674.1-M10*20flZnyc-8.8-480 | Screw | Y | 2 |
| 15 | 29230008961 | 制动阀块固定板 | Plate | Y | 1 |
| 16 | 4041000152 | 软管LGB125-005120 | Hose assembly | Y | 1 |
| 17 | 4041000766 | 直接头LGB120-01818 | Nipple | Y | 1 |
| 18 | 4041000768 | O形圈LGB168-11524 | O-ring | Y | 1 |
| 19 | 4041003027 | 直接头LGB177-01816-55 | Nipple | Y | 1 |
| 20 | 4041003028 | 矩形圈LGB176-11619 | Ring | Y | 1 |
| 21 | 4120002712 | 液压驻车制动缸 | Cylinder | Y | 1 |
| 22 | 4041001464 | 组合接头LGB143-11810 | Nipple | Y | 1 |
| 23 | 29230010631 | 制动油缸支架 | Bracket | Y | 1 |
| 24 | 4011001250 | 螺栓GB5783-M12*30flZnyc-8.8-480 | Screw | Y | 4 |
| 25 | 4015000428 | 垫圈GB97.1-12flZnyc-300HV-480 | Washer | Y | 4 |
| 26 | 4120004312 | 停车制动低压报警开关 | Pressure switch | Y | 1 |
| 27 | 4190000143 | 三通接头EL12LOMDA3C | Three-way nipple | Y | 1 |
| 28 | 4120004314 | 紧急制动开关 | Pressure switch | Y | 1 |
| 29 | 4120004313 | 行车制动低压报警开关 | Pressure switch | Y | 1 |
