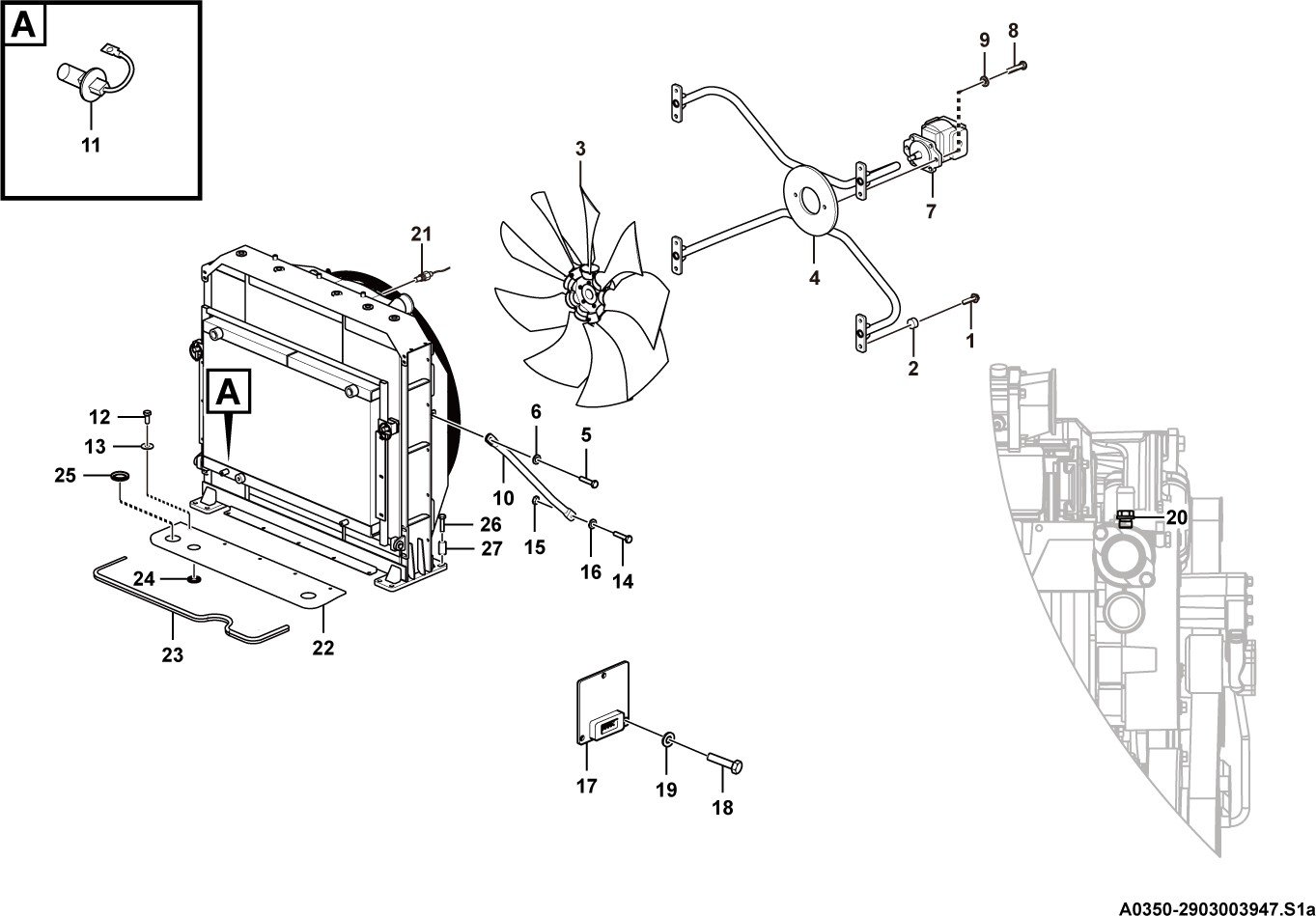

| Key | Part No. | 名称 | Description | Spare parts Y/N | Qty |
| 1 | 4011001262 | 螺栓GB5782-M10*55flZnyc-8.8-480 | Bolt | Y | 8 |
| 2 | 4043002603 | 防松套LGB331-10*20*16flZnyc-45 | Attaching sleeve | Y | 8 |
| 3 | 4110003752 | 风扇930/16- | Fan | Y | 1 |
| 4 | 29030039481 | 马达支架 | Bracket | Y | 1 |
| 5 | 4011001249 | 螺栓GB5783-M10*30flZnyc-8.8-480 | Screw | Y | 2 |
| 6 | 4015000426 | 垫圈GB96.1-10flZnyc-300HV-480 | Washer | Y | 4 |
| 7 | 4120007903 | 齿轮马达PGM620A037 | Pump rotor | Y | 1 |
| 8 | 4011001208 | 螺栓GB5783-M12*30flZnyc-10.9-480 | Screw | Y | 2 |
| 9 | 4015000428 | 垫圈GB97.1-12flZnyc-300HV-480 | Washer | Y | 2 |
| 10 | 29030039501 | 拉杆800 | Link rod | Y | 2 |
| 11 | 4120002637 | 水温传感器 | Temperature sensor | Y | 1 |
| 12 | 4011001246 | 螺栓GB5783-M8*16flZnyc-8.8-480 | Screw | Y | 5 |
| 13 | 4015000425 | 垫圈GB96.1-8flZnyc-300HV-480 | Washer | Y | 5 |
| 14 | 4011001280 | 螺栓GB5783-M10*40flZnyc-8.8-480 | Screw | Y | 2 |
| 15 | 4013000394 | 螺母GB889.1-M10flZnyc-8-480 | Nut | Y | 2 |
| 16 | 4015000433 | 垫圈GB97.1-10flZnyc-300HV-480 | Washer | Y | 2 |
| 17 | 4130002606 | 控制器CM0711 | Control unit | Y | 1 |
| 18 | 4011001533 | 螺栓GB5783-M6*30flZnyc-8.8-480 | Bolt | Y | 2 |
| 19 | 4015000424 | 垫圈GB97.1-6flZnyc-300HV-480 | Washer | Y | 2 |
| 20 | 4030000545 | 螺塞JB1000-M16*1.5EpZn-35 | Plug | Y | 1 |
| 21 | 4120002638 | 中冷器温度传感器 | Temperature sensor | Y | 1 |
| 22 | 29030039511 | 后封板 | Cover | Y | 1 |
| 23 | 4043000957 | 卡子胶条LGB320-S1300 | Sealing strip | Y | 1 |
| 24 | 29330031081 | 橡胶套D50 | Rubber sleeve | Y | 1 |
| 25 | 4043000825 | 护套LGB313-6*50 | Rubber sleeve | Y | 2 |
| 26 | 4011001429 | 螺栓GB5782-M16*70flZnyc-10.9-480 | Hexagon screw | Y | 8 |
| 27 | 4043003437 | 防松套LGB331-16*30*30flZnyc-45 | Attaching sleeve | Y | 8 |
