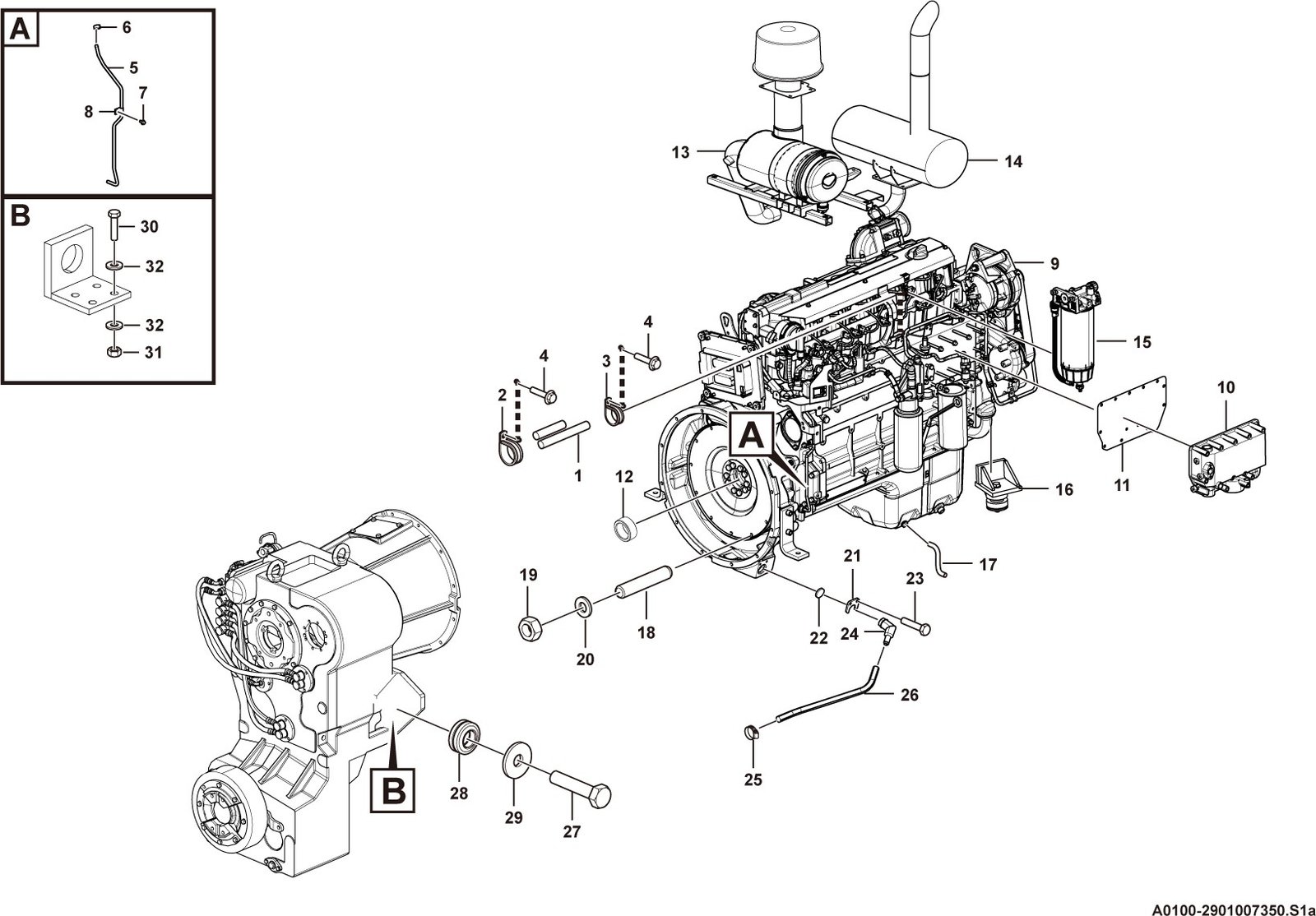

LG958F Diesel engine system Engine asembly

Key	Part No.	名称	Description	Spare parts Y/N	Qty
1	29010051701	暖风管路安装	Hose	N	1
2	4041002386	管夹LGB169-B25*12.5	Clamp	Y	3
3	4041002384	管夹LGB169-A25*12.5	Clamp	Y	1
4	4011001297	螺栓GB16674.1-M8*16flZnyc-8.8-480	Screw	Y	4
5	29010041971	胶管	Hose	Y	1
6	4017000011	喉箍JB8870-d32	Clamp	Y	1
7	4011001302	螺栓GB16674.1-M10*16flZnyc-8.8-480	Screw	Y	1
8	4041002382	管夹LGB169-A30*12.5	Clamp	Y	1
9	11219862	发动机	Engine	Y	1
10	29010075861	盖板	Cover plate	N	1
11	29010075871	密封垫	Gasket	N	1
12	29010062951	钢套	Bushing	Y	1
13	29010073511	进气系统	Assembly compound	N	1
14	29010073521	排气系统	Assembly compound	N	1
15	29010073531	燃油供给系统	Assembly compound	N	1
16	29010051661	发动机安装	Assembly compound	N	1
17	29010066071	机油放油模块	Oil drain	N	1
18	29010009851	双头螺栓	Stud	Y	12
19	4013000370	螺母GB6170-M10flZnyc-8-480	Nut	Y	12
20	4015000433	垫圈GB97.1-10flZnyc-300HV-480	Washer	Y	12
21	29050020681	锁紧板	Lock plate	Y	1
22	29050020691	密封环	Sealing ring	Y	1
23	4011001246	螺栓GB5783-M8*16flZnyc-8.8-480	Screw	Y	2
24	29010062151	回油接头	Nipple	Y	1
25	4017000024	环箍QC390-D26	Clamp	Y	2
26	4030001061	胶管JB8406-B16*380	Hose	Y	1
27	4011001211	螺栓GB5783-M20*40flZnyc-10.9-480	Screw	Y	2
28	4110000943	减震器总成	Absorber	Y	2
29	29050017851	垫圈	Washer	Y	2
30	4011001351	螺栓GB5785-M181.575flZnyc-10.9-480	Bolt	N	8
31	4013000396	螺母GB889.2-M18*1.5flZnyc-10-480	Nut	Y	8
32	4015000441	垫圈GB97.1-18flZnyc-300HV-480	Washer	N	16
