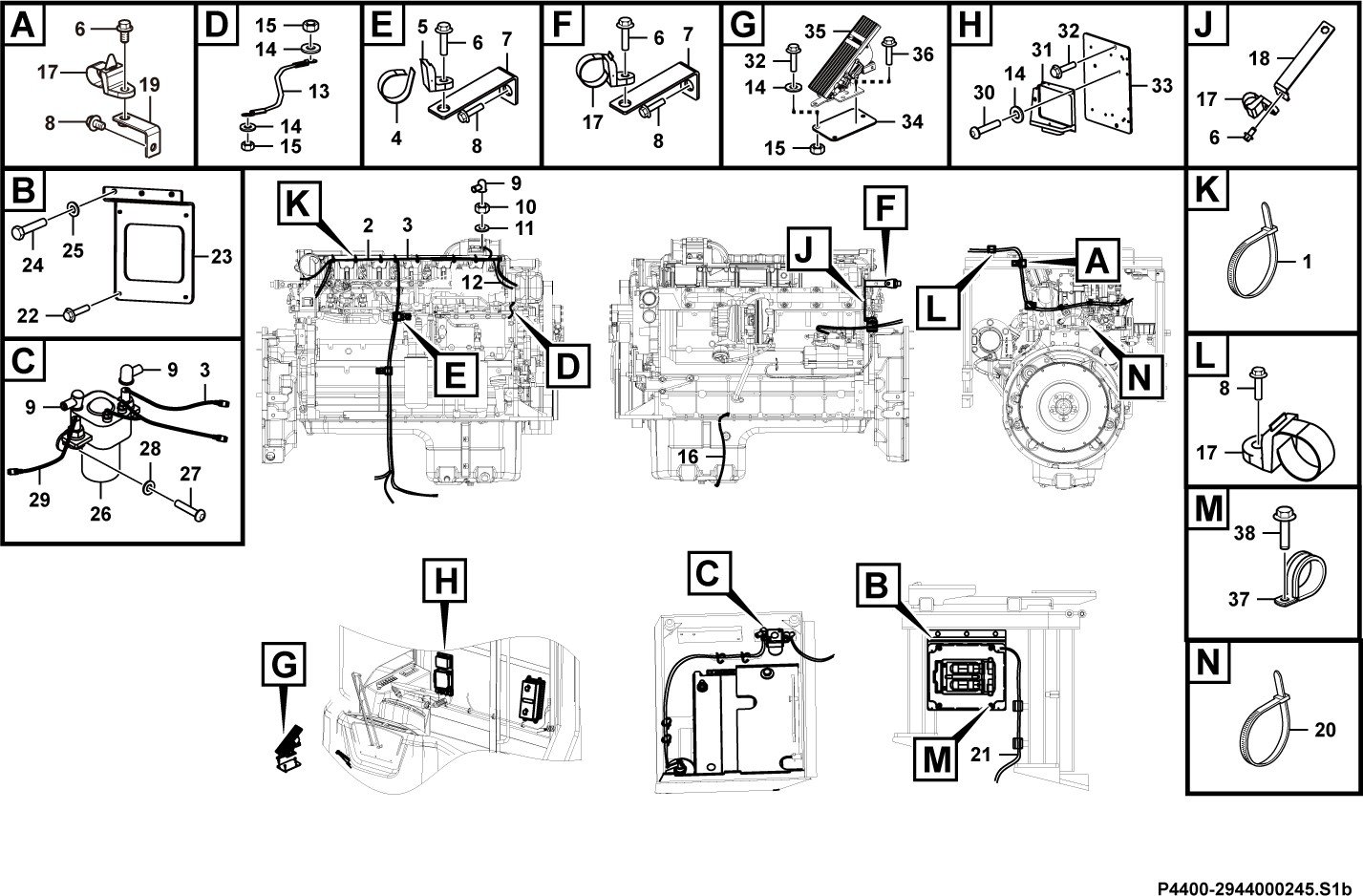

LG958F Electric system Engine electric system

Key	Part No.	名称	Description	Spare parts Y/N	Qty
1	4190001839	扎丝LG13-ZS4*160	Cable tie	Y	20
2	29440002311	发动机线束	Wiring harness	N	1
3	4045000131	电瓶线LGB340-25*3150P1L8L8-3L1	Battery cable	N	1
4	14400341	扎带	Strip clamp	Y	2
5	14400340	扎带座	Strip clamp	Y	2
6	4011001294	螺栓GB16674.1-M10*20flZnyc-8.8-480	Screw	Y	4
7	26370001072	支架	Bracket	Y	2
8	4011001297	螺栓GB16674.1-M8*16flZnyc-8.8-480	Screw	Y	11
9	26370002431	红电瓶线护套	Cable sleeve	Y	4
10	4013000373	螺母GB6170-M8flZnyc-8-480	Nut	Y	3
11	4015000430	垫圈GB97.1-8flZnyc-300HV-480	Washer	Y	2
12	4045000133	电瓶线LGB340-20*2250P1L8L8-3L1	Battery cable	N	1
13	11210840	线束	Cable	Y	1
14	4015000424	垫圈GB97.1-6flZnyc-300HV-480	Washer	Y	12
15	4013000372	螺母GB6170-M6flZnyc-8-480	Nut	Y	5
16	4045000032	电瓶线LGB340-50*450P1L10L10-4	Battery cable	Y	1
17	14400342	扎带	Strip clamp	Y	5
18	29440002441	支架	Bracket	N	1
19	26370001172	支架	Bracket	Y	1
20	4190000055	扎丝LG13-ZS4*350	Cable tie	Y	3
21	4045000130	电瓶线LGB340-15*550P1L8L10-1L1	Battery cable	N	1
22	4011001277	螺栓GB16674.1-M8*35flZnyc-8.8-480	Screw	Y	4
23	29440000541	固定板	Bracket	Y	1
24	4011001250	螺栓GB5783-M12*30flZnyc-8.8-480	Screw	Y	3
25	4015000428	垫圈GB97.1-12flZnyc-300HV-480	Washer	Y	3
26	4130001988	接触器JCC200/1C24·48A	Relay	Y	1
27	4014000515	螺钉GB818-M5*10flZnyc-4.8-480	Screw	Y	2
28	4015000431	垫圈GB97.1-5flZnyc-300HV-480	Washer	Y	2
29	29370028651	150A预热线束	Wiring harness	N	1
30	4014000512	螺钉GB818-M6*12flZnyc-4.8-480	Screw	Y	4
31	4130002003	HMIM11383485	Connector	Y	1
32	4011001275	螺栓GB16674.1-M6*16flZnyc-8.8-480	Screw	Y	6
33	29430005931	固定板	Plate	N	1
34	29440000161	过渡板	Plate	Y	1
35	4130002013	电子油门踏板WL402067	Accelerator pedal	Y	1
36	4011001276	螺栓GB16674.1-M6*20flZnyc-8.8-480	Screw	Y	4
37	11214766	管夹	Clamp	N	2
38	4011001296	螺栓GB16674.1-M8*20flZnyc-8.8-480	Screw	Y	2
