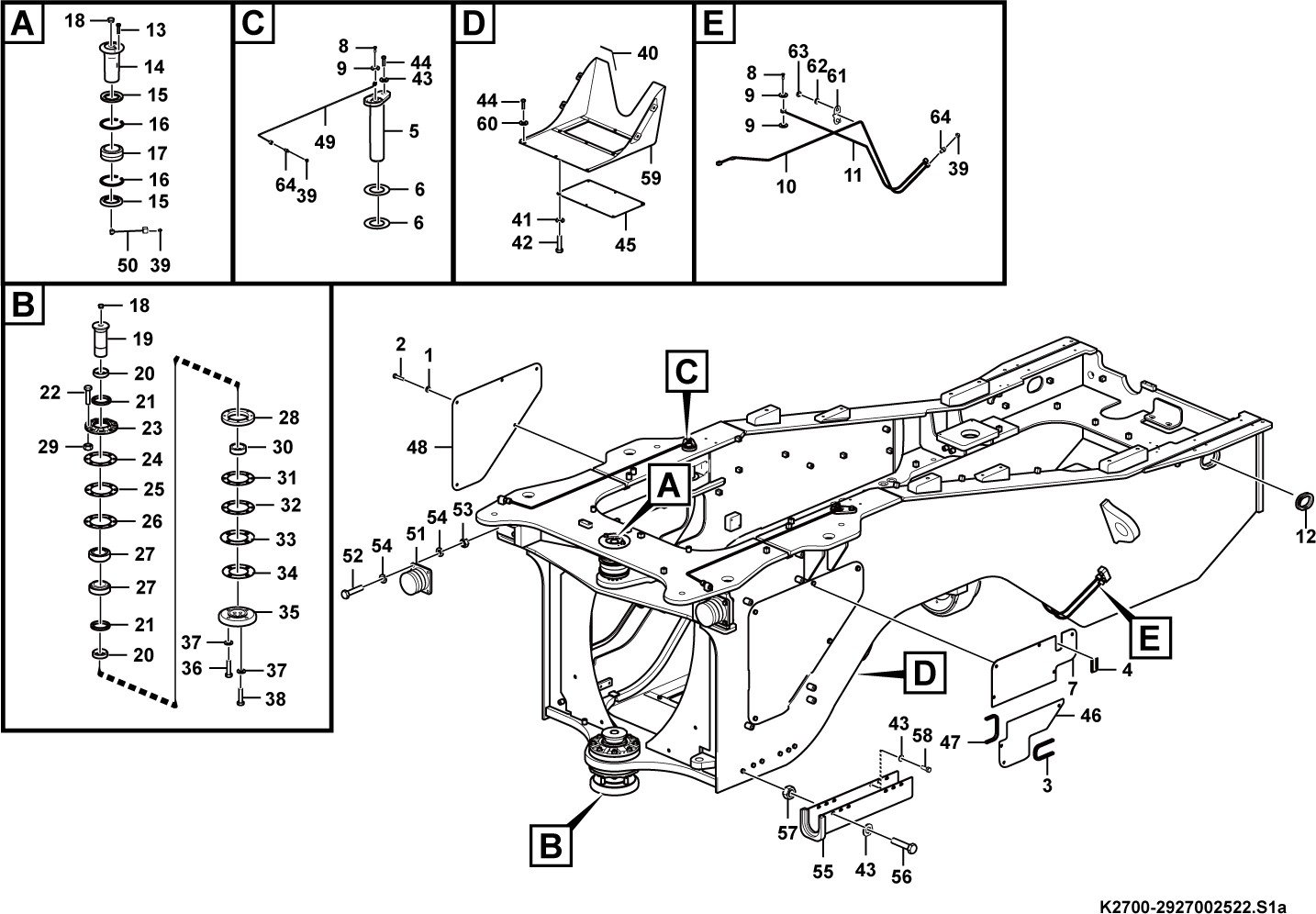

LG958F Frame Accessories

Key	Part No.	名称	Description	Spare parts Y/N	Qty
1	4015000426	垫圈GB96.1-10flZnyc-300HV-480	Washer	Y	15
2	4011001248	螺栓GB5783-M10*25flZnyc-8.8-480	Screw	Y	15
3	4043000948	卡子胶条LGB320-U210	Sealing strip	Y	1
4	4043001028	卡子胶条LGB320-U170	Sealing strip	Y	1
5	29270010271	转向销轴	Pin	Y	2
6	4043000374	垫片LGB303-45801	Shim	Y	4
7	29270022882	盖板	Plate	N	1
8	29250000291	通油螺栓	Bolt	Y	5
9	29250000301	垫片	Shim	Y	15
10	29270025251	前润滑油管	Lubricating pipe	Y	1
11	29270025271	后润滑油管	Lubricating pipe	Y	1
12	29270009101	走线胶套	Rubber sleeve	Y	2
13	4011001299	螺栓GB16674.1-M10*25flZnyc-8.8-480	Screw	Y	2
14	29270010071	上铰接销	Pin	Y	1
15	29270010081	防尘圈	Sealing ring	Y	2
16	4015000270	挡圈GB893.1-120-65Mn	Retaining ring	Y	2
17	4021000243	关节轴承GB9163-GE80ES	Spherical plain bearing	Y	1
18	29270009421	塑料塞	Plastic plug	Y	2
19	29270010881	下铰接销	Pin	Y	1
20	29270010131	套	Bushing	Y	2
21	4030000260	旋转轴唇形密封圈GB9877.1-B10012512	Sealing ring	Y	2
22	4011001316	螺栓GB16674.1-M12*120flZnyc-8.8-480	Screw	Y	8
23	29270010181	盘	Flange	Y	1
24	29270010151	垫片	Shim	Y	2
25	29270010161	垫片	Shim	Y	1
26	29270010171	垫片	Shim	Y	1
27	4021000244	滚动轴承GB297-33216	Roller bearing	Y	2
28	29270010141	盘	Flange	Y	1
29	4013000385	螺母GB6177.1-M12flZnyc-10-480	Nut	Y	8
30	29270010891	套	Grommet	Y	1
31	29270010221	垫片	Shim	Y	1
32	29270010231	垫片	Shim	Y	1
33	29270010241	垫片	Shim	Y	1
34	29270010251	垫片	Shim	Y	1
35	29270010261	盘	Flange	Y	1
36	4011001328	螺栓GB5783-M16*50flZnyc-8.8-480	Screw	Y	4
37	4015000436	垫圈GB97.1-16flZnyc-300HV-480	Washer	Y	8
38	4011001267	螺栓GB5782-M16*90flZnyc-8.8-480	Screw	Y	4
39	4030000065	油杯JB7940.1-M10*1	Lubricating nipple	Y	6
40	4043001246	卡子胶条LGB320-U220	Sealing strip	Y	2
41	4015000425	垫圈GB96.1-8flZnyc-300HV-480	Washer	Y	6
42	4011001247	螺栓GB5783-M8*20flZnyc-8.8-480	Screw	Y	6
43	4015000428	垫圈GB97.1-12flZnyc-300HV-480	Washer	Y	12
44	4011001241	螺栓GB5783-M12*25flZnyc-8.8-480	Screw	Y	9
45	29270022861	盖板	Plate	Y	1
46	29270021981	板	Plate	Y	1
47	4043000987	卡子胶条LGB320-U250	Sealing strip	Y	2
48	29270022851	右盖板	Plate	Y	1
49	29270025231	转向润滑油管	Lubricating pipe	Y	2
50	29270014461	油管	Lubricating pipe	Y	1
51	4190001829	缓冲器	Absorber	Y	2
52	4011001304	螺栓GB5783-M10*45flZnyc-8.8-480	Screw	Y	8
53	4013000370	螺母GB6170-M10flZnyc-8-480	Nut	Y	8
54	4015000433	垫圈GB97.1-10flZnyc-300HV-480	Washer	Y	16
55	29270021991	支撑板	Bracket	Y	1
56	4011001329	螺栓GB5782-M12*150flZnyc-8.8-480	Screw	Y	4
57	4013000368	螺母GB6170-M12flZnyc-8-480	Nut	Y	4
58	4011001250	螺栓GB5783-M12*30flZnyc-8.8-480	Screw	Y	2
59	29270022871	护板	Plate	Y	1
60	4015000427	垫圈GB96.1-12flZnyc-300HV-480	Washer	Y	7
61	29250000311	管夹	Clamp	Y	1
62	4015000035	垫圈GB93-6-65Mn	Spring washer	Y	2
63	4014000510	螺钉GB818-M6*10flZnyc-4.8-480	Screw	Y	2
64	29250014121	接头	Nipple	Y	5
