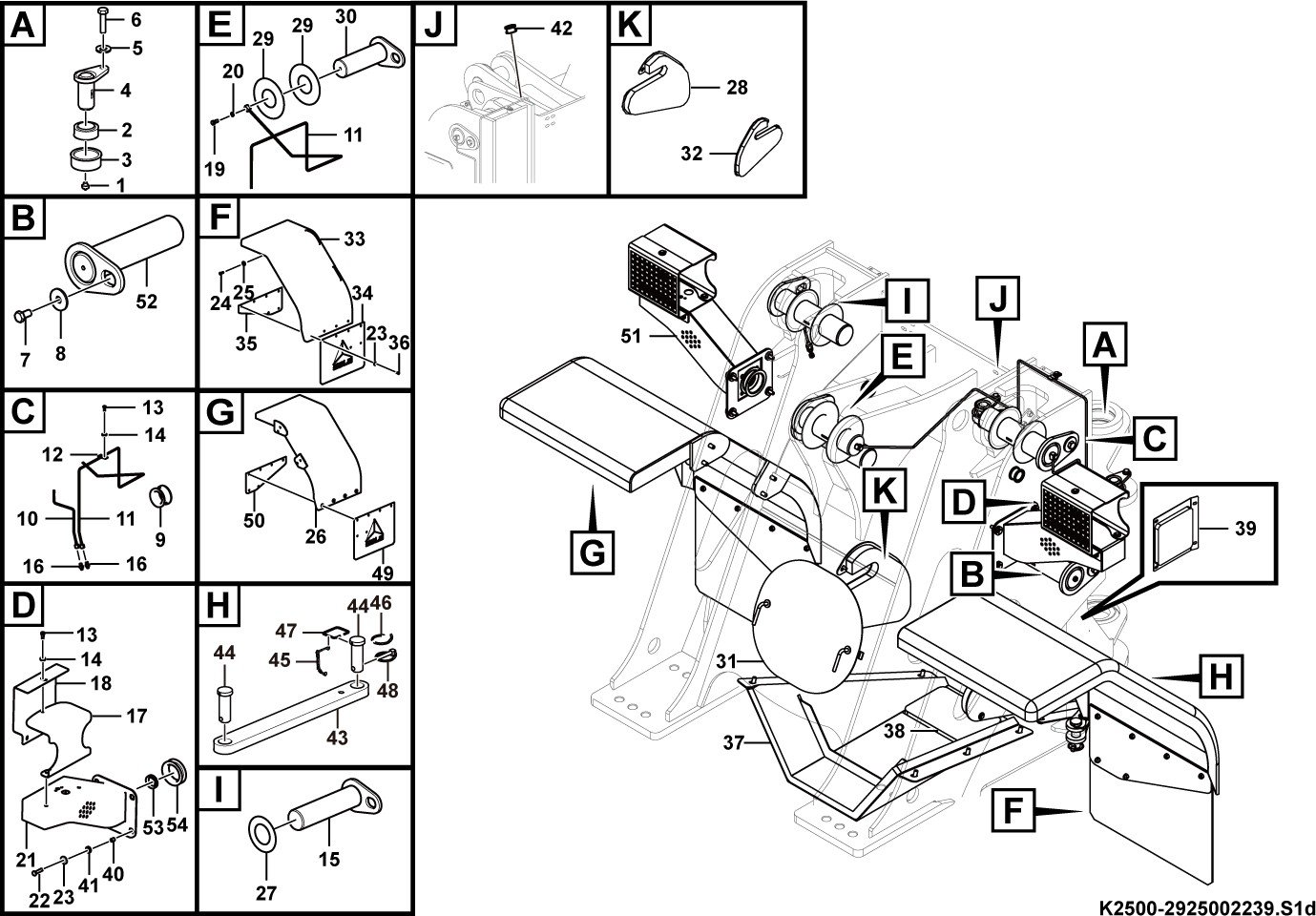

| Key |
Part No. |
名称 |
Description |
Spare parts Y/N |
Qty |
| 1 |
4030000065 |
油杯JB7940.1-M10*1 |
Lubricating nipple |
Y |
7 |
| 2 |
4021000199 |
轴承GB9163-GE40ES |
Spherical plain bearing |
Y |
2 |
| 3 |
29250010191 |
转向轴套 |
Sleeve |
Y |
2 |
| 4 |
29250010171 |
转向销轴 |
Pin |
Y |
2 |
| 5 |
4015000428 |
垫圈GB97.1-12flZnyc-300HV-480 |
Washer |
Y |
2 |
| 6 |
4011001241 |
螺栓GB5783-M12*25flZnyc-8.8-480 |
Screw |
Y |
12 |
| 7 |
4011001261 |
螺栓GB5783-M16*30flZnyc-8.8-480 |
Screw |
Y |
5 |
| 8 |
4040000051 |
垫圈LGB001-16flZnyc-480 |
Washer |
Y |
5 |
| 9 |
4043001362 |
护套LGB313-20*32 |
Rubber sleeve |
Y |
2 |
| 10 |
29250014081 |
动臂销轴润滑油管 |
Lubricating pipe |
Y |
2 |
| 11 |
29250014701 |
转斗销轴润滑油管 |
Lubricating pipe |
Y |
1 |
| 12 |
29250013741 |
压板 |
Plate |
Y |
2 |
| 13 |
4011001247 |
螺栓GB5783-M8*20flZnyc-8.8-480 |
Screw |
Y |
23 |
| 14 |
4015000425 |
垫圈GB96.1-8flZnyc-300HV-480 |
Washer |
Y |
23 |
| 15 |
4043003983 |
销轴LGB301-95*170N*320-2200G |
Weld pin |
Y |
2 |
| 16 |
29250014121 |
接头 |
Nipple |
Y |
3 |
| 17 |
29250012661 |
照灯护板 |
Protecting plate |
Y |
2 |
| 18 |
29250011021 |
照灯网板 |
Protecting plate |
Y |
2 |
| 19 |
29250000291 |
通油螺栓 |
Bolt |
Y |
3 |
| 20 |
29250000301 |
垫片 |
Shim |
Y |
9 |
| 21 |
29250018221 |
左灯架 |
Lamp bracket |
Y |
1 |
| 22 |
4011001280 |
螺栓GB5783-M10*40flZnyc-8.8-480 |
Screw |
Y |
8 |
| 23 |
4015000426 |
垫圈GB96.1-10flZnyc-300HV-480 |
Washer |
Y |
20 |
| 24 |
4011001243 |
螺栓GB5783-M12*35flZnyc-8.8-480 |
Screw |
Y |
8 |
| 25 |
4015000427 |
垫圈GB96.1-12flZnyc-300HV-480 |
Washer |
Y |
18 |
| 26 |
29250013241 |
挡泥瓦 |
Front fender |
N |
1 |
| 27 |
4043000037 |
垫片LGB303-95*150*1 |
Shim |
Y |
4 |
| 28 |
29250021901 |
侧盖板 |
Cover plate |
Y |
1 |
| 29 |
4043000533 |
垫片LGB303-80*180*1 |
Shim |
Y |
2 |
| 30 |
4043001455 |
销轴LGB301-80*140NR*260-1000G |
Weld pin |
Y |
1 |
| 31 |
29250010281 |
前盖板总成 |
Cover plate |
Y |
1 |
| 32 |
29250021881 |
侧盖板 |
Cover plate |
Y |
1 |
| 33 |
29250013221 |
挡泥瓦 |
Front fender |
N |
1 |
| 34 |
29250010051 |
橡胶板 |
Plate |
Y |
1 |
| 35 |
29250013231 |
衬板 |
Nut plate |
Y |
1 |
| 36 |
4011001248 |
螺栓GB5783-M10*25flZnyc-8.8-480 |
Screw |
Y |
12 |
| 37 |
29250021921 |
护板 |
Protecting plate |
Y |
1 |
| 38 |
29250021941 |
盖板 |
Cover plate |
Y |
1 |
| 39 |
29250021961 |
盖板 |
Cover plate |
Y |
1 |
| 40 |
11220539 |
钢管 |
Steel pipe |
Y |
8 |
| 41 |
11220538 |
减震垫 |
Damper mat |
Y |
16 |
| 42 |
29250013711 |
走线胶套 |
Rubber sleeve |
Y |
1 |
| 43 |
29250010091 |
锁定杆 |
Rod |
Y |
1 |
| 44 |
29250010121 |
锁定销轴 |
Pin |
Y |
2 |
| 45 |
29250020601 |
链条 |
Chain |
Y |
1 |
| 46 |
29250020611 |
链条环 |
Ring |
Y |
2 |
| 47 |
29280010021 |
挂钩 |
Tensioning hook |
Y |
1 |
| 48 |
29270000081 |
卡环 |
Lock ring |
Y |
2 |
| 49 |
29250010081 |
橡胶板 |
Rubber plate |
Y |
1 |
| 50 |
29250013251 |
衬板 |
Nut plate |
Y |
1 |
| 51 |
29250018241 |
右灯架 |
Lamp bracket |
Y |
1 |
| 52 |
4043002663 |
销轴LGB301-80*170*320-2A10G |
Weld pin |
Y |
2 |
| 53 |
29250012911 |
走线胶套 |
Rubber sleeve |
Y |
2 |
| 54 |
29250013211 |
走线胶套 |
Rubber sleeve |
Y |
2 |
